System Introduction
Axial fans are used in parking ventilation systems to remove polluted air generated in the environment or fire smoke
during a fire, to provide fresh air needed by the parking lot if necessary.

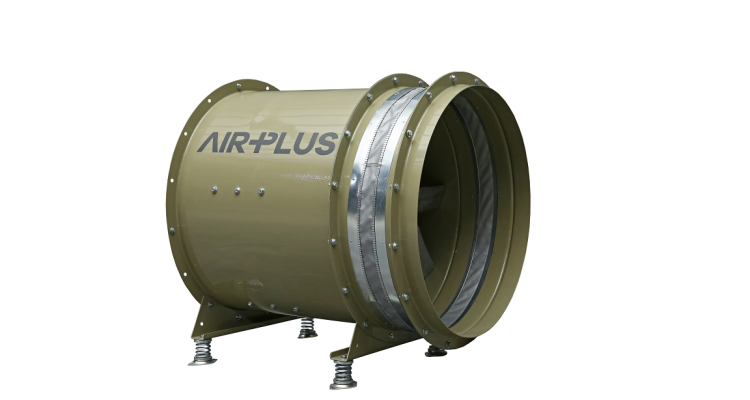

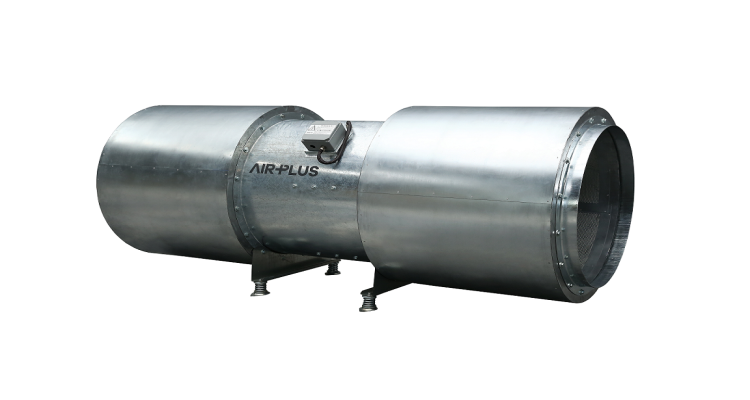

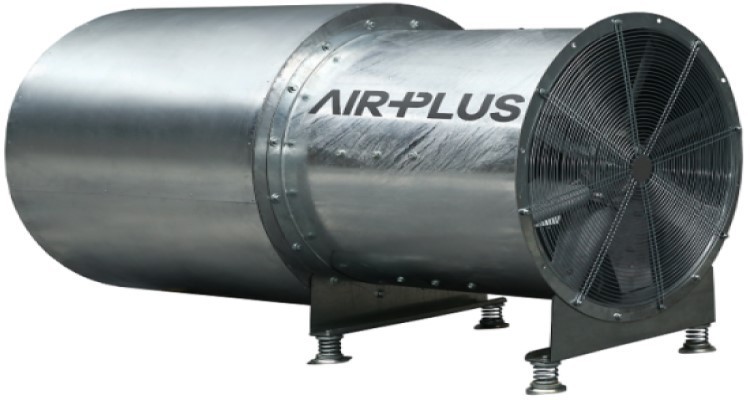

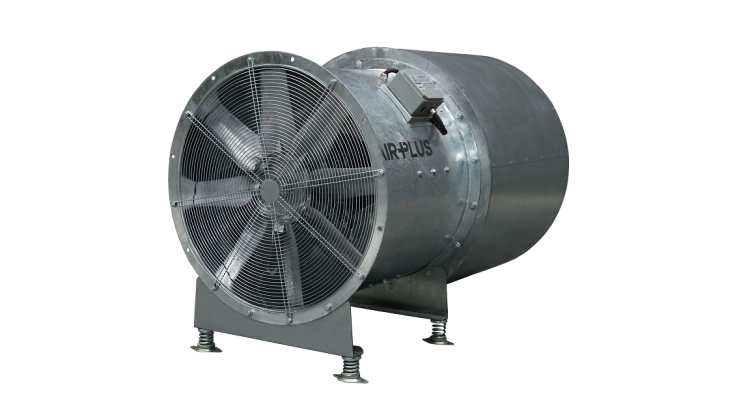

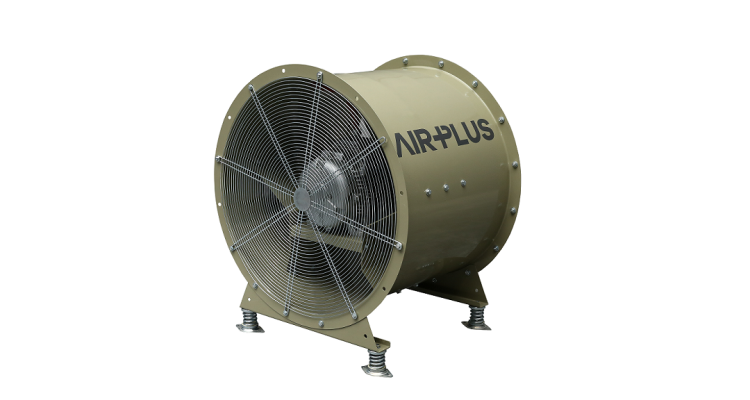

Design Criteria of AIRPLUS Axial Fans
Thanks to the aerodynamic wing structures designed by the AIRPLUS R&D Team, high-efficiency AIRPLUS Axial Fans with low energy consumption fully meet the design criteria needed for parking lot ventilation.
It has the ability to mount the fan blades at different angles with its design, it can be provided to operate at wide flow and pressure ranges with the same diameter ranges.
AIRPLUS Axial Fans consist of four main components;
- Wings
- Front Body
- Rear Body
- Shaft
Fan Cell;
AIRPLUS Axial Fans are manufactured with cells as standard it is provided. The cell body made of Aluzinc sheet metal provides structurally high strength and high resistance to corrosion.
Fan;
The fan hub and wings are made of cast aluminum it is provided. The entire system is designed according to EN12101-3 and it is suitable for working for 2 hours at a temperature of 300 ºC.
Isolation;
Sound insulation is provided by using 70 kg/m3 density rock wool between the body and the fan sleeve.
Cell legs;
They are produced from hot dipped galvanized steel as standard. The fan has special transport cavities for horizontal
and vertical transport on the construction site.
Fan Sleeve;
It is produced from hot dip galvanised steel. It provides low sound level values thanks to its hollow structure on its surface.
The motor;
It has SO-H insulation class and is in IP 55 protection class. The terminal blocks used for power connection are made of ceramic material. The electricity supply is 380V/50Hz/3 phase.
