High efficiency and complete safety in car park ventilation.

As a key component of car park ventilation systems, it ensures the rapid extraction of polluted air and, in the event of fire, smoke from the area.

With its aerodynamic blade design, the fan delivers high airflow capacity with low energy consumption, and when required, supplies fresh air to improve overall indoor air quality. Compliant with the EN12101-3 standard, it is designed to operate continuously at 300°C for 2 hours, ensuring superior fire safety performance.

Additional Features

Ergonomic Design

Easy Installation & Compact Structure

Easy Maintenance & Service Access

High Sealing Performance & Durable Housing

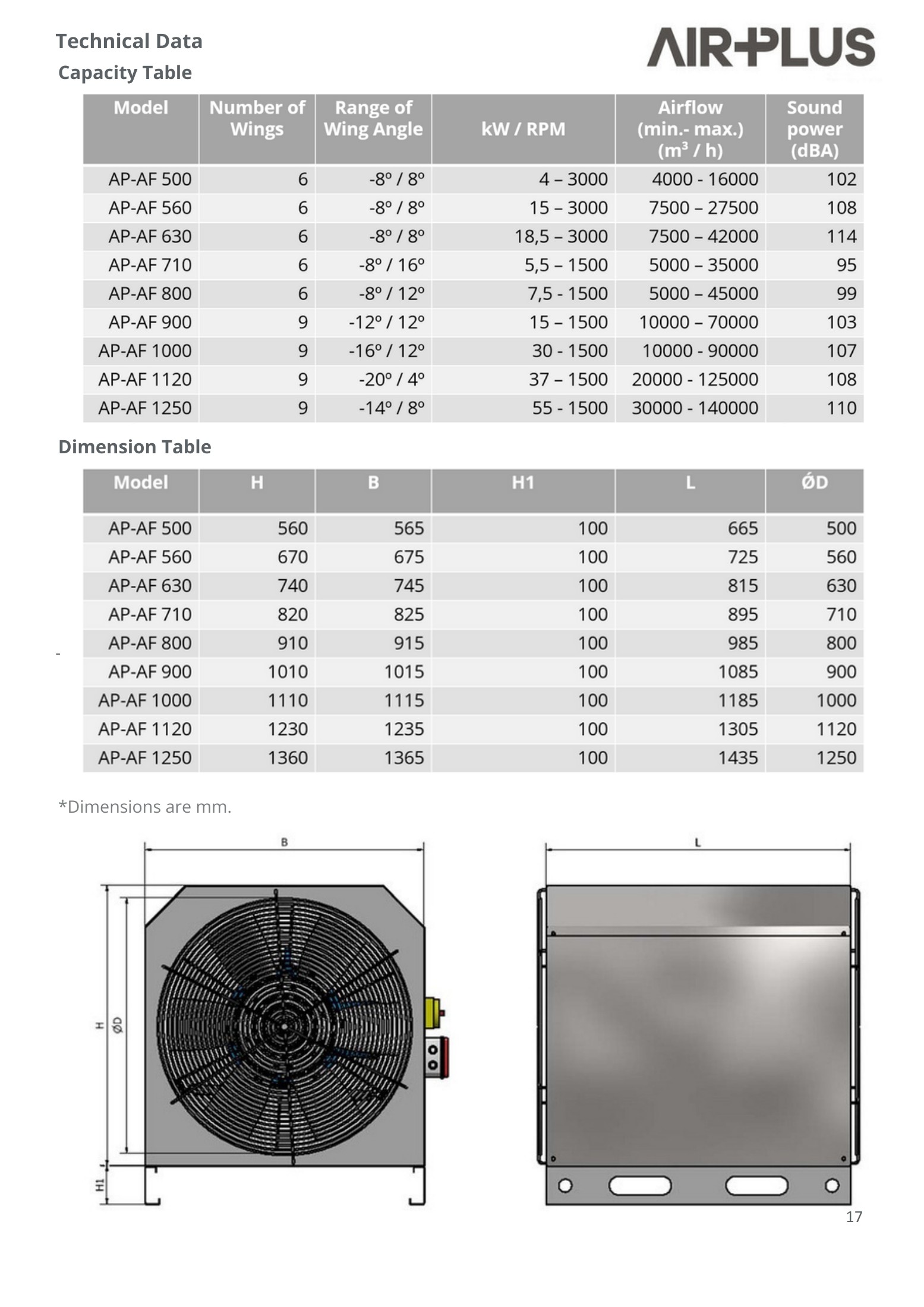

Technical data — Models and specifications

Models and technical data

AP-AF capacity ranges
Model	Airflow range (m³/h)	Sound power (dBA)

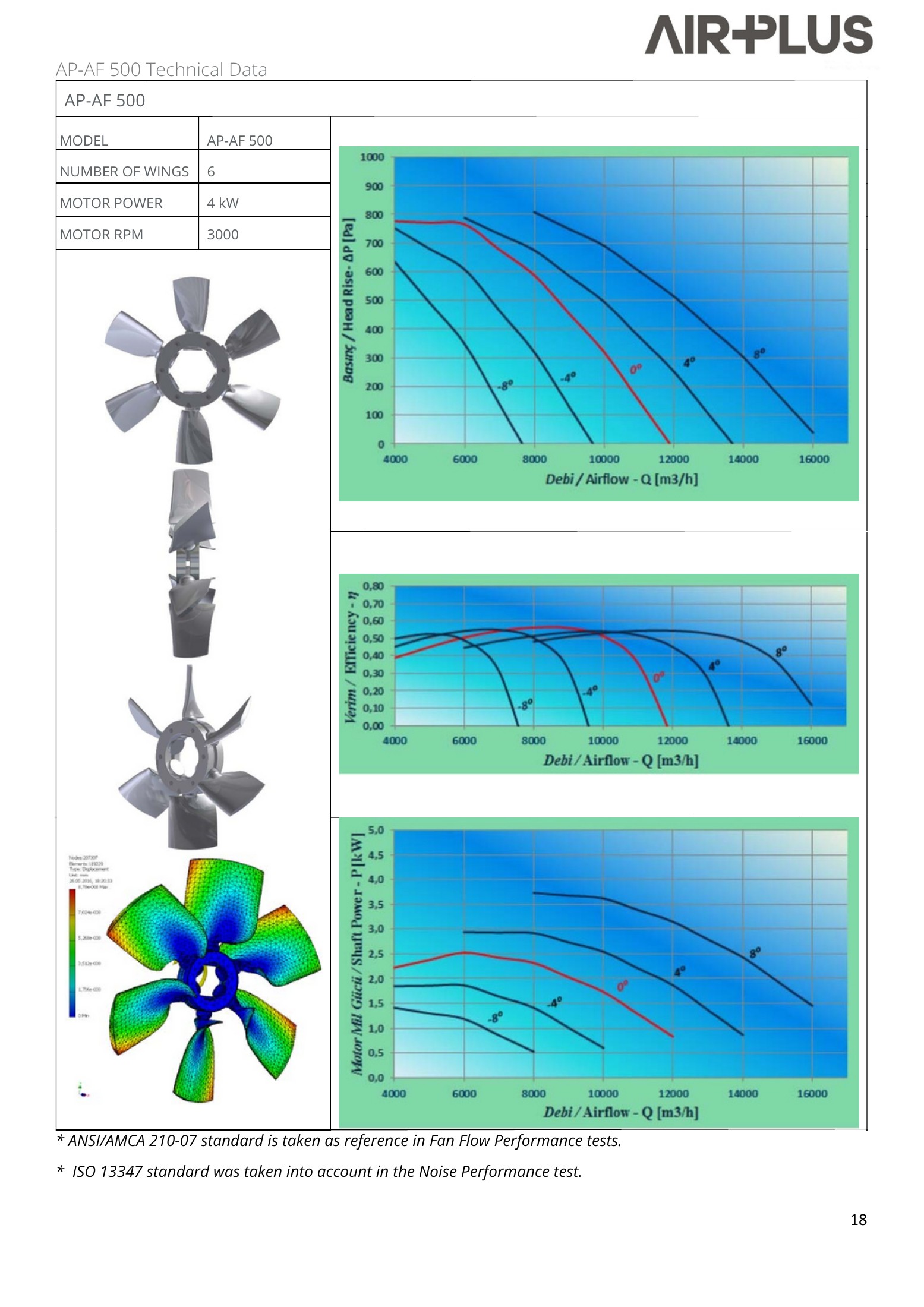

AP-AF 500	4000–16000	102

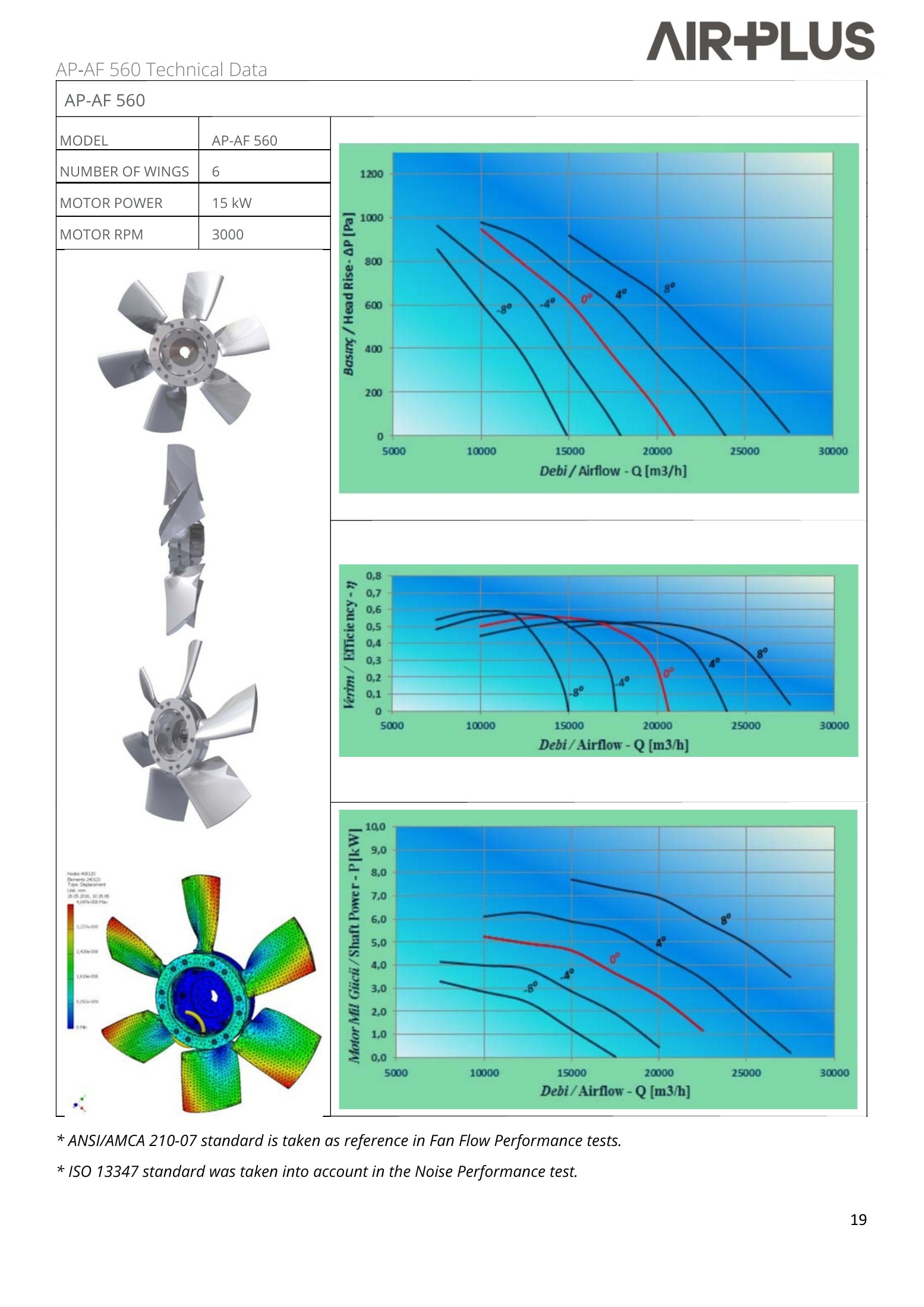

AP-AF 560	7500–27500	108

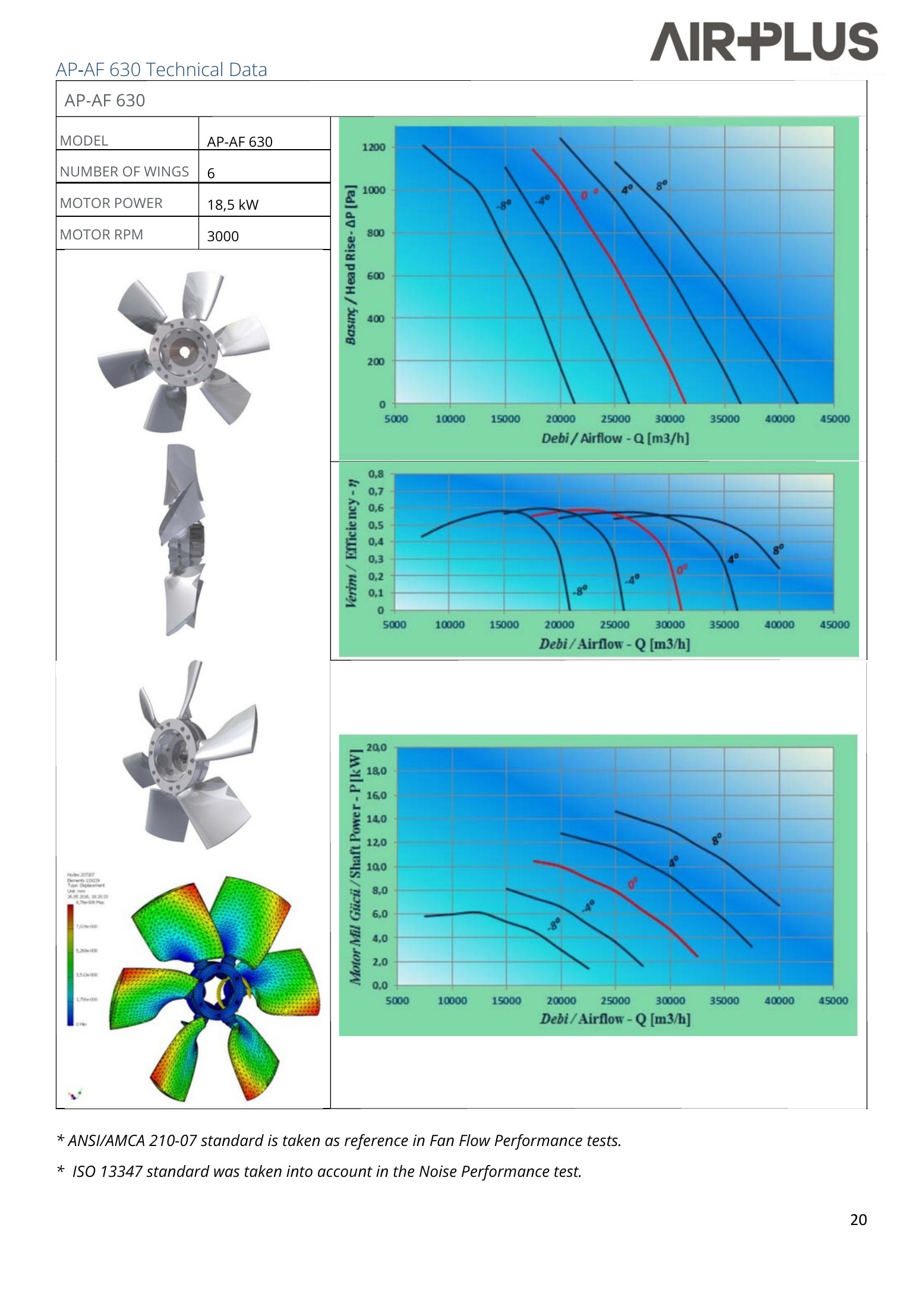

AP-AF 630	7500–42000	114

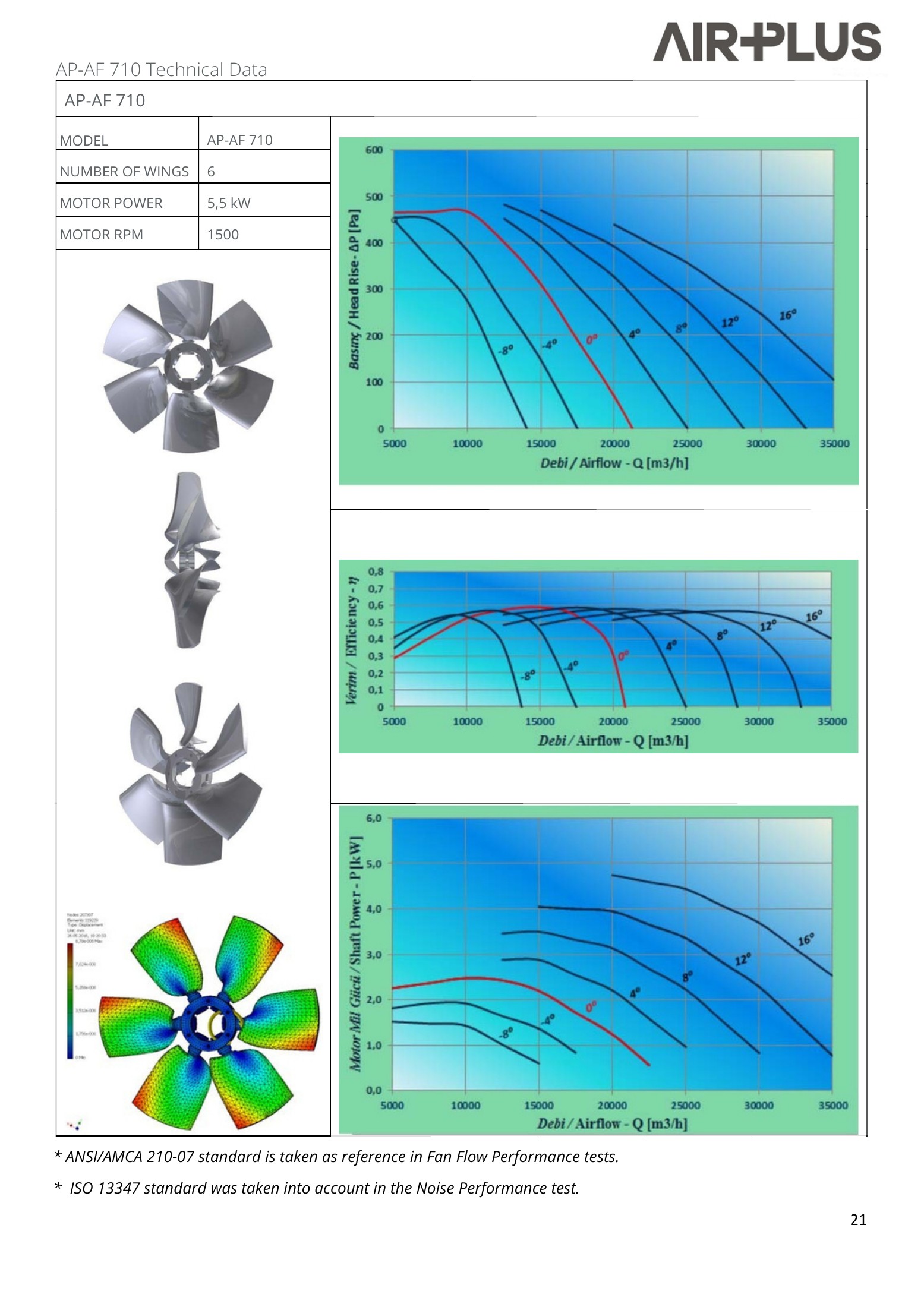

AP-AF 710	5000–35000	95

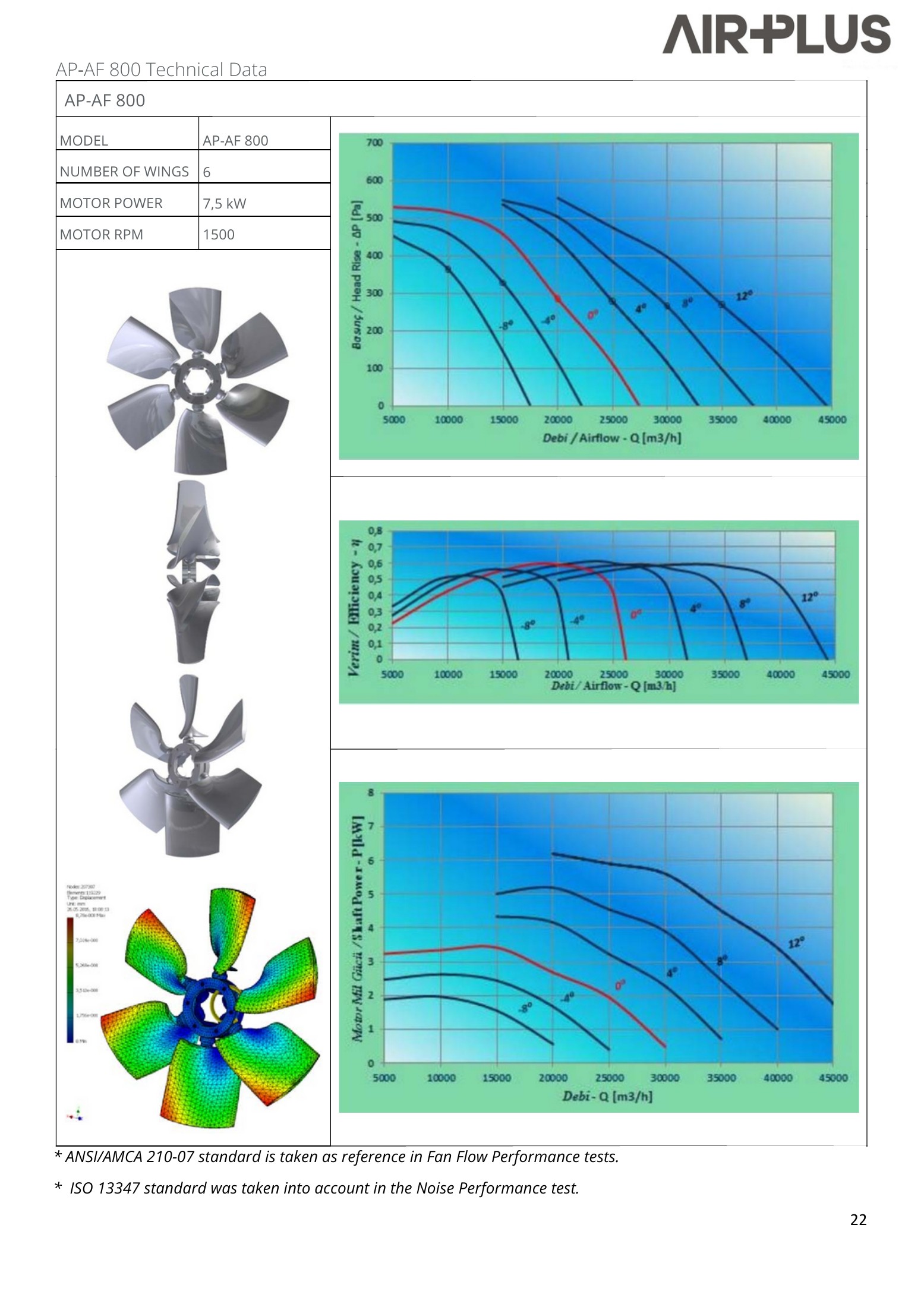

AP-AF 800	5000–45000	99

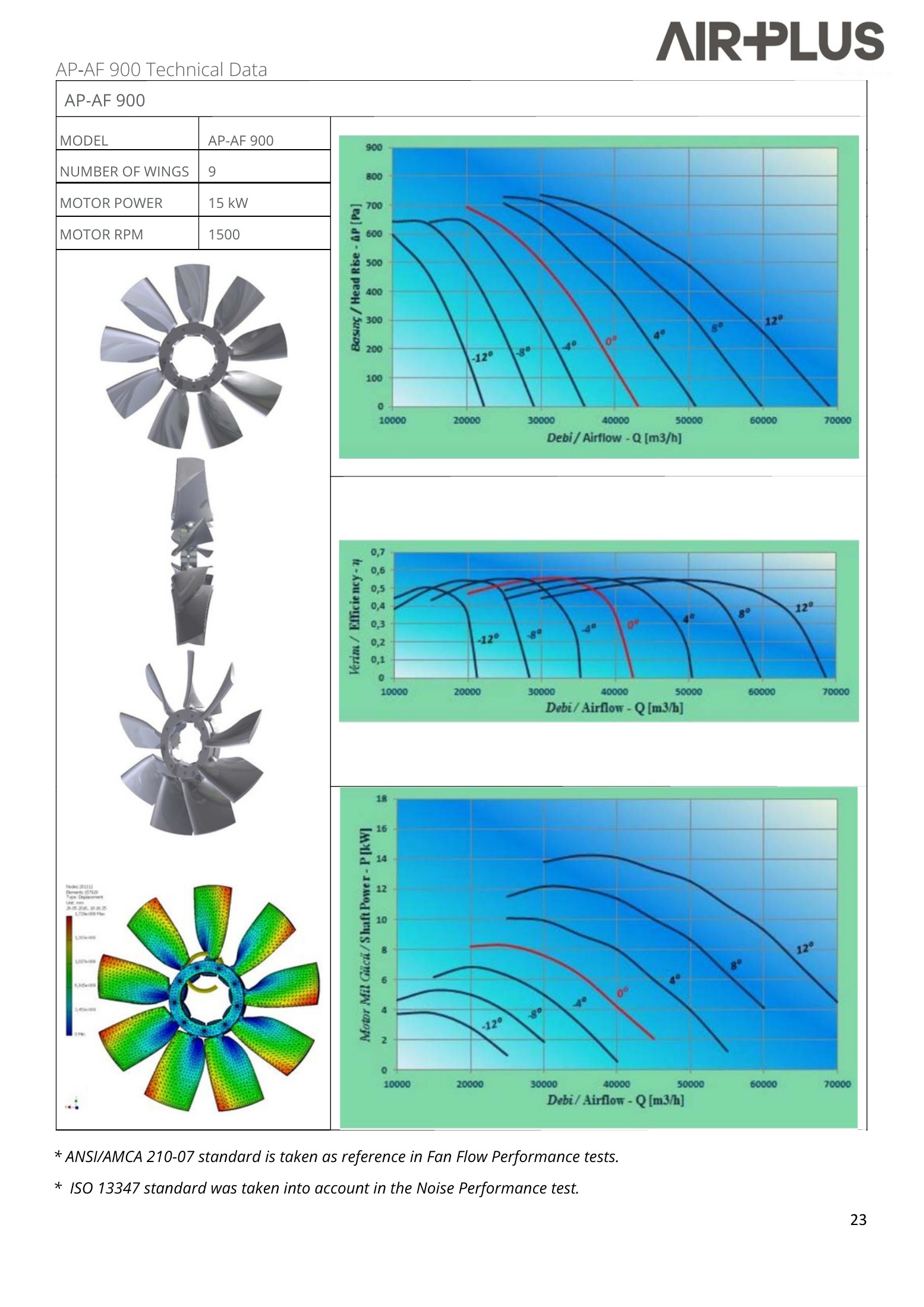

AP-AF 900	10000–70000	103
AP-AF 1000	10000–90000	107

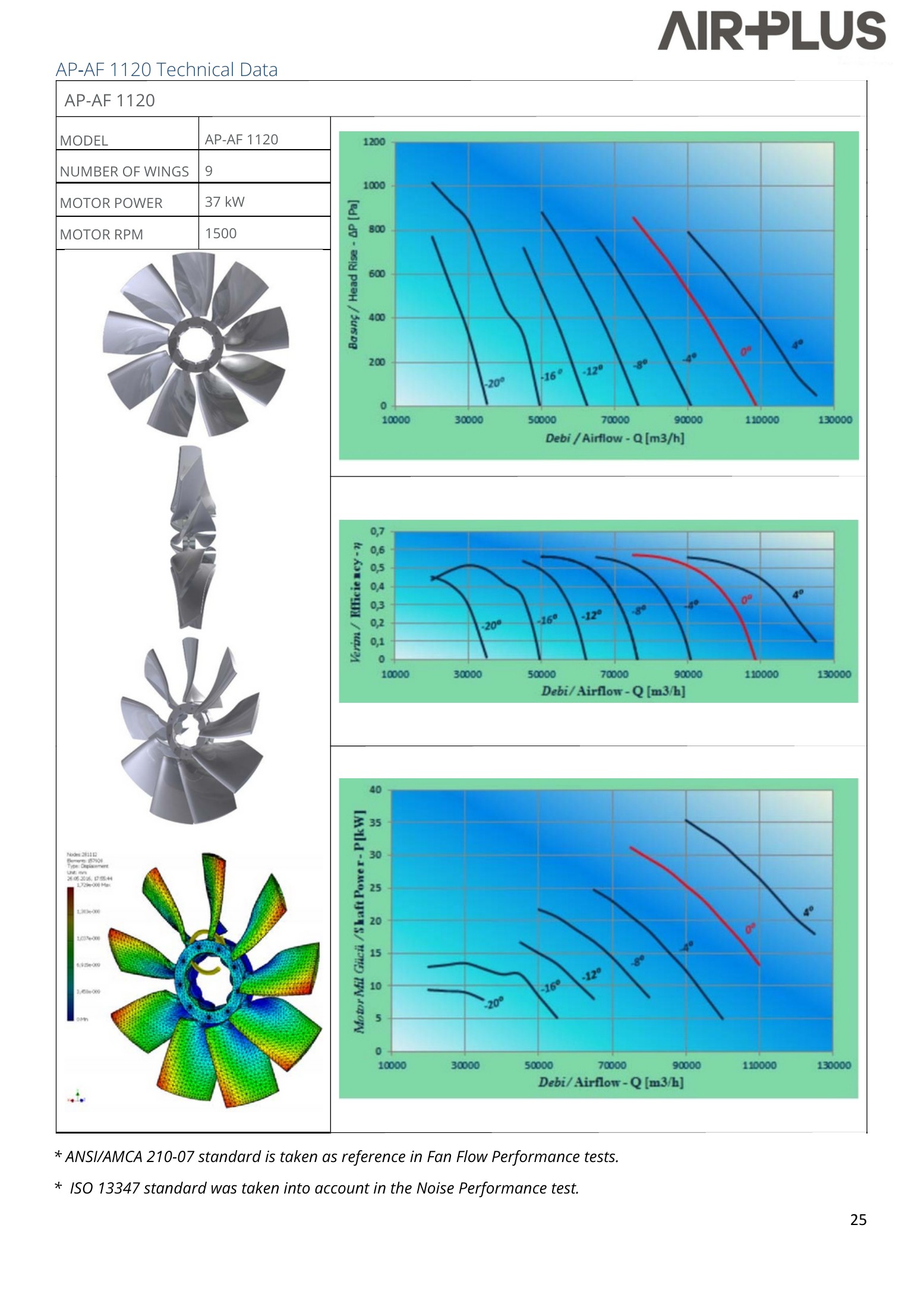

AP-AF 1120	20000–125000	108

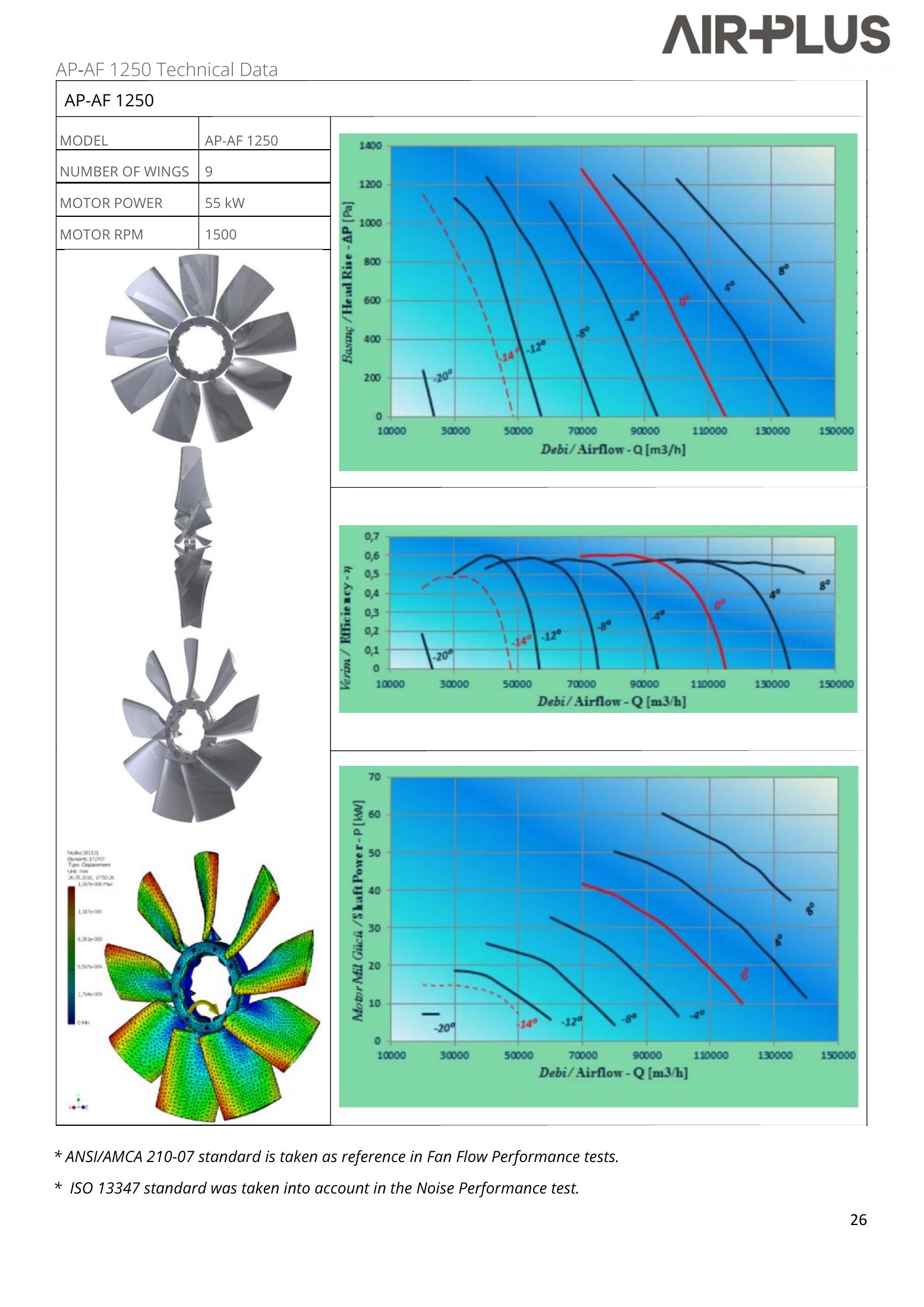

AP-AF 1250	30000–140000	110
