Comfortable climate control with high efficiency.
Specifically designed for individual climate control in buildings with central systems.
Available with two- and four-pipe configurations, this unit delivers high comfort and quiet operation for hotels, residences, shopping malls, offices, and multi-zone commercial spaces. Its variable static pressure feature provides flexible and efficient performance for diverse applications.
Additional Features
Ergonomic Design
Flexible Application Range
Low Operating Cost
Filtration & Air Quality Control
Easy Installation & Compact Structure
Easy Maintenance & Service Access
User-Friendly Interface
High Sealing Performance & Durable Housing
Advanced Technology
Technical data — Models and specifications
Models and technical data
| Feature | Option / value |
|---|---|
| Series | AP-FC-GTT |
| Coil options | 2-row / 3-row / 4-row |
| System | 2-pipe / 4-pipe |

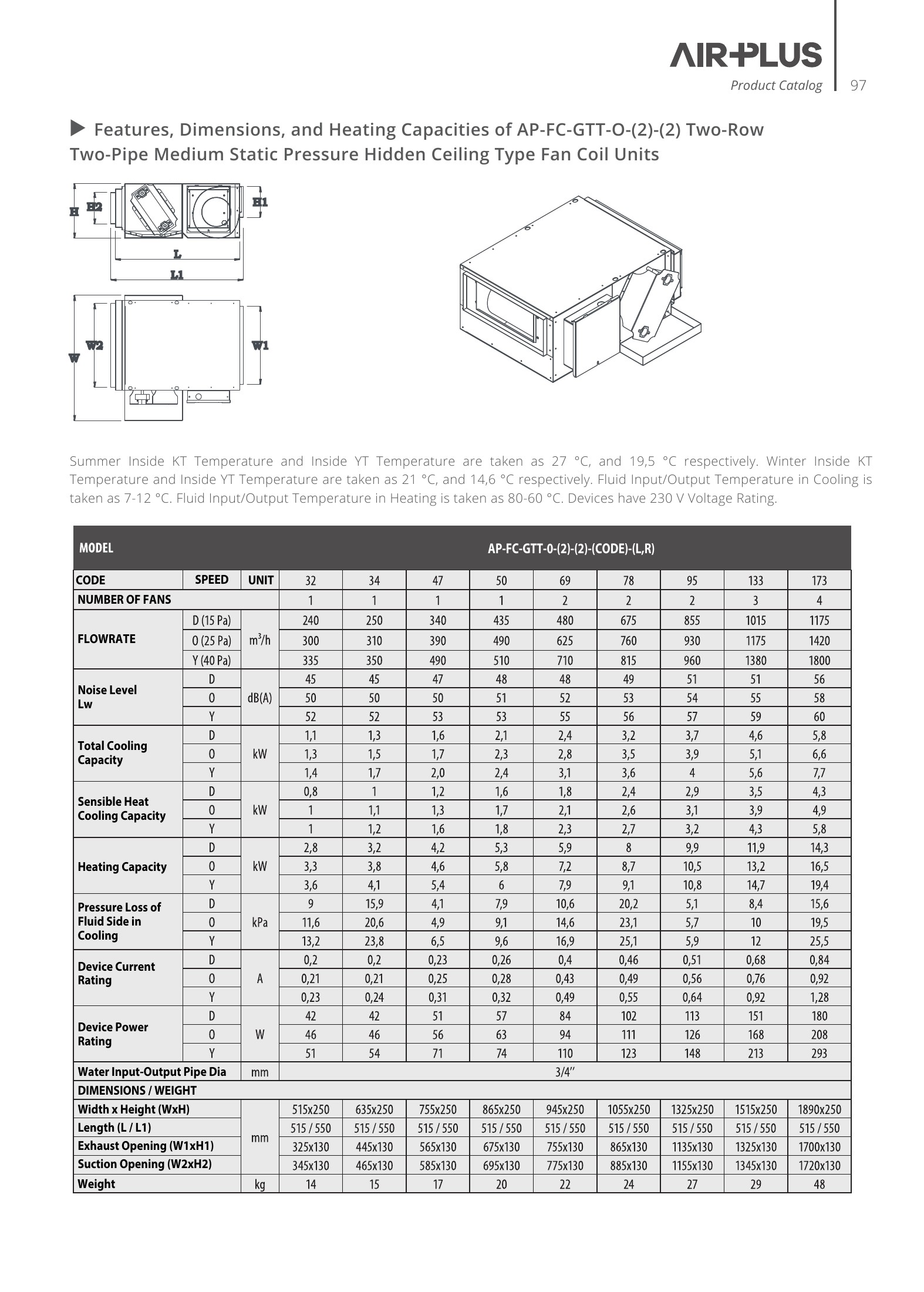

Technical drawings and catalogue data 1

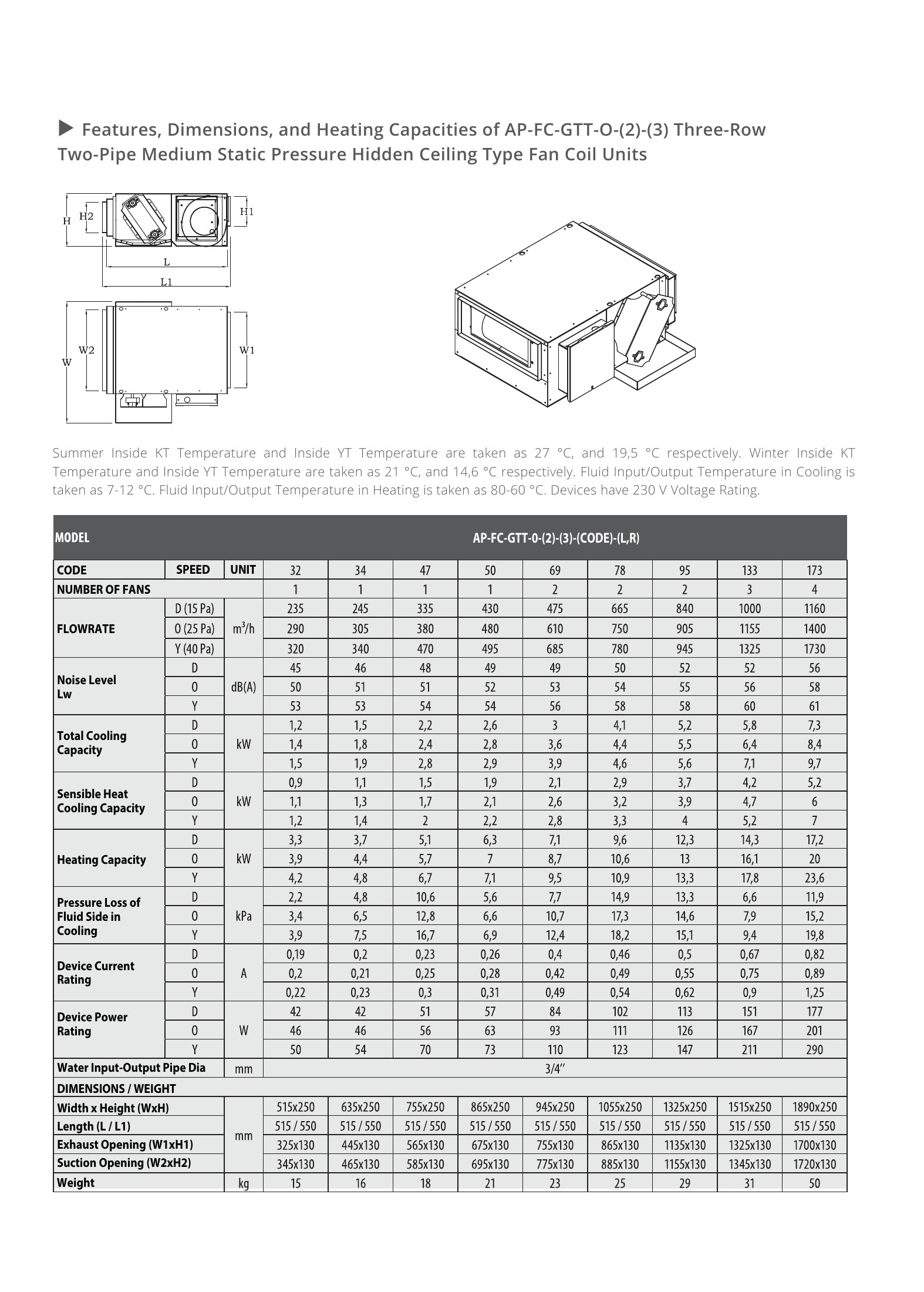

Technical drawings and catalogue data 2

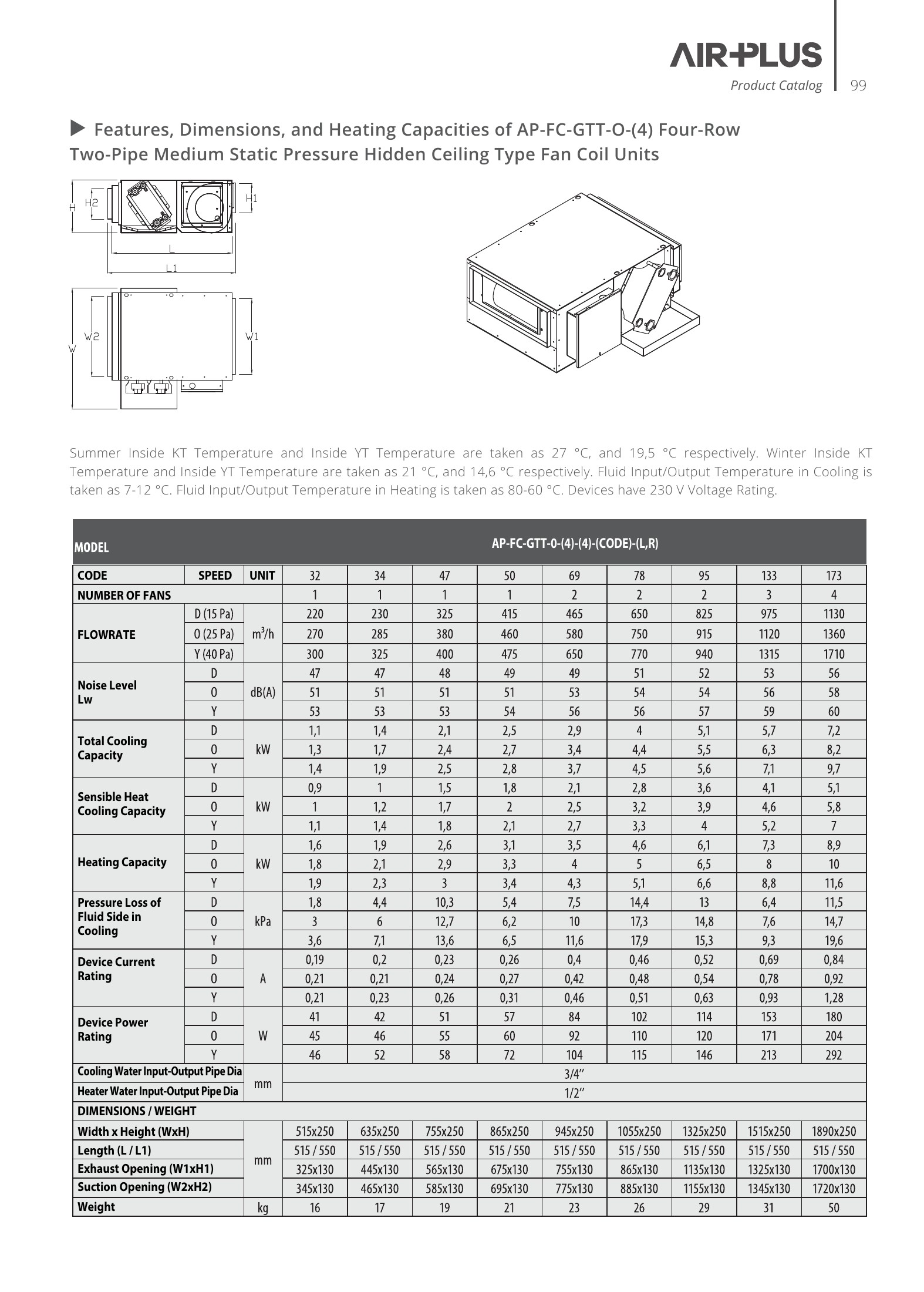

Technical drawings and catalogue data 3
