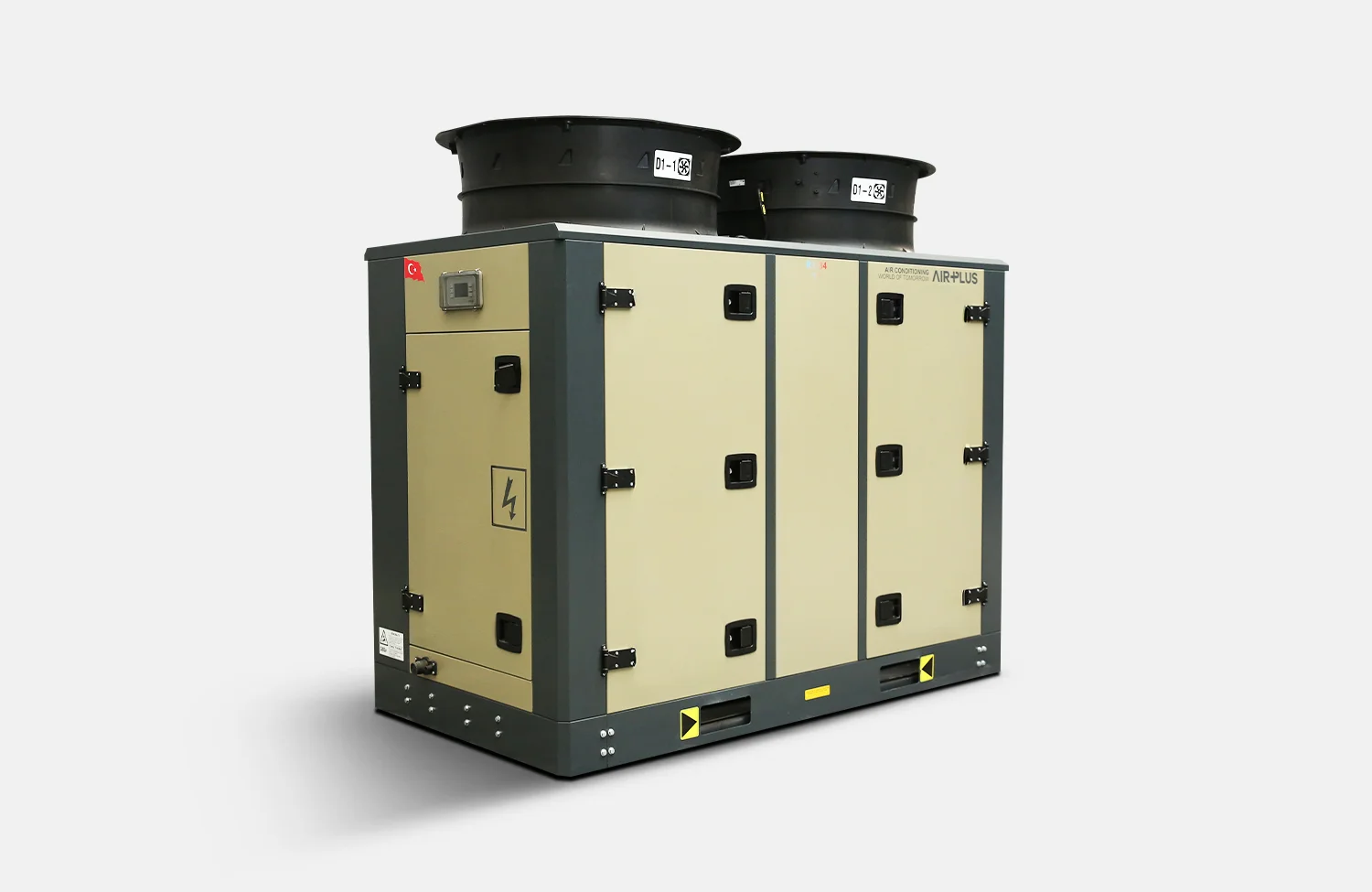

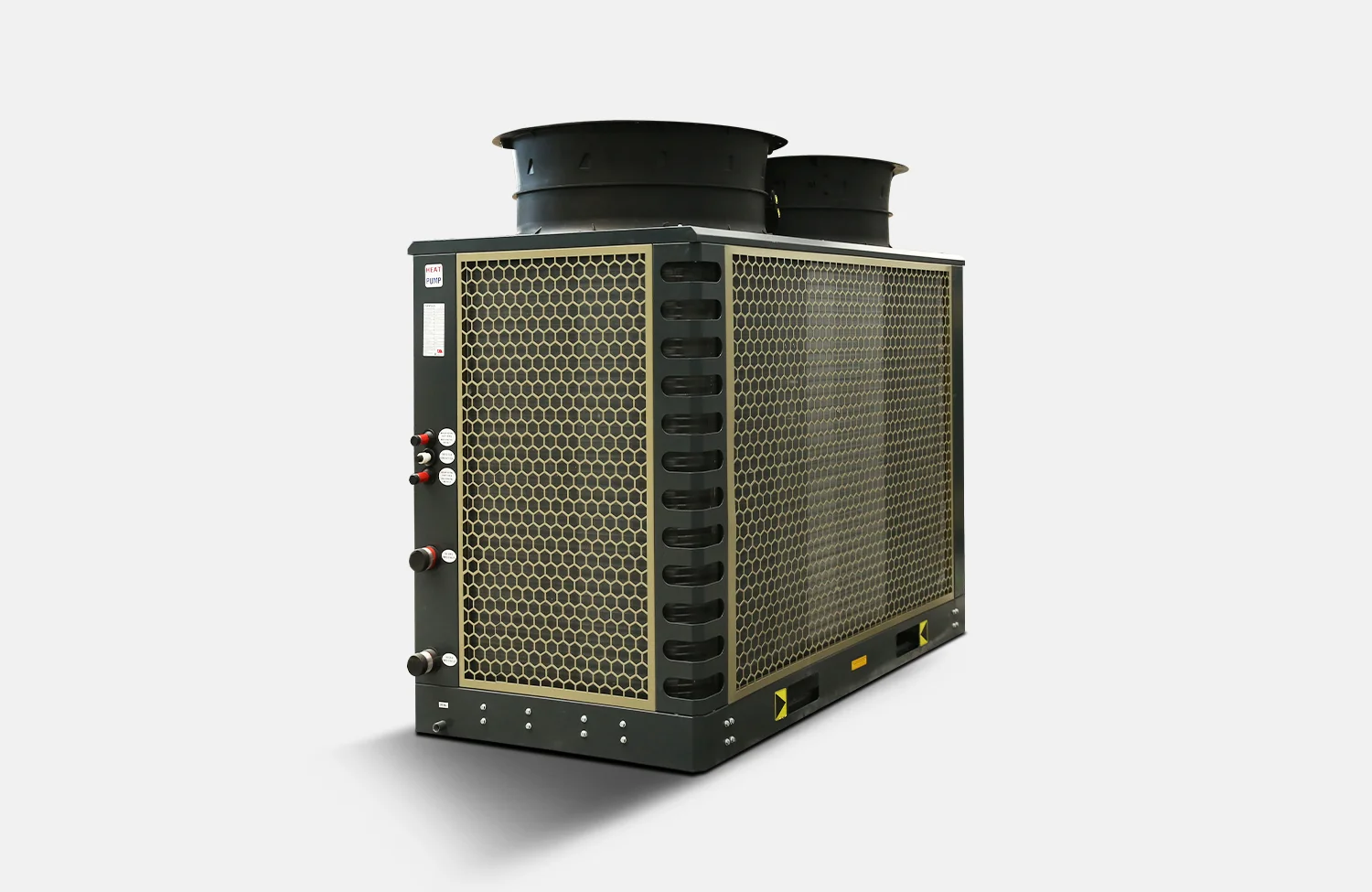

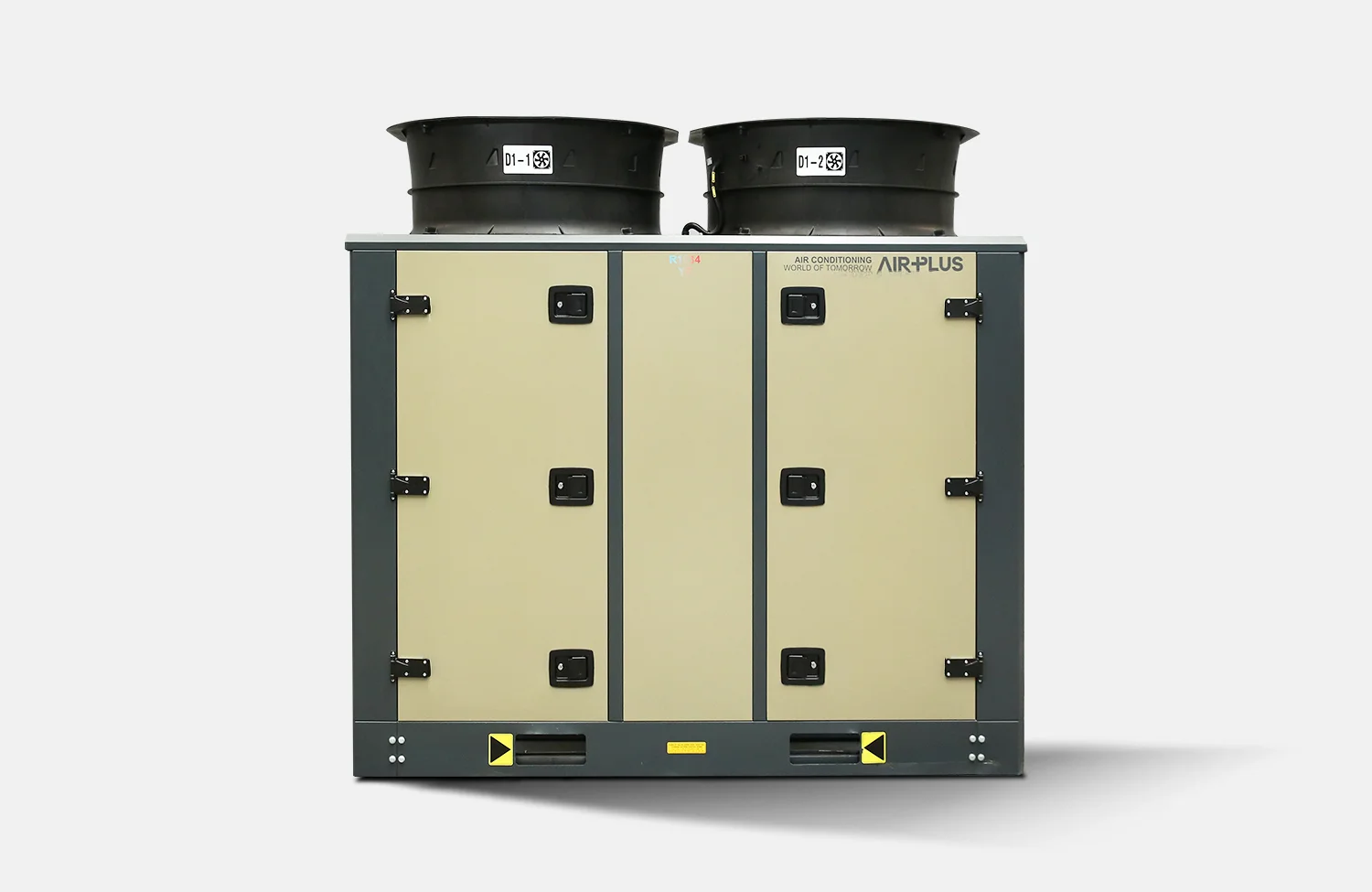

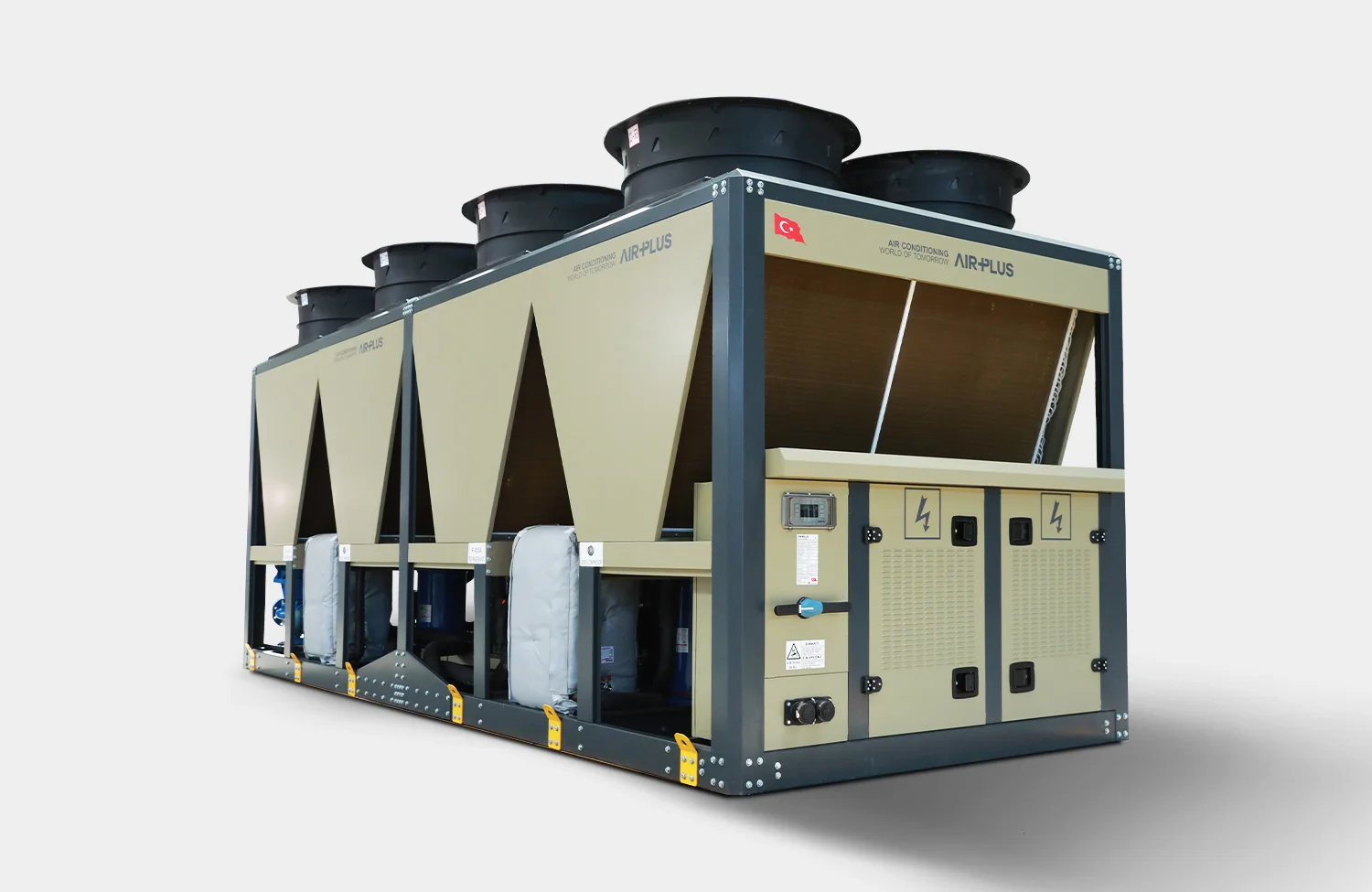

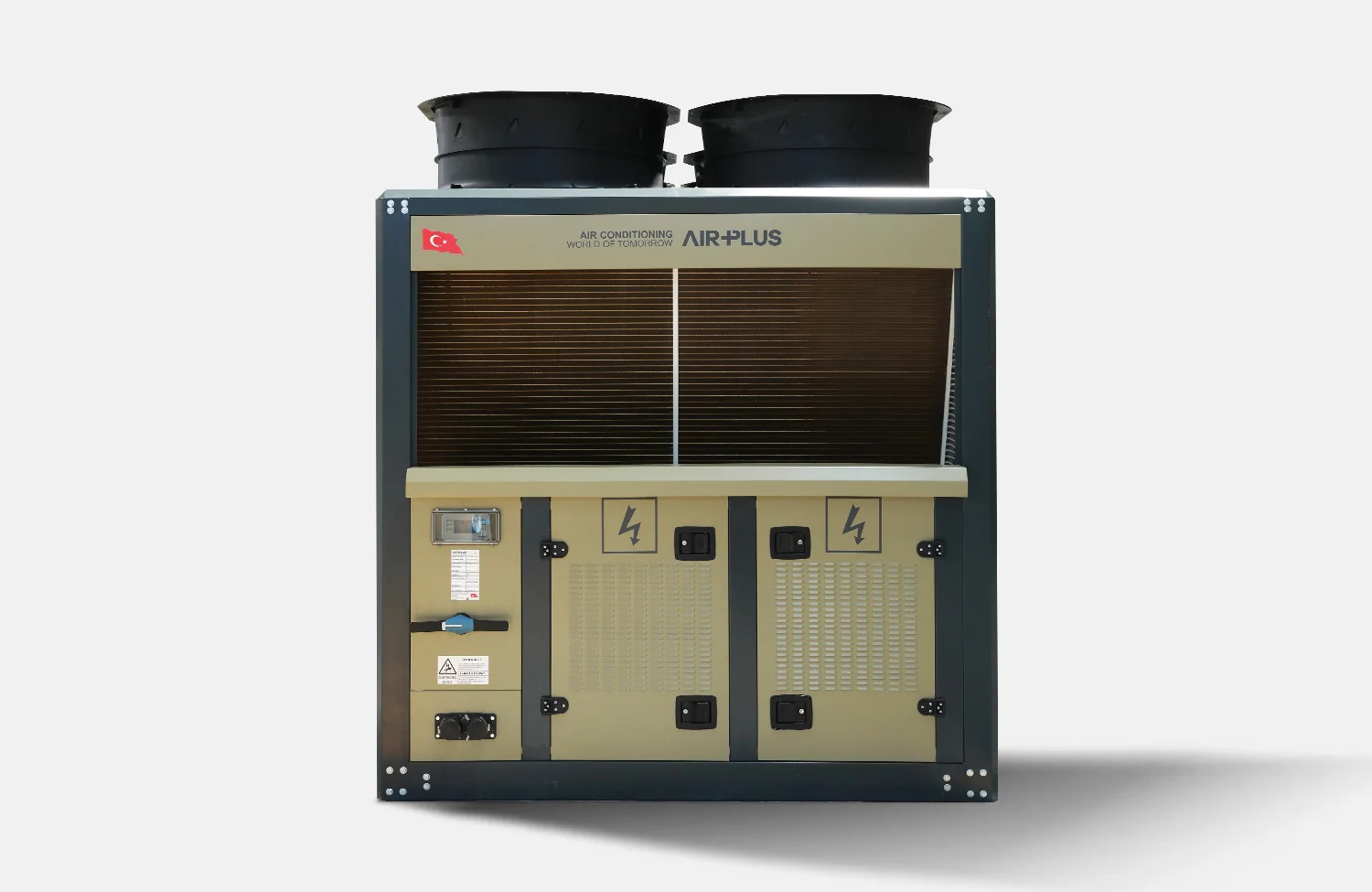

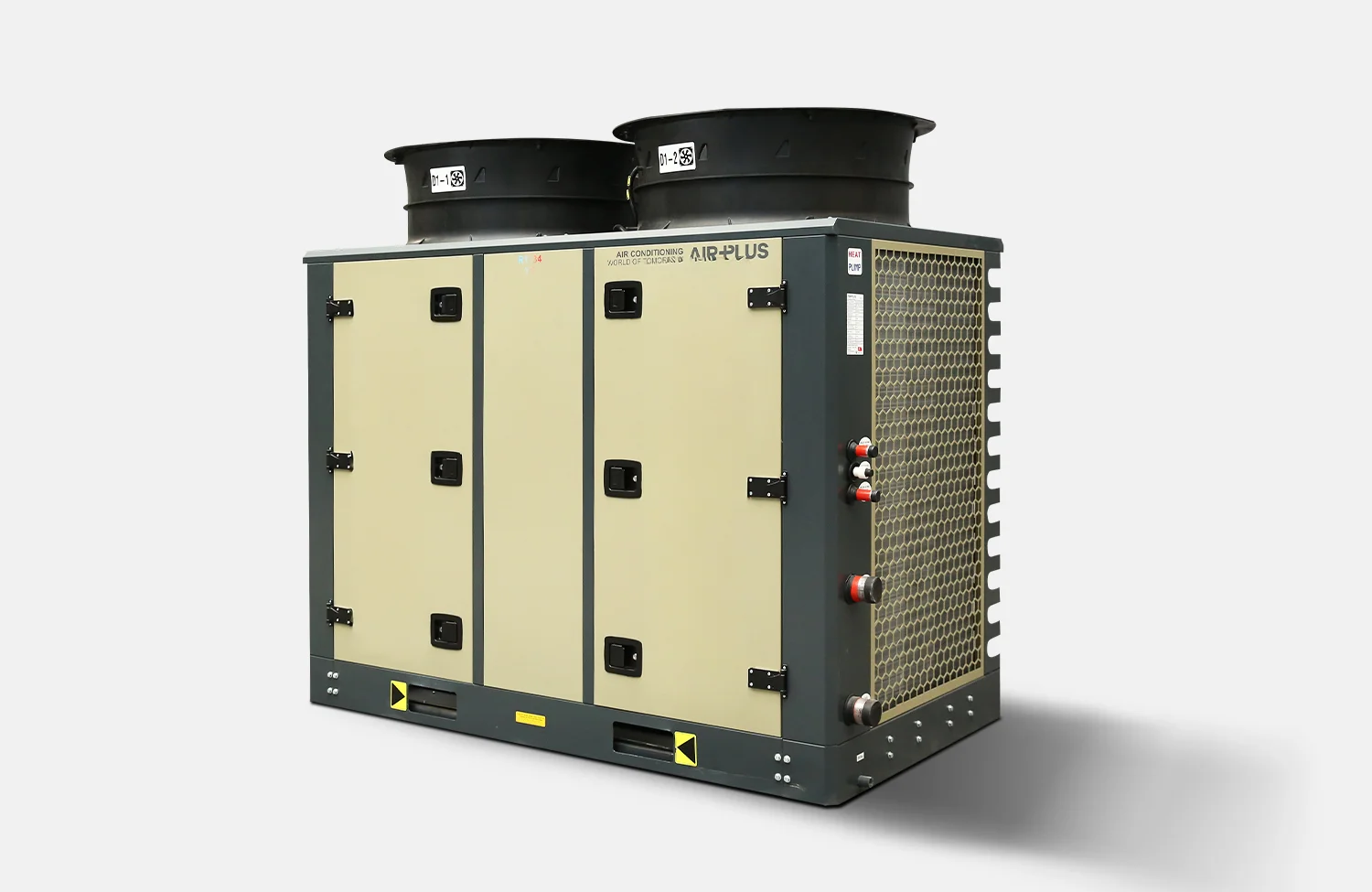

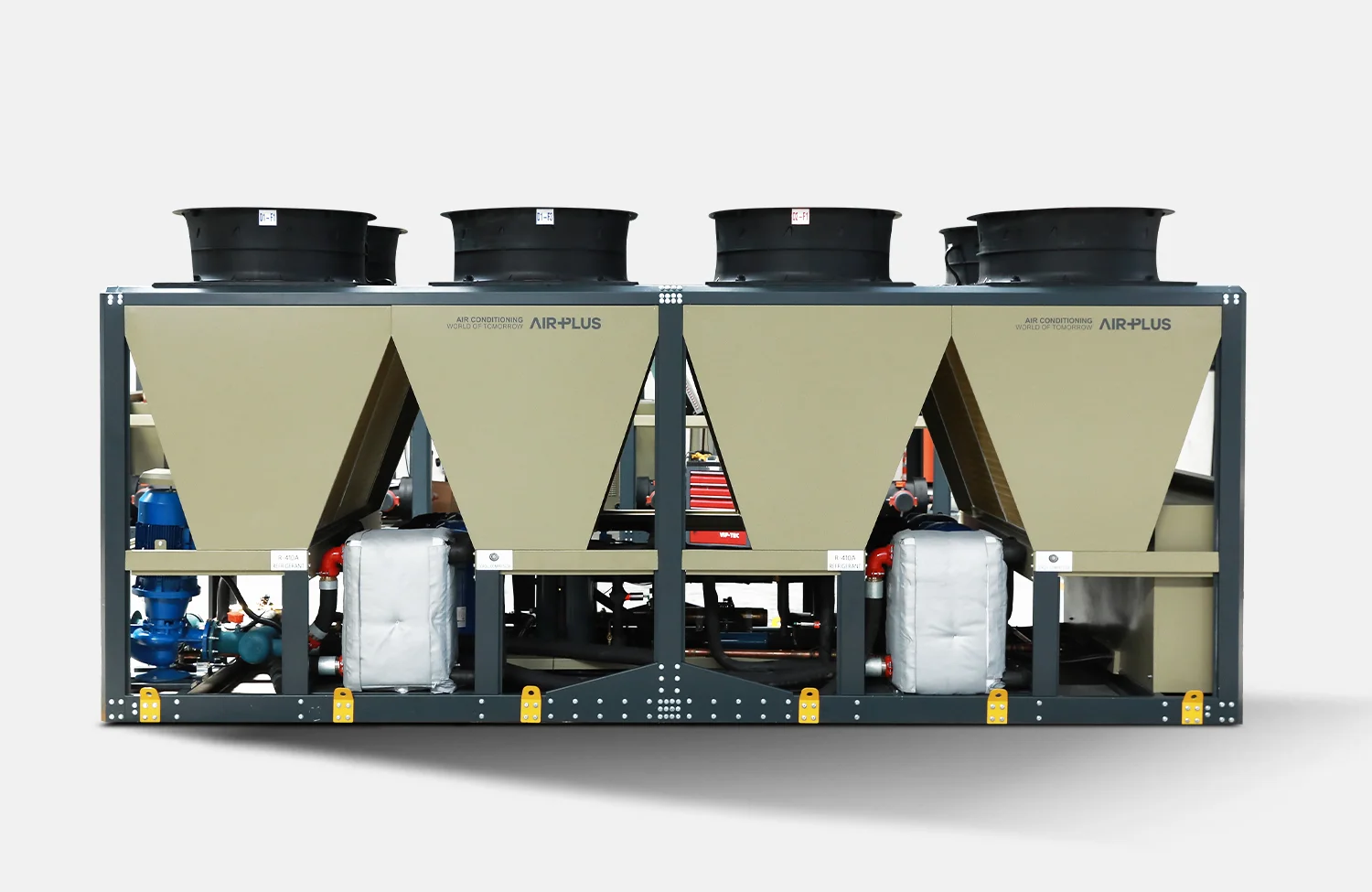

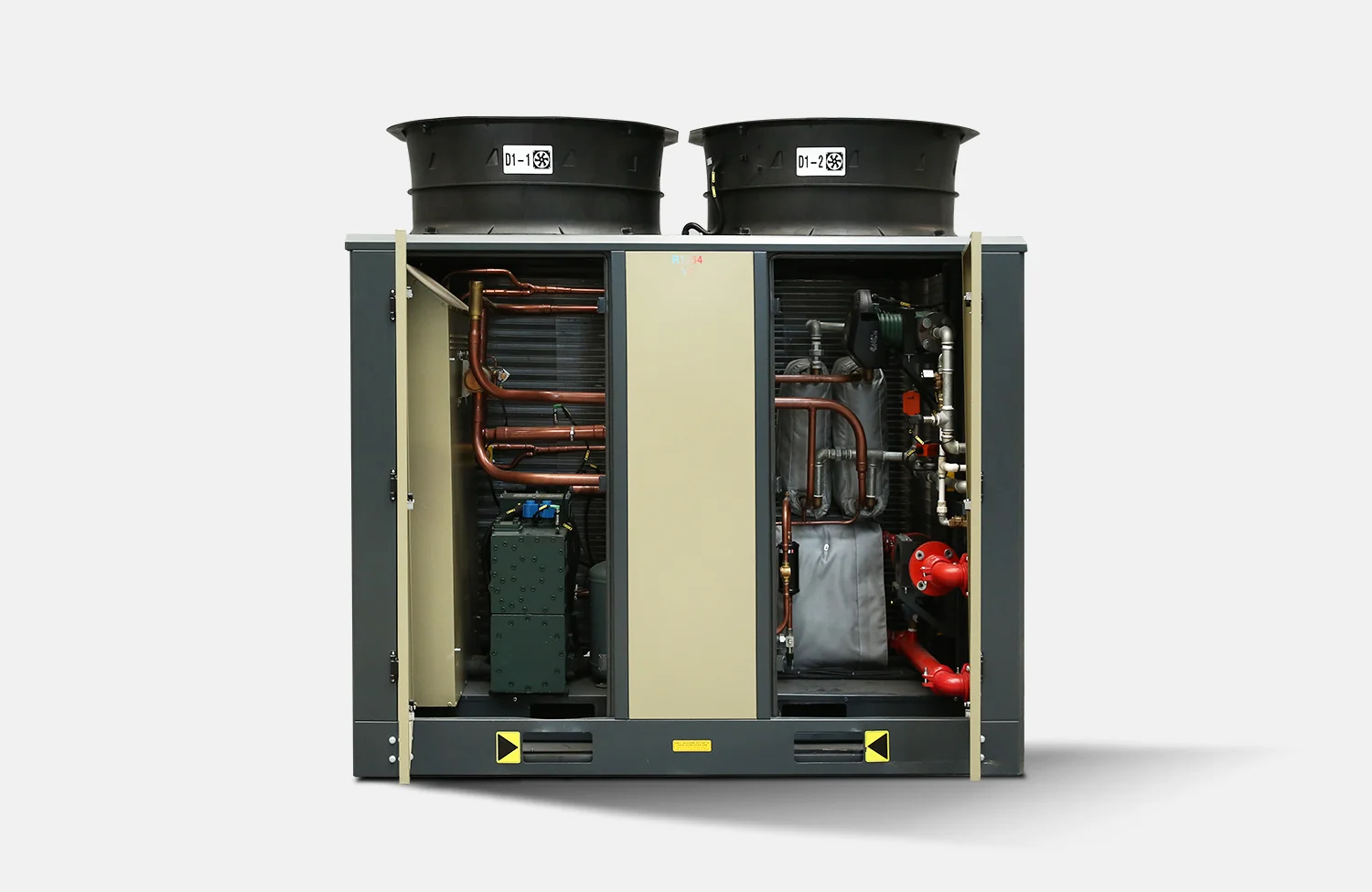

A single-unit solution for cooling, heating, and domestic hot water needs.
This compact and high-performance unit is designed to meet both comfort and domestic hot water needs. Offered with either inverter-driven or fixed-speed compressor options, these systems use environmentally friendly refrigerants to ensure maximum energy efficiency.
Available in two- and four-pipe configurations, the system offers flexible solutions for various application needs. With automatic condenser cleaning, fan defrosting, and snow removal functions, it ensures continuous and reliable performance.
Additional Features
Energy Efficiency
Ergonomic Design
Flexible Application Range
Low Operating Cost
Modular Production
Easy Installation & Compact Structure
Heat Recovery
Easy Maintenance & Service Access
User-Friendly Interface
High Sealing Performance & Durable Housing
Advanced Technology

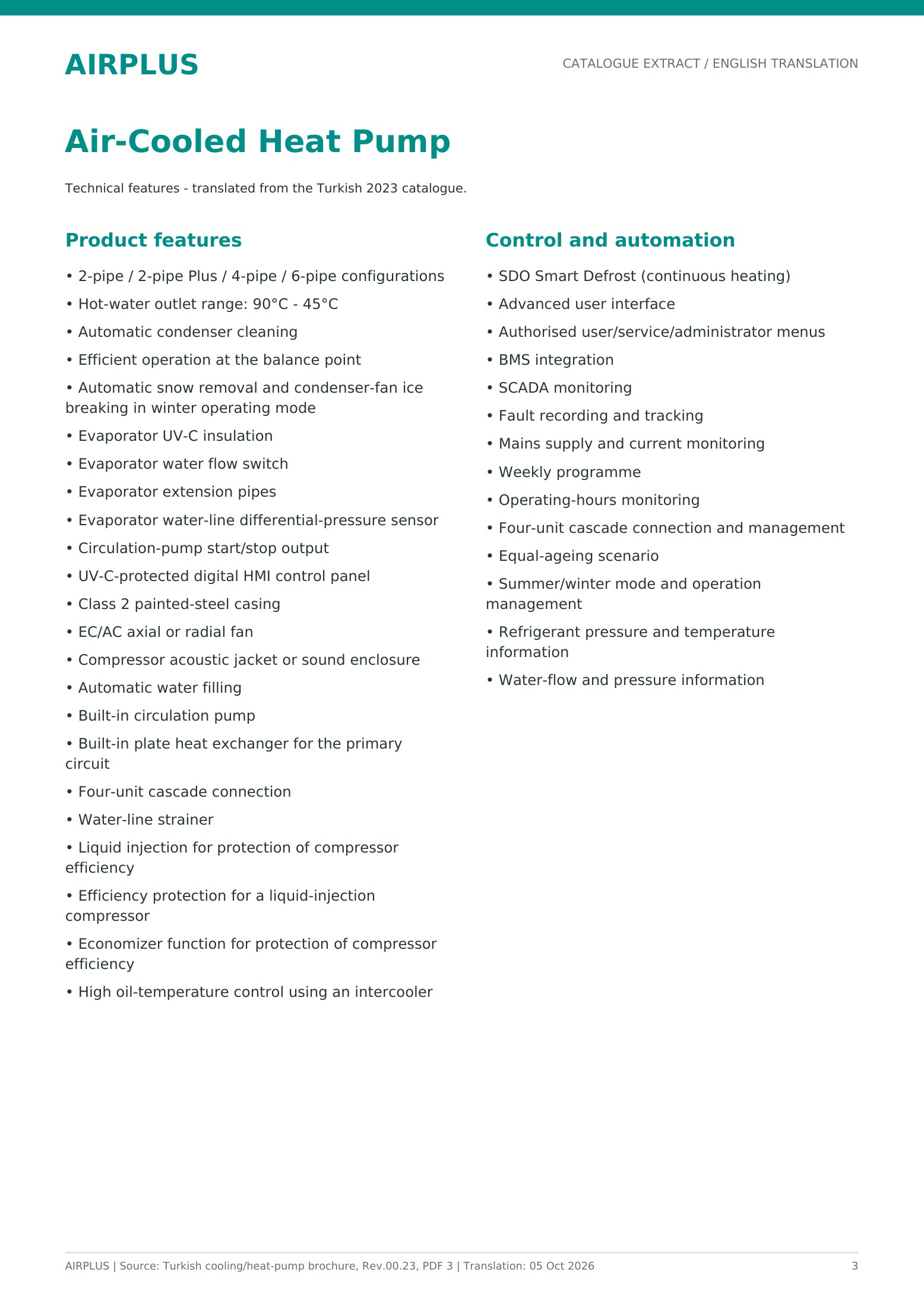

Technical data — Models and specifications
Models and technical data
- 2-pipe / 2-pipe Plus / 4-pipe / 6-pipe configurations
- Hot-water outlet range: 90°C - 45°C
- Automatic condenser cleaning
- Efficient operation at the balance point
- Automatic snow removal and condenser-fan ice breaking in winter operating mode
- Evaporator UV-C insulation
- Evaporator water flow switch
- Evaporator extension pipes
- Evaporator water-line differential-pressure sensor
- Circulation-pump start/stop output
- UV-C-protected digital HMI control panel
- Class 2 painted-steel casing
- EC/AC axial or radial fan
- Compressor acoustic jacket or sound enclosure
- Automatic water filling
- Built-in circulation pump
- Built-in plate heat exchanger for the primary circuit
- Four-unit cascade connection
- Water-line strainer
- Liquid injection for protection of compressor efficiency
- Efficiency protection for a liquid-injection compressor
- Economizer function for protection of compressor efficiency
- High oil-temperature control using an intercooler
