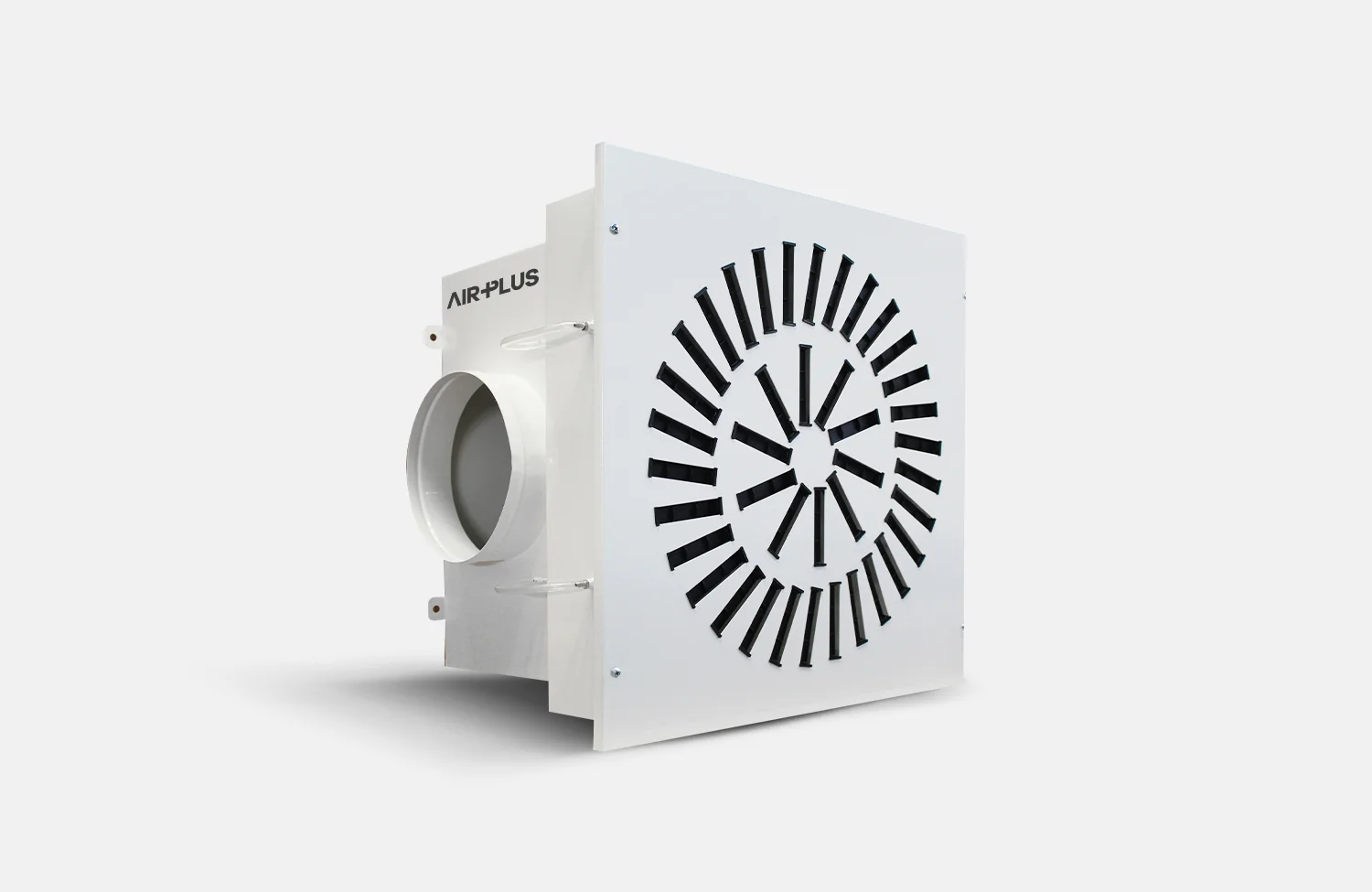

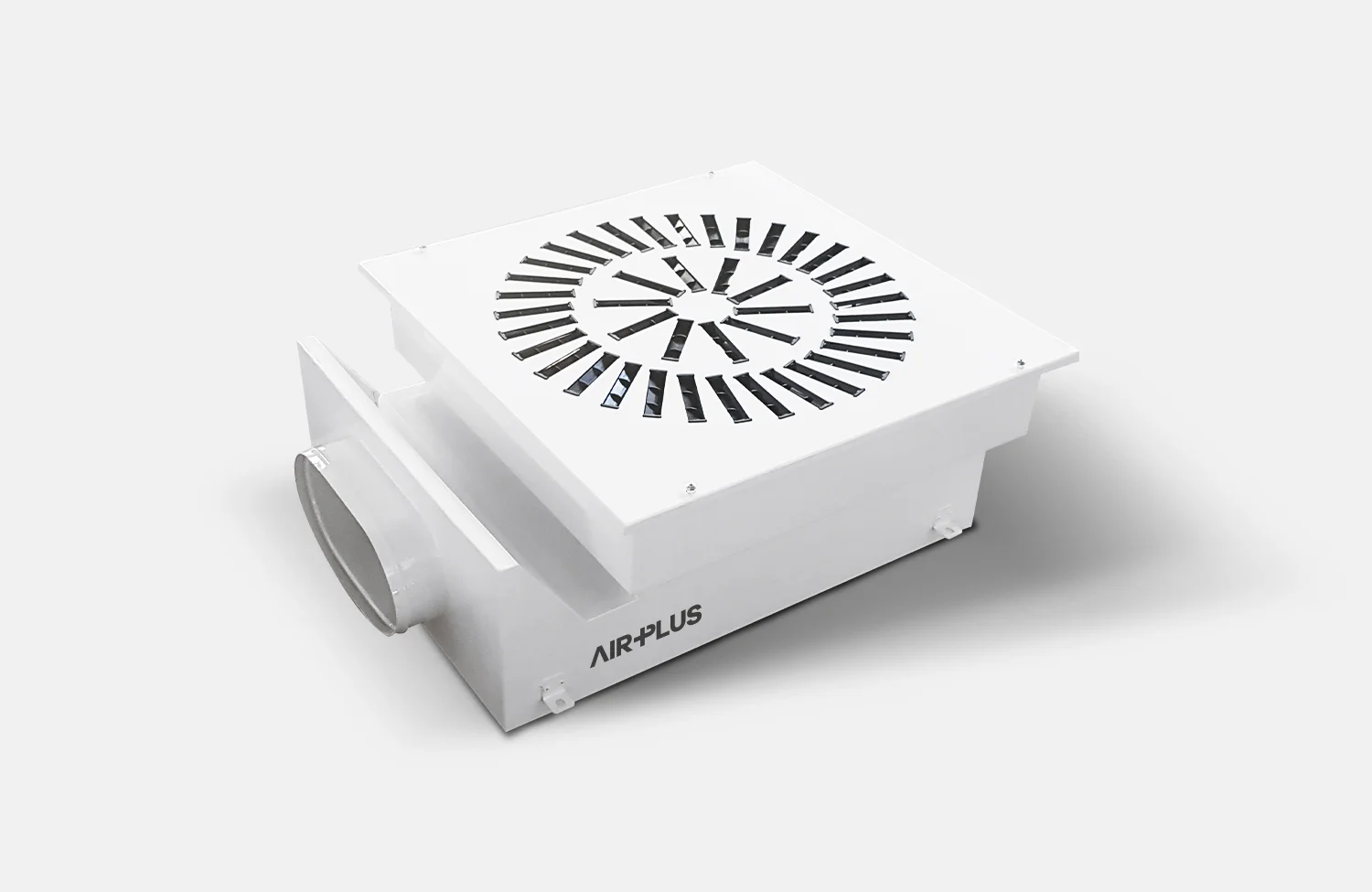

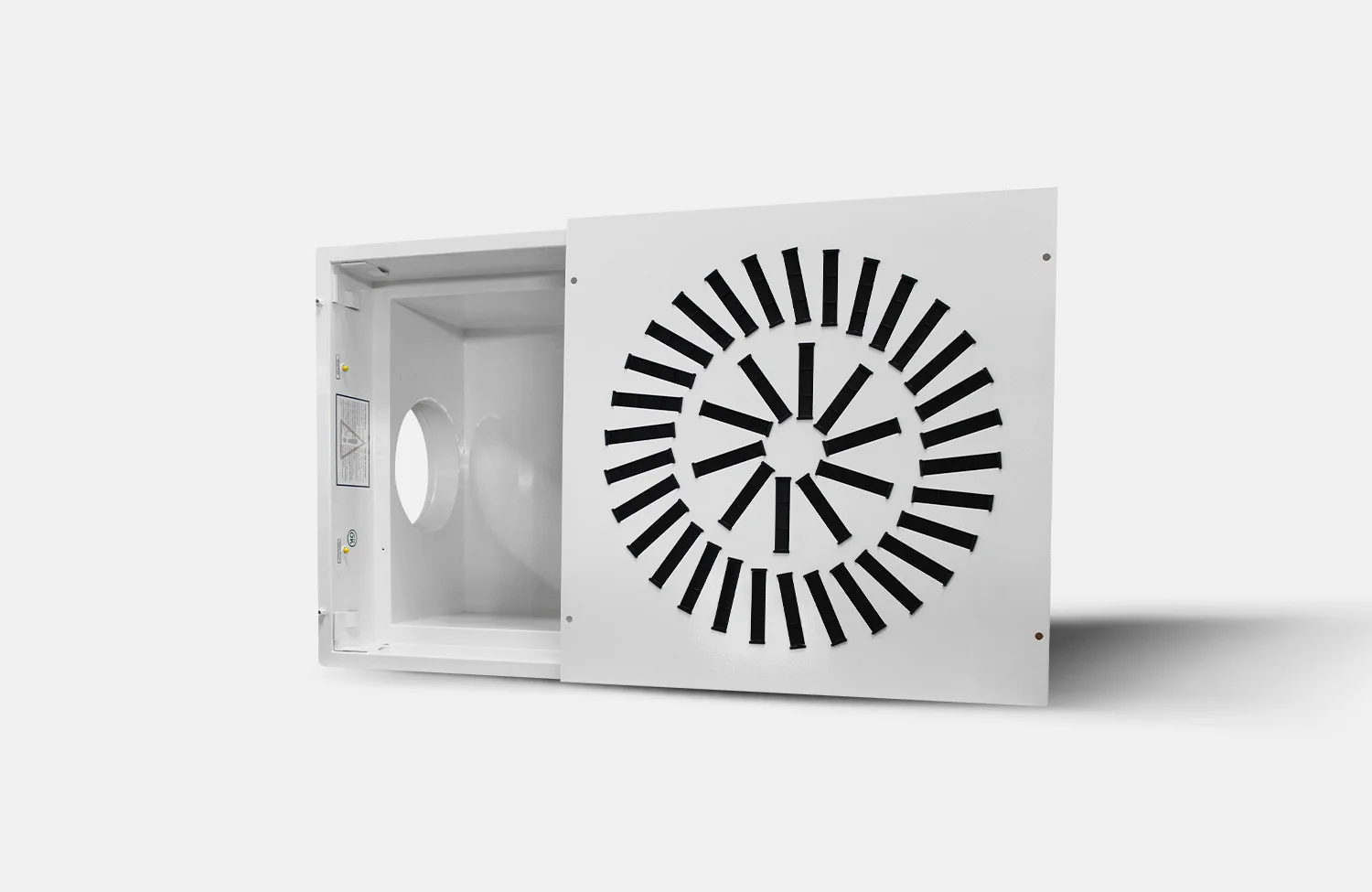

A high-efficiency filtration solution for ultra-clean air.
It is designed to meet the high hygiene standards required in cleanroom and laboratory applications.
Thanks to its HEPA-filtered structure, it efficiently captures airborne particles and delivers 99.99% purified air.
Additional Features
Low Operating Cost
Filtration & Air Quality Control
Hygienic Design
Modular Production
Easy Installation & Compact Structure
Easy Maintenance & Service Access
High Sealing Performance & Durable Housing
Technical data — Models and specifications
Models and technical data
| Filter dimensions (mm) | Duct diameter (mm) | W (mm) | L (mm) | H (mm) | Diffuser W (mm) | Diffuser L (mm) | Diffuser H (mm) |
|---|---|---|---|---|---|---|---|
| 305x305x78 | Ø160 | 324,4 | 324,4 | 313 | 385 | 385 | 14 |
| 457x457x78 | Ø200 | 476,4 | 476,4 | 353 | 537 | 537 | 14 |
| 535x535x78 | Ø248 | 554,4 | 554,4 | 423 | 615 | 615 | 14 |
| 575x575x78 | Ø248 | 594,4 | 594,4 | 423 | 655 | 655 | 14 |
| 610x610x78 | Ø248 | 629,4 | 629,4 | 423 | 690 | 690 | 14 |
Technical drawings and catalogue data 1
Technical drawings and catalogue data 2
Technical drawings and catalogue data 3
