Compact design delivering maximum performance.
Combining high performance with easy installation, this fan is designed for efficient use in ventilation systems. Its galvanised steel casing and flange with elongated holes allow seamless integration into duct networks.
A practical maintenance cover provides direct access to the motor for quick and easy servicing. Optional speed control enables adjustment of the airflow rate according to system requirements. When integrated with filters, silencers and electric heaters, it delivers an effective and comprehensive solution for complete duct systems.
Additional Features
Low Operating Cost
Easy Installation & Compact Structure
Easy Maintenance & Service Access
High Sealing Performance & Durable Housing
Technical data — Models and specifications
Models and technical data
| Model | W (mm) | H (mm) | L (mm) | Power (W) | Current (A) | Voltage (V) | Airflow (m³/h) | Speed (rpm) | Sound (dBA) |
|---|---|---|---|---|---|---|---|---|---|
| AP-DKF-250 | 400 | 200 | 500 | 200 | 0,9 | 230 | 1365 | 2600 | 70 |
| AP-DKF-315A | 600 | 350 | 720 | 135 | 0,6 | 230 | 1730 | 1400 | 63 |
| AP-DKF-315B | 600 | 350 | 720 | 515 | 2,25 | 230 | 2630 | 2300 | 70 |
| AP-DKF-355 | 700 | 400 | 790 | 210 | 1 | 230 | 2330 | 1400 | 60 |
| AP-DKF-400 | 800 | 500 | 880 | 500 | 1,8 | 230 | 3600 | 1380 | 66 |
| AP-DKF-450 | 1000 | 500 | 980 | 500 | 2,2 | 230 | 5080 | 1300 | 66 |
| AP-DKF-500 | 1100 | 600 | 1050 | 1550 | 6,8 | 230 | 7000 | 1380 | 76 |

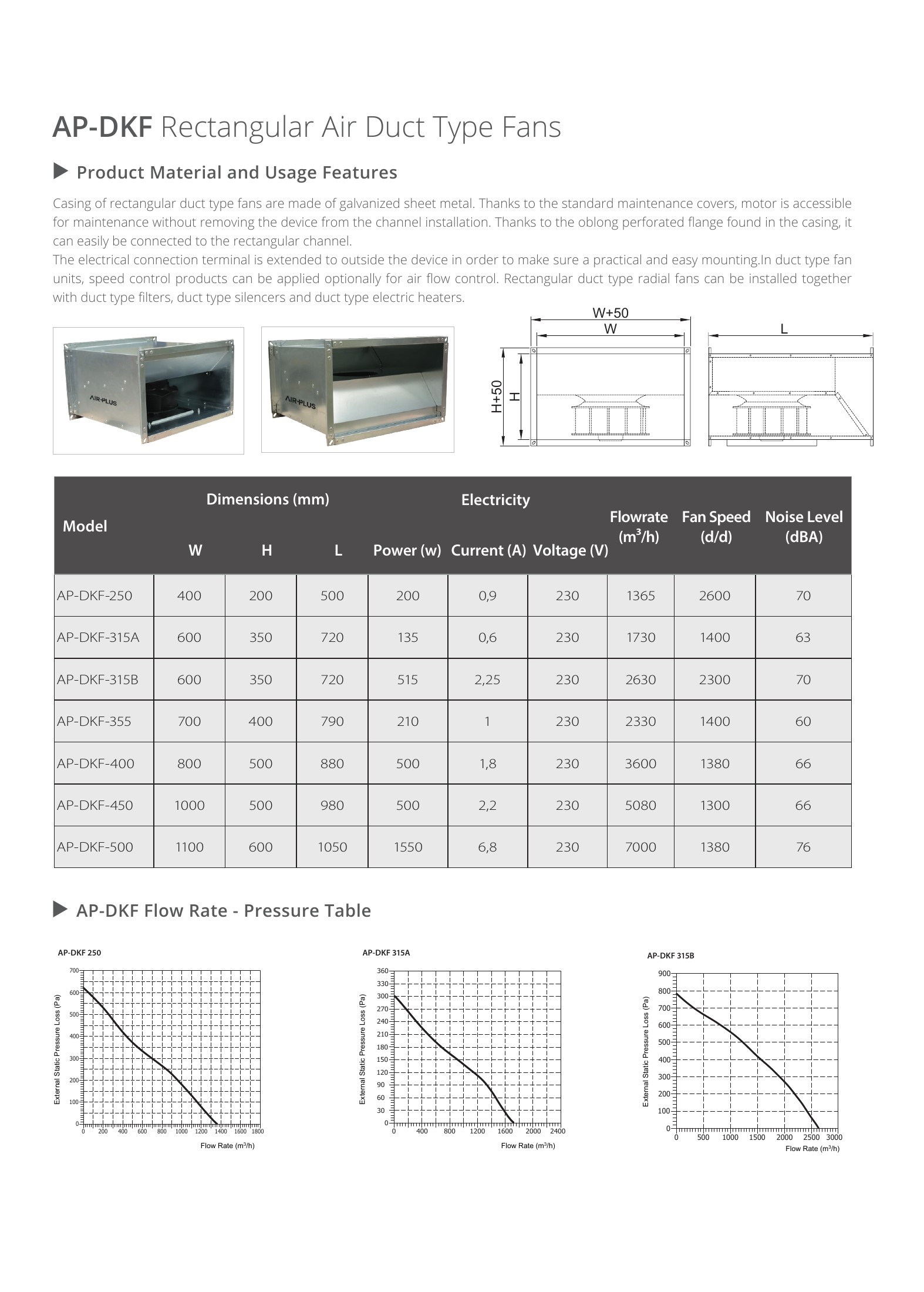

Technical drawings and catalogue data 1

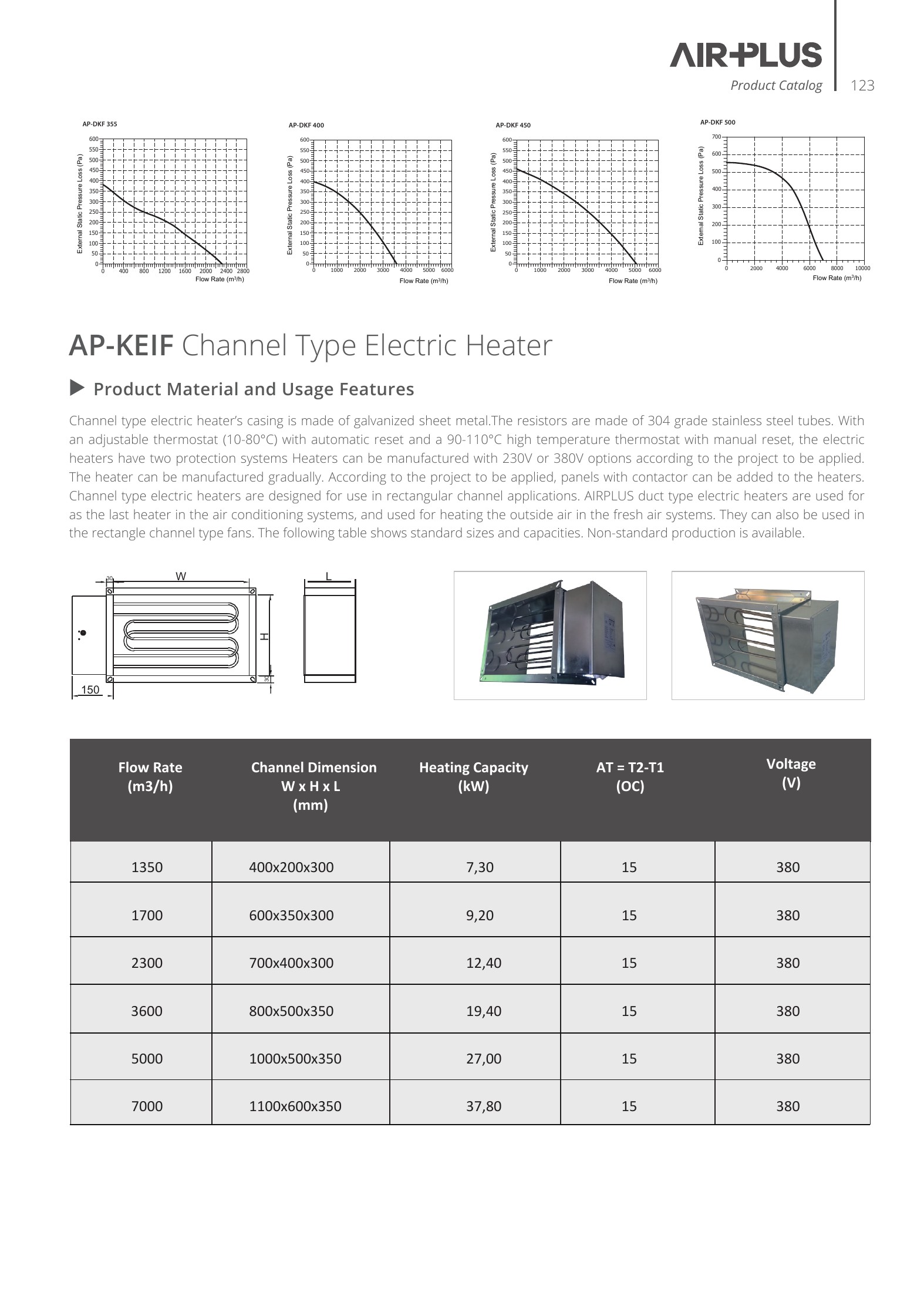

Technical drawings and catalogue data 2
