A safe ventilation solution for hazardous.
A specialised ventilation system designed to protect safe living spaces during extraordinary conditions such as war, biological, or radiological events.
Through its advanced filtration structure, it captures harmful particles, gases, and radioactive contaminants, ensuring 100% clean and safe fresh air inside the shelter. Operating without heating, cooling, or humidification, it supplies only purified air for secure and healthy breathing.
Additional Features
Low Operating Cost
Easy Installation & Compact Structure
Easy Maintenance & Service Access
High Sealing Performance & Durable Housing
Technical data — Models and specifications
Models and technical data
| Model | Airflow (m³/h) | Static pressure (Pa) | Motor (kW), 3000 rpm | W (mm) | H (mm) | L (mm) |
|---|---|---|---|---|---|---|
| AP-SS-180 | 1800 | 400 | 1,1 | 750 | 650 | 2650 |
| AP-SS-360 | 3600 | 400 | 2,2 | 750 | 750 | 2850 |
| AP-SS-540 | 5400 | 400 | 3,0 | 1050 | 750 | 2900 |
| AP-SS-720 | 7200 | 400 | 5,5 | 1350 | 850 | 2900 |
| AP-SS-810 | 8100 | 400 | 5,5 | 1050 | 1050 | 3200 |
| AP-SS-1080 | 10800 | 500 | 7,5 | 1350 | 1050 | 3200 |

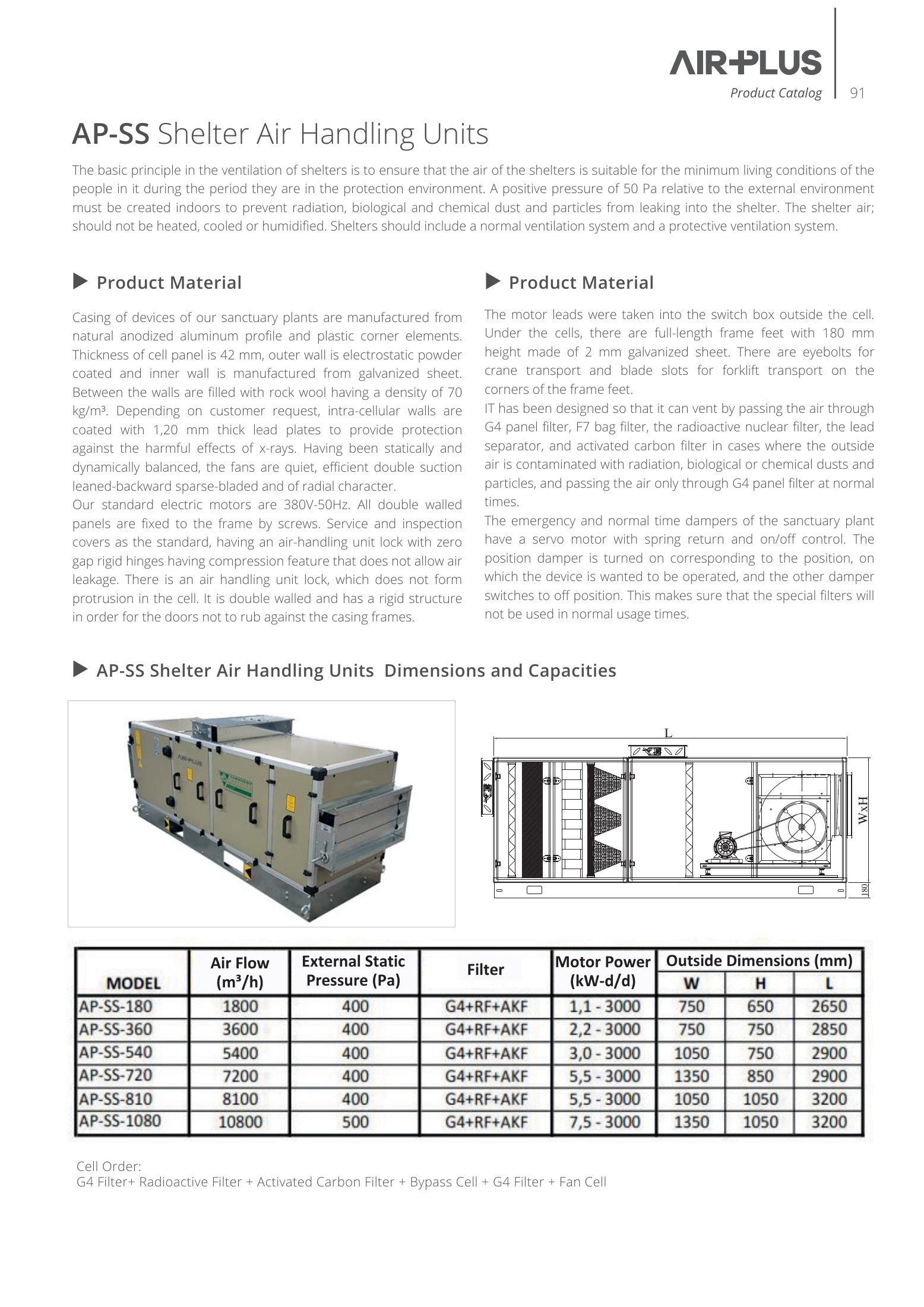

Technical drawings and catalogue data 1
