Delivers fresh air with energy efficiency.
Developed to enhance indoor air quality while reducing energy consumption, this unit recovers heat from exhaust air through an aluminium plate heat exchanger and high-efficiency plug fans, transferring it to the incoming fresh air.
In doing so, it provides 100% fresh air while maximising heat energy recovery and overall system efficiency.
Additional Features
Energy Efficiency
Ergonomic Design
Flexible Application Range
Low Operating Cost
Filtration & Air Quality Control
Easy Installation & Compact Structure
Heat Recovery
Easy Maintenance & Service Access
User-Friendly Interface
High Sealing Performance & Durable Housing
Technical data — Models and specifications
Models and technical data
| Feature | HRVPlus-500 | HRVPlus-750 | HRVPlus-1000 | HRVPlus-2000 | HRVPlus-2500 | HRVPlus-3000 | HRVPlus-3500 | HRVPlus-4000 | HRVPlus-5000 |
|---|---|---|---|---|---|---|---|---|---|
| Airflow (m³/h) | 500 | 750 | 1000 | 2000 | 2500 | 3000 | 3500 | 4000 | 5000 |
| External static pressure (Pa) | 150 | 135 | 125 | 125 | 165 | 180 | 145 | 245 | 190 |
| Current (A) | 1,4 | 1,8 | 2,2 | 4,5 | 3,6 | 8,2 | 8,2 | 13,6 | 13,6 |
| Sound level (dBA) | 37 | 39 | 39 | 41 | 42 | 41 | 44 | 45 | 49 |
| Length (mm) | 1150 | 1150 | 1150 | 1420 | 1750 | 1750 | 1850 | 1850 | 1900 |
| Width (mm) | 800 | 800 | 800 | 1000 | 1150 | 1150 | 1200 | 1200 | 1400 |
| Height (mm) | 370 | 370 | 370 | 370 | 560 | 560 | 600 | 600 | 750 |
| Duct connection (mm) | 280x250 | 280x250 | 280x250 | 350x250 | 400x350 | 400x350 | 450x400 | 450x400 | 450x400 |

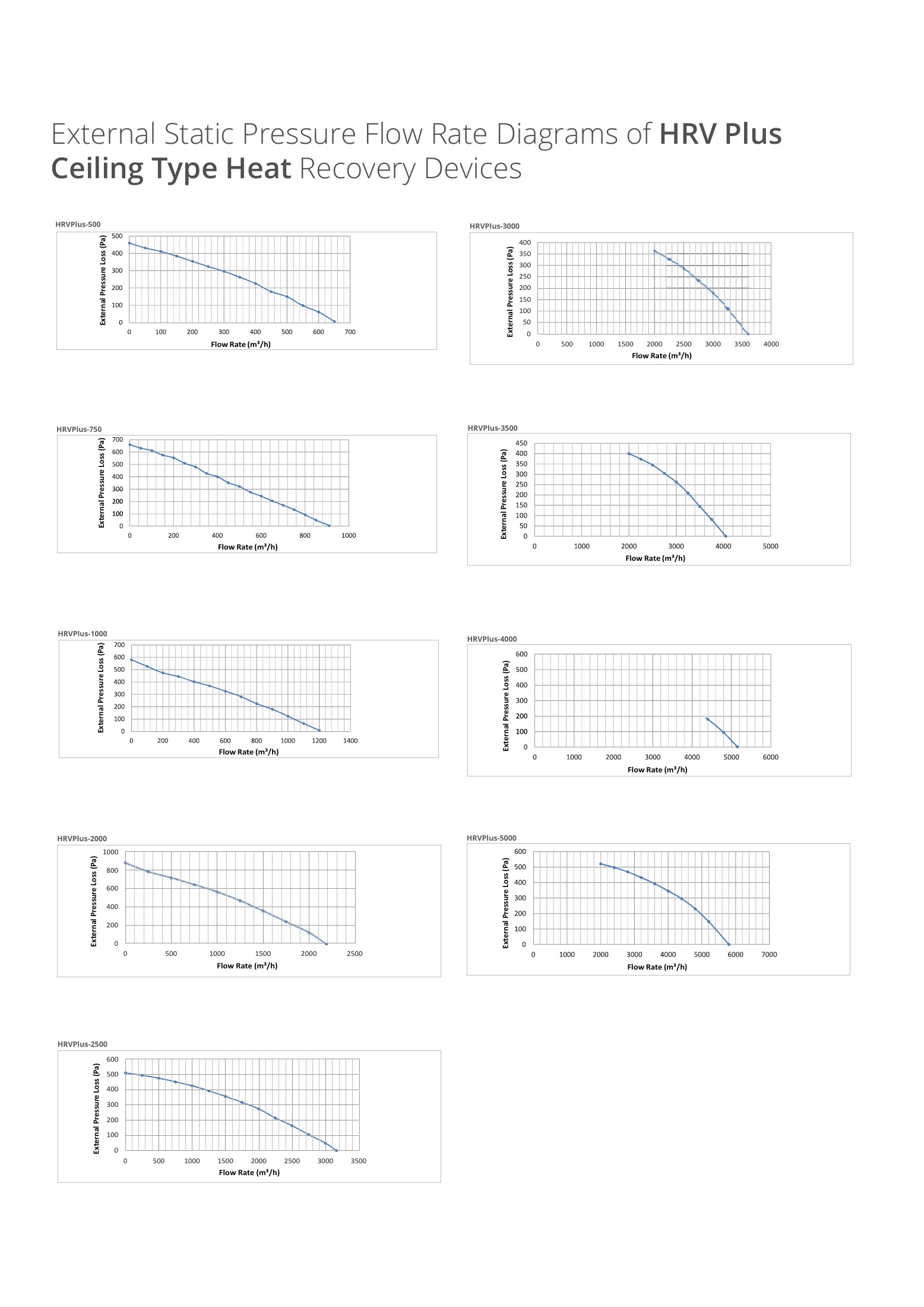

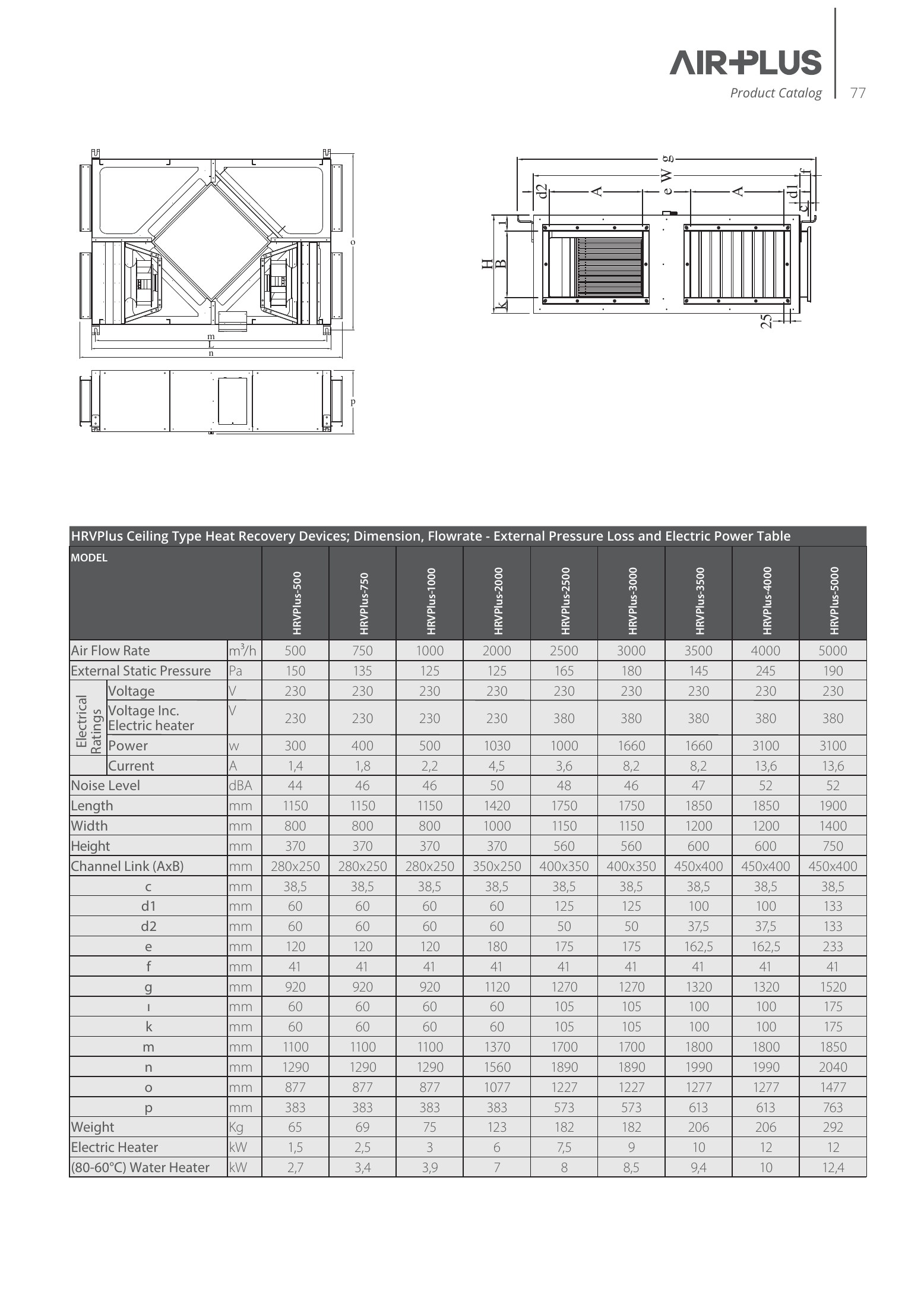

Technical drawings and catalogue data 1

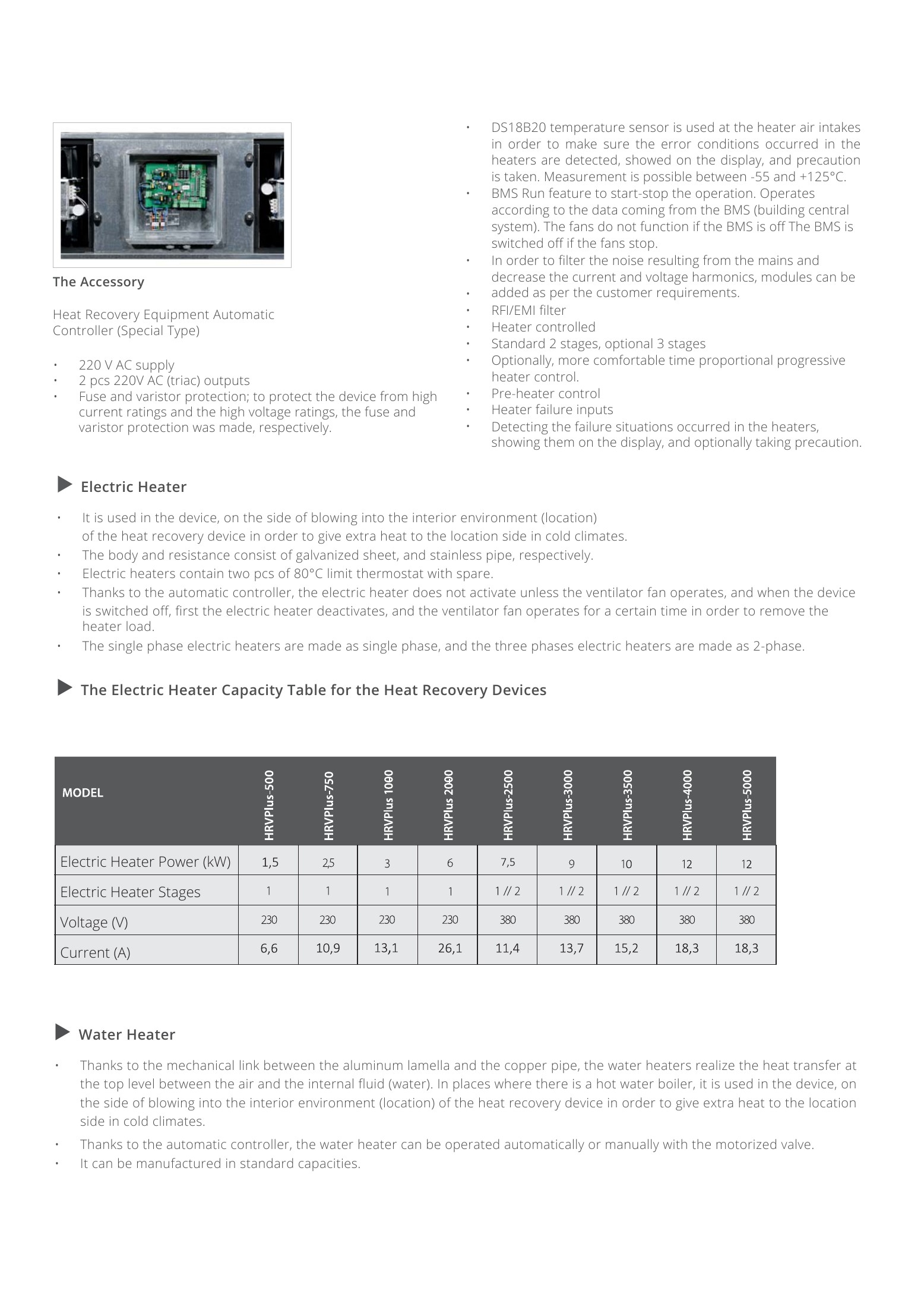

Technical drawings and catalogue data 2

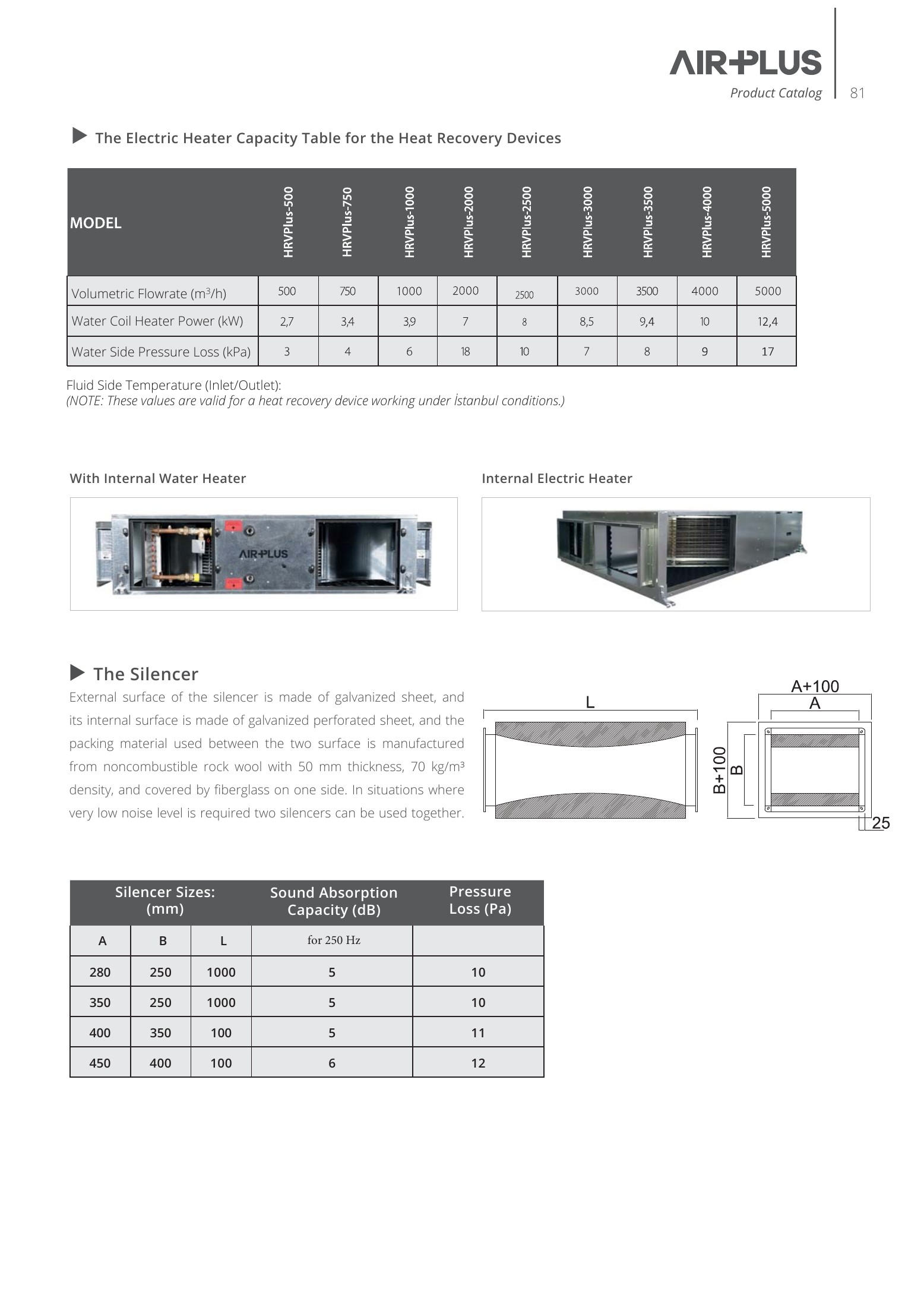

Technical drawings and catalogue data 3
Technical drawings and catalogue data 4
