An environmentally friendly air conditioning solution.
Operating with 100% fresh air, this system is ideal for regions with low relative humidity during the summer months, refreshing and exhausting the air simultaneously.
Developed with adiabatic cooling technology, it cools the air without any external heat exchange, ensuring effective cooling with minimal energy consumption. Optionally, it can also be equipped with heating modules powered by natural gas, hot water, thermal oil, or steam for enhanced flexibility.
Additional Features
Energy Efficiency
Ergonomic Design
Low Operating Cost
Filtration & Air Quality Control
Easy Installation & Compact Structure
Easy Maintenance & Service Access
User-Friendly Interface
High Sealing Performance & Durable Housing
Advanced Technology
Technical data — Models and specifications
Models and technical data
| Feature | AP-IGK-A-4500 | AP-IGK-A-6000 | AP-IGK-A-7500 | AP-IGK-A-10500 | AP-IGK-A-13500 | AP-IGK-A-16000 | AP-IGK-A-21500 | AP-IGK-A-28000 | AP-IGK-A-33000 |
|---|---|---|---|---|---|---|---|---|---|
| Airflow (m³/h) | 4500 | 6000 | 7500 | 10500 | 13500 | 16000 | 21500 | 28000 | 33000 |
| W (mm) | 1570 | 1570 | 1570 | 1570 | 1590 | 1590 | 1950 | 3100 | 3100 |
| H (mm) | 1680 | 1680 | 1680 | 2280 | 2580 | 2880 | 3380 | 3580 | 3780 |
| L (mm) | 4320 | 4510 | 4790 | 5430 | 6310 | 7100 | 7520 | 6510 | 7030 |
| Weight (kg) | 1450 | 1570 | 1690 | 2100 | 2530 | 2990 | 4050 | 5150 | 5790 |

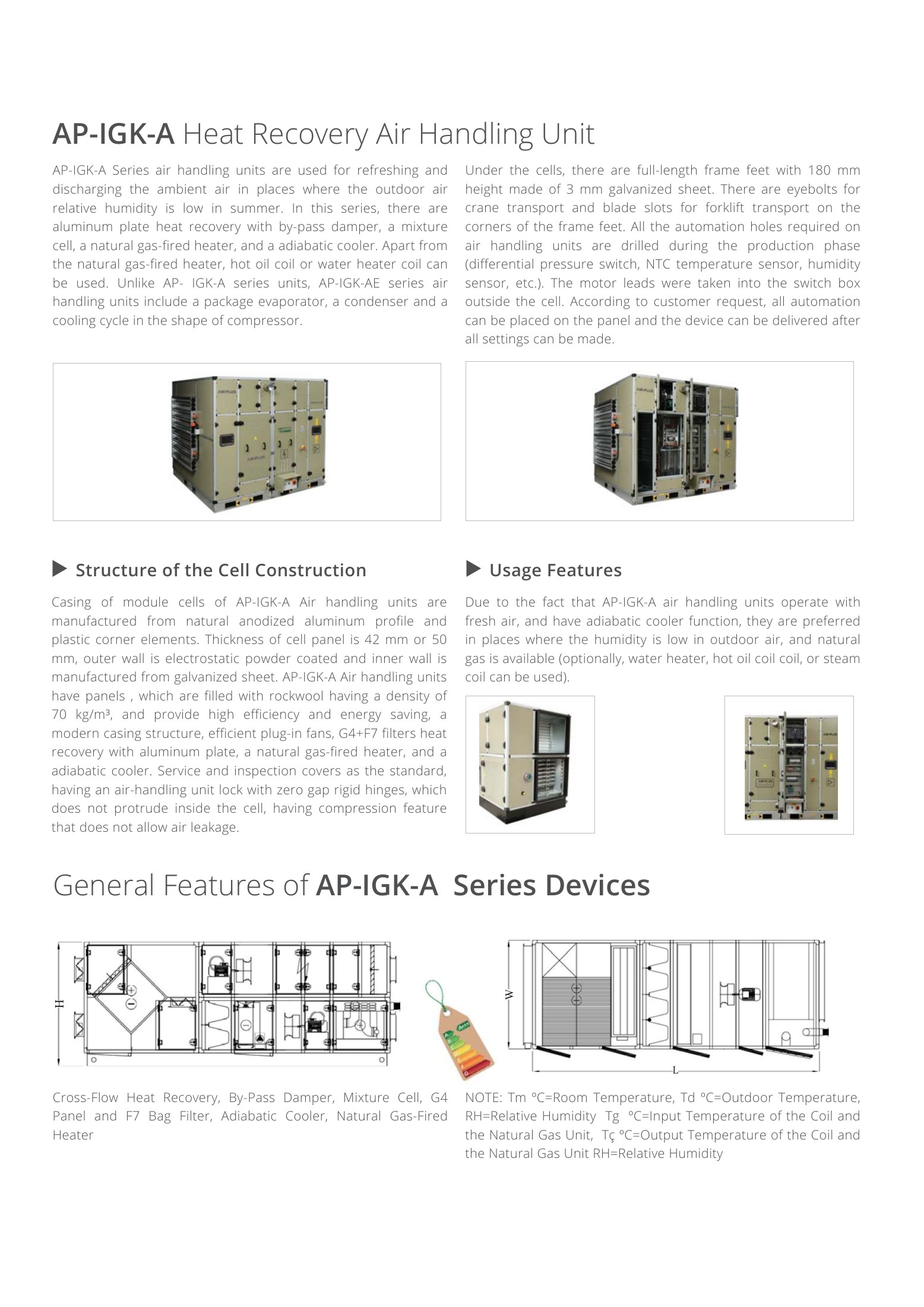

Technical drawings and catalogue data 1

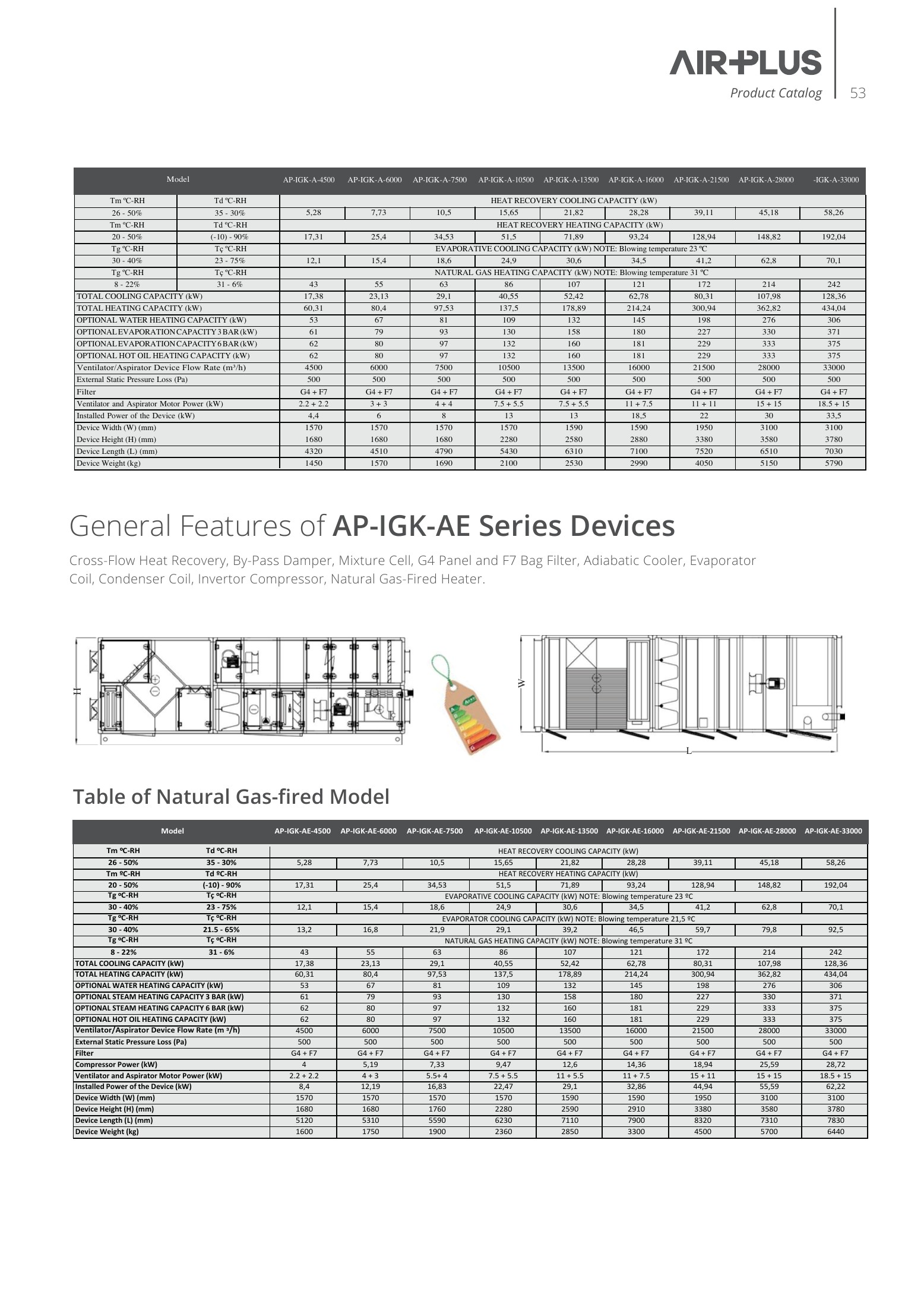

Technical drawings and catalogue data 2
