In-Floor Convector

A powerful and aesthetic climate control solution that complements modern architecture.

A modern climate control solution that provides efficient heating and cooling without compromising the architectural integrity of large glass-façade buildings.

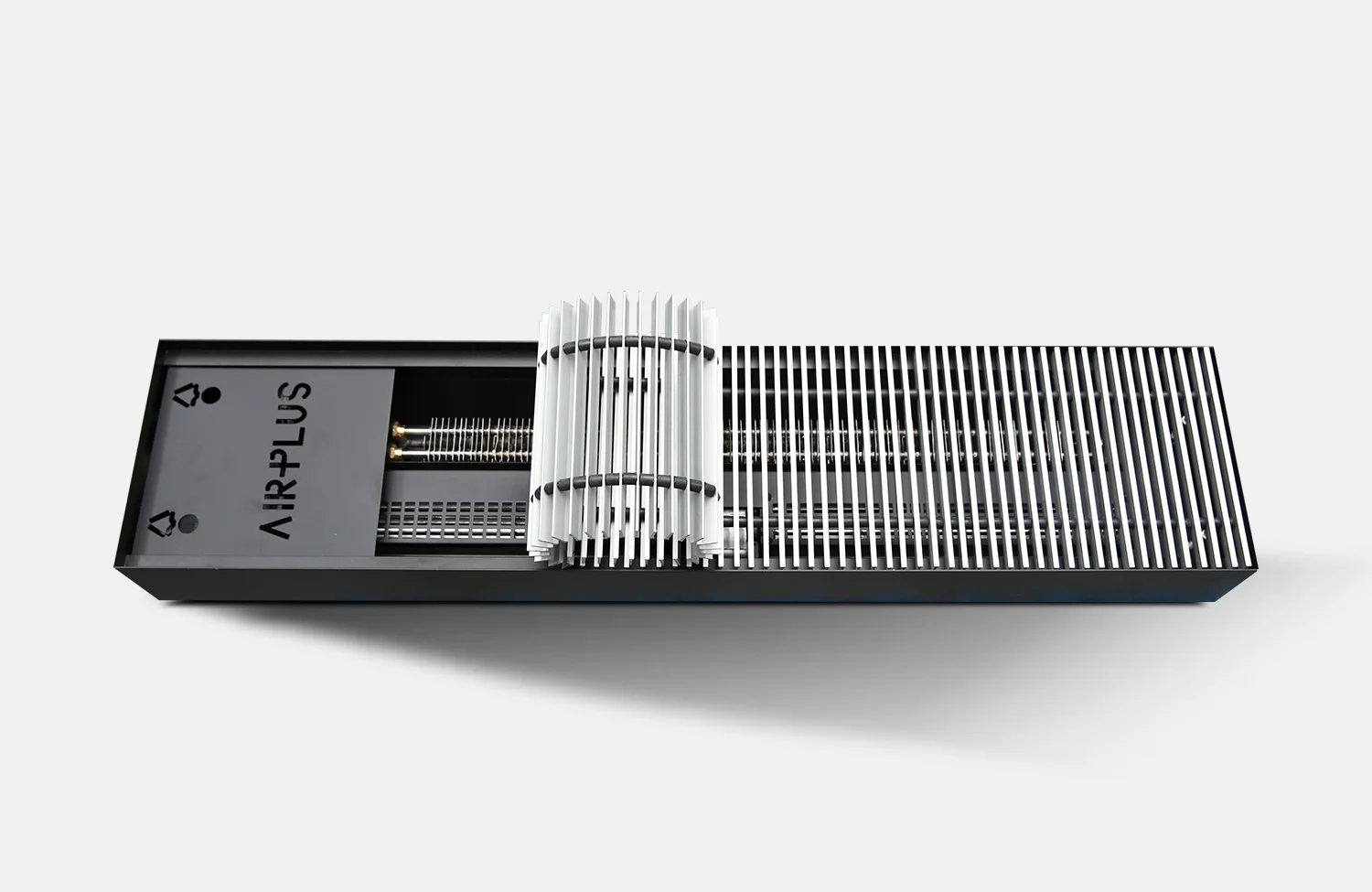

In-Floor Convector (With Fan / Without Fan)

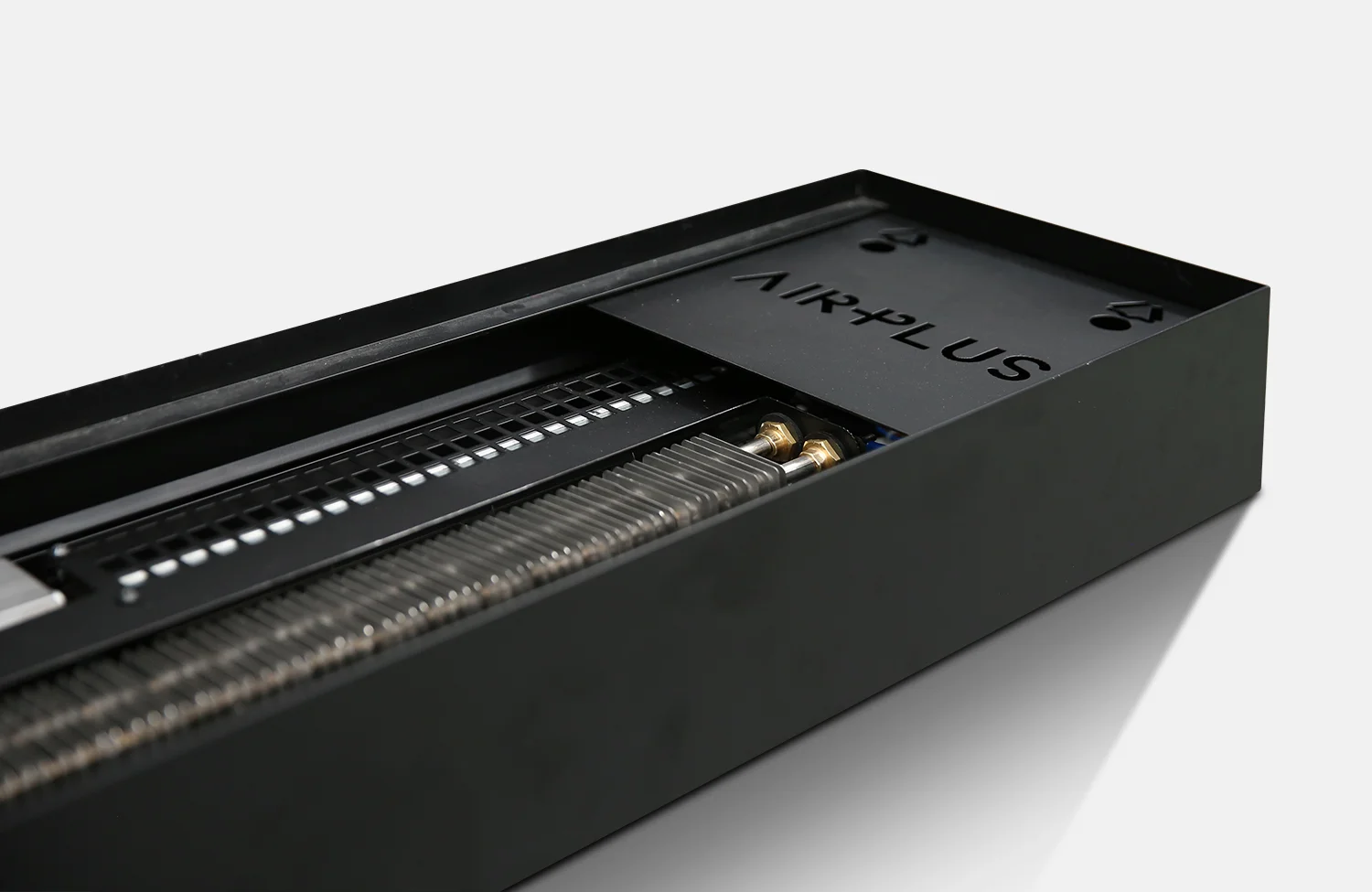

In-Floor Convector (With Fan / Without Fan) (2)

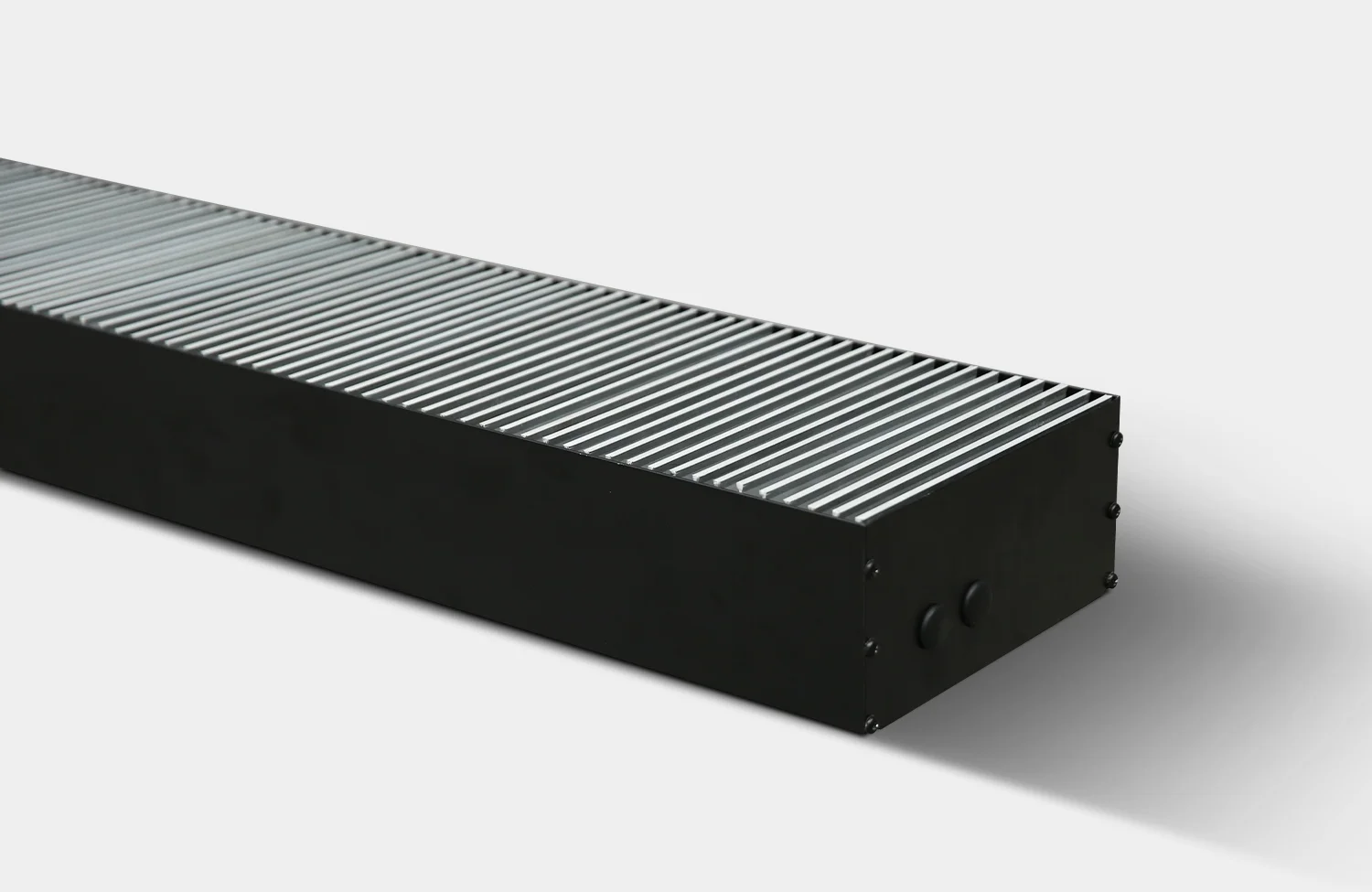

In-Floor Convector (With Fan / Without Fan) (3)

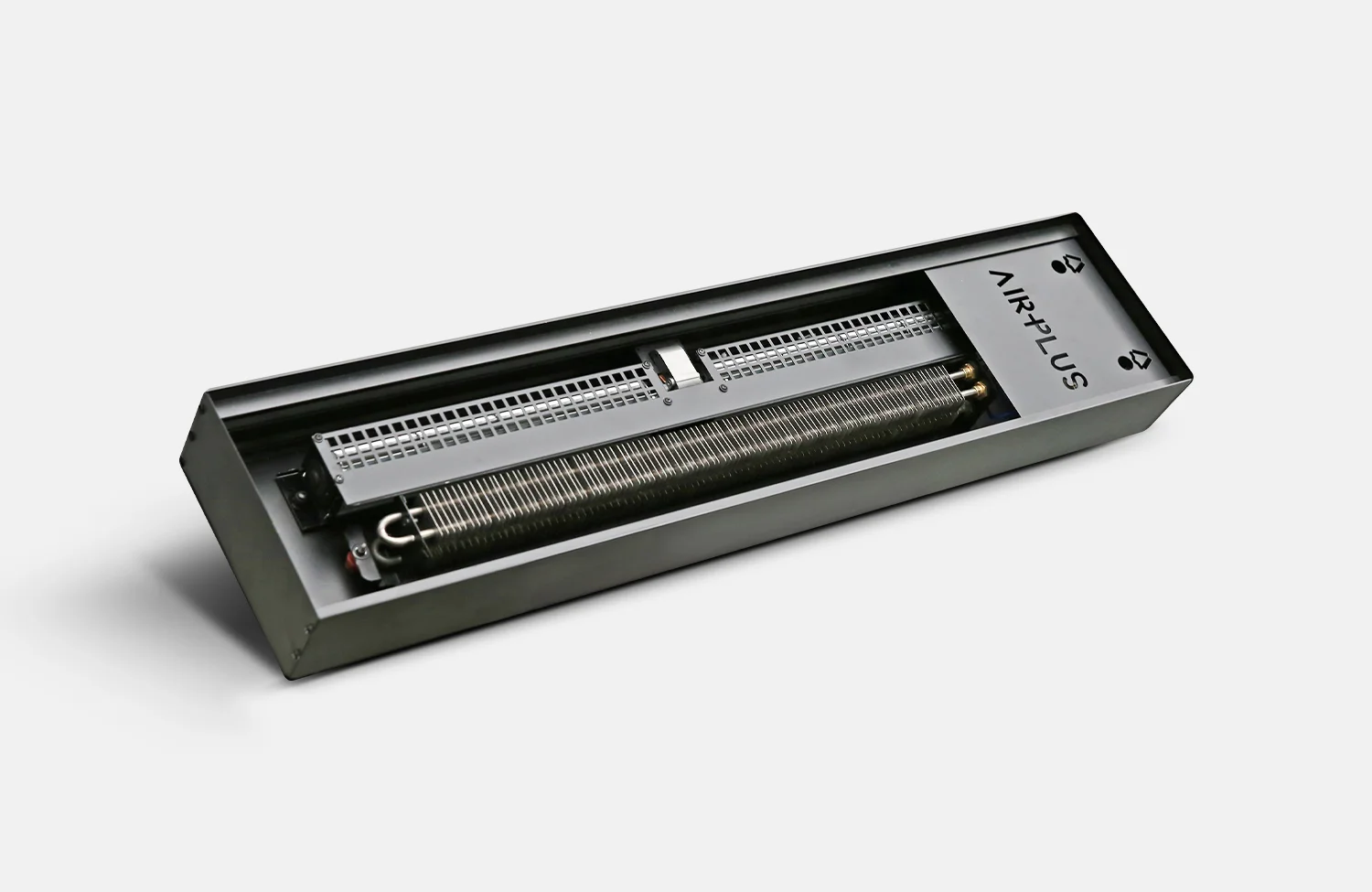

In-Floor Convector (With Fan / Without Fan) (4)

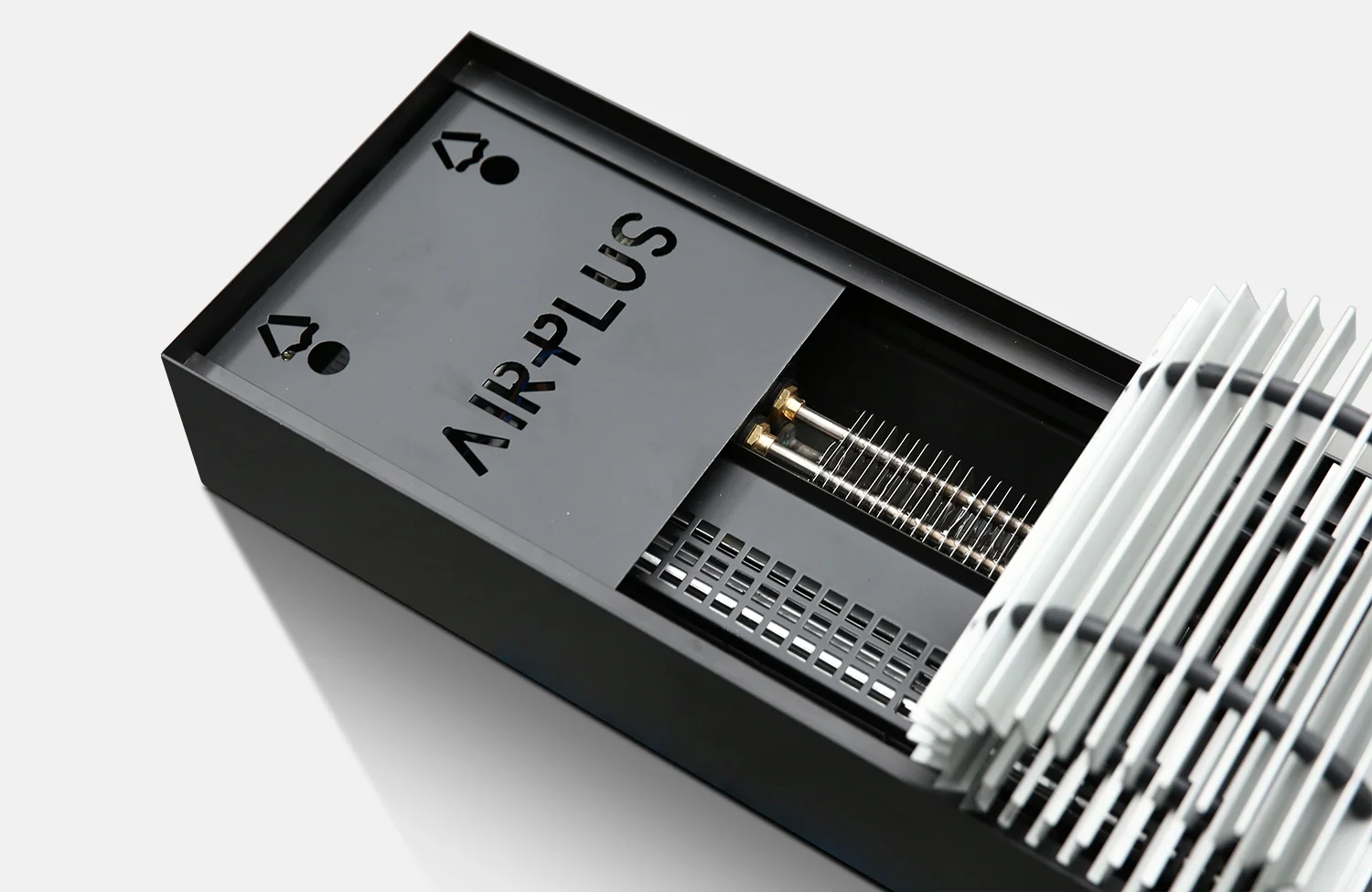

In-Floor Convector (With Fan / Without Fan) (5)
This unit can be integrated with radiators, underfloor heating, or central air conditioning systems, and is specifically designed to minimize heat loss and improve comfort in glass-façade buildings.

Additional Features

Energy Efficiency

Ergonomic Design

Flexible Application Range

Low Operating Cost

Filtration & Air Quality Control

Modular Production

Easy Installation & Compact Structure

Easy Maintenance & Service Access

User-Friendly Interface

High Sealing Performance & Durable Housing

Advanced Technology

Technical data — Model options

AP.C natural-convection (fanless), AP.FC fan-assisted and AP.MFC mini-fan series are floor-recessed convector options for glazed façades. Heating and cooling capacities are listed below with their respective operating conditions.

Three product series
SeriesOperationModels
AP.CNatural convection / fanlessC21, C41, C61, C22, C42, C62
AP.FCFan-assisted, 230 VFC21, FC41, FC61, FC22, FC42, FC62
AP.MFCMini fan, 230 VMFC21, MFC41, MFC61

AP.C — Fanless floor convector

Operates by natural air convection and can supplement radiators, underfloor heating or air handling units.

Casing dimensions
ModelWidth × height (mm)
C21200×85
C41245×85
C61345×85
C22200×115
C42245×115
C62345×115
Heating capacity (W) — Water 90 / 70°C · Ambient 20°C
Heating capacity (W) — Water 90 / 70°C · Ambient 20°C
Casing length (mm)C21C41C61C22C42C62
1000205409646289583864
12502705828324097941184
1500344762106852810421483
1750410936127264712281760
20005131108149078314342078
22506161293170889816602396
250070014641940103218872715
275079616352142114620923075
300089018192375126022983394
Heating capacity (W) — Water 80 / 60°C · Ambient 20°C
Heating capacity (W) — Water 80 / 60°C · Ambient 20°C
Casing length (mm)C21C41C61C22C42C62
1000170338512242482724
1250223458674343662999
15002856058794308761254
1750338762105452710361491
2000399910123964912121762
22504651068142475014052033
25005431213162086515982304
27506351357179196317732611
300072015131986106119482882
Heating capacity (W) — Water 70 / 55°C · Ambient 20°C
Heating capacity (W) — Water 70 / 55°C · Ambient 20°C
Casing length (mm)C21C41C61C22C42C62
1000144287434204406607
1250190389571289556838
15002425157433637351051
17502876458904448691248
2000339770104554610161475
2250396903120063011771702
25004651025136572613381929
27505401146150980814852185
30006111277167389016312412
Heating capacity (W) — Water 55°C · Ambient 20°C
Heating capacity (W) — Water 55°C · Ambient 20°C
Casing length (mm)C21C41C61C22C42C62
100091182276134269397
1250120247349190340542
1500153311441238437696
1750182376530287520836
2000215440648342639993
22502485217593917511150
25002776208734468691305
27503107109725039681481
3000343802108356810791636
Cooling capacity (W) — Water 7 / 12°C · Ambient 27°C

Each cell: total / sensible cooling capacity (W).

Cooling capacity (W) — Water 7 / 12°C · Ambient 27°C
Casing length (mm)C21C41C61C22C42C62
100060/54122/105188/157100/70206/141309/209
125080/70166/142241/196140/100276/189420/285
1500100/90209/179305/247177/125358/246555/368
1750119/106253/216362/292213/150427/291679/445
2000141/125296/253439/347253/180530/353814/531
2250162/145343/293540/410289/205629/416947/616
2500181/161391/331633/473330/234726/4771079/700
2750203/181479/386713/527366/260813/5321226/795
3000224/200557/438801/587423/294900/5881358/880
Hydraulic data and original technical table
AP.C — capacity, water volume and pressure drop table
AP.C — capacity, water volume and pressure drop table

AP.FC — Fan-assisted floor convector

Tangential fan with a 45 mm rotor and 230 V supply. The catalogue specifies two fan speeds: 1250 and 1630 rpm.

Casing dimensions
ModelWidth × height (mm)
FC21245×115
FC41345×115
FC61415×115
FC22245×115
FC42345×115
FC62415×115
Heating capacity (W) — Water 90 / 70°C · Ambient 20°C
Heating capacity (W) — Water 90 / 70°C · Ambient 20°C
Casing length (mm)FC21 / Speed 1FC21 / Speed 2FC41 / Speed 1FC41 / Speed 2FC61 / Speed 1FC61 / Speed 2FC22 / Speed 1FC22 / Speed 2FC42 / Speed 1FC42 / Speed 2FC62 / Speed 1FC62 / Speed 2
1250128515231998240624422981249030163366420338364880
1500152018092255273827083330279434163648460440825255
1750213325203146378937924627391747475178647257417298
2000235427933398411540534971421351405457686960017692
2250297035134288517351346276533564816814852177469871
25003186378445365497539266175629687071068934800110261
275038104507543665646484792667628218862410788965012288
300040234776568468826741826470568604891311196991212688
Heating capacity (W) — Water 80 / 60°C · Ambient 20°C
Heating capacity (W) — Water 80 / 60°C · Ambient 20°C
Casing length (mm)FC21 / Speed 1FC21 / Speed 2FC41 / Speed 1FC41 / Speed 2FC61 / Speed 1FC61 / Speed 2FC22 / Speed 1FC22 / Speed 2FC42 / Speed 1FC42 / Speed 2FC62 / Speed 1FC62 / Speed 2
125095111431603193319932431200924322779346231944053
1500117514061830221922242732227527793027381134134382
1750168519942566308831203804320338774299536147666042
2000188122322782336533464100345842144543570449996390
2250238928243519424042405178439053225629702464548201
2500257430533731451344635471464156555887738366808543
27503089365144765394536765525582677071488921802510190
30003271387746865664558868445832710074019274825910542
Heating capacity (W) — Water 70 / 55°C · Ambient 20°C
Heating capacity (W) — Water 70 / 55°C · Ambient 20°C
Casing length (mm)FC21 / Speed 1FC21 / Speed 2FC41 / Speed 1FC41 / Speed 2FC61 / Speed 1FC61 / Speed 2FC22 / Speed 1FC22 / Speed 2FC42 / Speed 1FC42 / Speed 2FC62 / Speed 1FC62 / Speed 2
12508329971374165616962073171620812356294026983429
1500101612151561189618902325193923692561322928773701
1750145117182188263626523237272733063639454540285117
2000161419172369287128403485294235873840483042195403
2250204824232996361536014402373245324770596354506938
2500220426173174384737864647394348094980626156357220
2750264331273807459445515567474257606052756667798625
3000279633173984482447385811495160346258786069718915
Heating capacity (W) — Water 55 / 40°C · Ambient 20°C
Heating capacity (W) — Water 55 / 40°C · Ambient 20°C
Casing length (mm)FC21 / Speed 1FC21 / Speed 2FC41 / Speed 1FC41 / Speed 2FC61 / Speed 1FC61 / Speed 2FC22 / Speed 1FC22 / Speed 2FC42 / Speed 1FC42 / Speed 2FC62 / Speed 1FC62 / Speed 2
1250341373702890996122394211581459181417252179
1500403444882108711451411112813861616202918652381
17505568331295156416351991163719792311287025343205
200082710151428173017702166179521842459307526893423
2250113013501828220322552747229827792961368534894414
2500125114931954236223852918244829763124390836354625
2750153218162356283728753504295735773814474243005442
3000164319512478299230023670310437683969495744545658
Cooling capacity (W) — Water 7 / 12°C · Ambient 27°C

Each cell: total / sensible cooling capacity (W).

Cooling capacity (W) — Water 7 / 12°C · Ambient 27°C
Casing length (mm)FC21 / Speed 1FC21 / Speed 2FC41 / Speed 1FC41 / Speed 2FC61 / Speed 1FC61 / Speed 2FC22 / Speed 1FC22 / Speed 2FC42 / Speed 1FC42 / Speed 2FC62 / Speed 1FC62 / Speed 2
1250237/237262/262415/415541/541610/610762/762566/566720/720981/8201201/10461233/9361524/1203
1500277/277310/310534/534677/677717/692881/872701/678867/8541128/8881387/11381378/10021717/1294
1750362/362449/449809/809988/9881037/9961257/12391045/9881260/12261045/9881964/16211769/13802196/1781
2000484/484635/635891/8911090/10901143/10581382/13271167/10571408/13211753/13462144/17121929/14502403/1877
2250713/713865/8651148/11451393/13931459/13561757/16901504/13581801/16851999/16592449/21172505/18913099/2432
2500791/791956/9561235/12121480/14891565/14161884/17721625/14231949/17732149/17292640/22122654/19583299/2526
2750976/9761168/11681493/14651794/17911885/17132262/21351966/17232348/21362632/21193210/26933043/23353772/3011
30001045/10451251/12511580/15271896/18771990/17722390/22152088/17892497/22222777/21883397/27863201/24053977/3106
Fan airflow and electrical data
230 V fan data
Casing length (mm)Speed 1: Airflow (m³/h)Speed 1: Power (W)Speed 1: Current (A)Speed 2: Airflow (m³/h)Speed 2: Power (W)Speed 2: Current (A)
1250215350,25300520,39
1500215350,25300520,39
1750323700,504501040,78
2000323700,504501040,78
2250430700,506001040,78
2500430700,506001040,78
27505381050,757501561,17
30005381050,757501561,17
Hydraulic data and original technical table
AP.FC — capacity, water volume and pressure drop table
AP.FC — capacity, water volume and pressure drop table
Section and dimensional drawings
Convector installation sections
Convector installation sections
AP.FC width, height and length drawing
AP.FC width, height and length drawing

AP.MFC — Mini-fan floor convector

Tangential fan with a 45 mm rotor and 230 V supply. The catalogue specifies two fan speeds: 1250 and 1630 rpm. The mini-fan series has an 85 mm casing height.

Casing dimensions
ModelWidth × height (mm)
MFC21220×85
MFC41300×85
MFC61380×85
Heating capacity (W) — Water 90 / 70°C · Ambient 20°C
Heating capacity (W) — Water 90 / 70°C · Ambient 20°C
Casing length (mm)MFC21MFC41MFC61
1250123619162336
1500146121602587
1750205230143622
2000263338494632
2250285941114907
2500306543465152
2750366652096193
3000387054426438
Heating capacity (W) — Water 80 / 60°C · Ambient 20°C
Heating capacity (W) — Water 80 / 60°C · Ambient 20°C
Casing length (mm)MFC21MFC41MFC61
125091115371905
1500112817522123
1750162124592982
2000210231503817
2250230033744054
2500247735744263
2750297342895129
3000314644875334
Heating capacity (W) — Water 70 / 55°C · Ambient 20°C
Heating capacity (W) — Water 70 / 55°C · Ambient 20°C
Casing length (mm)MFC21MFC41MFC61
125079813171623
150097514941805
1750139620962533
2000180726843244
2250197128723442
2500212030403617
2750254336484351
3000268938144525
Heating capacity (W) — Water 55 / 40°C · Ambient 20°C
Heating capacity (W) — Water 55 / 40°C · Ambient 20°C
Casing length (mm)MFC21MFC41MFC61
1250333658950
15003948401093
175052412391562
200094816182018
2250108517532157
2500120218742280
2750147422582749
3000158023762869
Cooling capacity (W) — Water 7 / 12°C · Ambient 27°C

Each cell: total / sensible cooling capacity (W).

Cooling capacity (W) — Water 7 / 12°C · Ambient 27°C
Casing length (mm)MFC21MFC41MFC61
1250231/231402/402579/579
1500271/271503/503683/657
1750353/353772/772994/947
2000586/5861016/10161293/1226
2250681/6811101/10941402/1291
2500757/7571184/11561503/1347
2750936/9361433/13991809/1630
30001003/10031518/14561912/1686
Fan airflow and electrical data
230 V fan data
Casing length (mm)Airflow (m³/h)Power (W)Current (A)
1250200210,1
1500200210,1
1750300420,2
2000400420,2
2250400420,2
2500400420,2
2750500630,3
3000500630,3
Hydraulic data and original technical table
AP.MFC — capacity, water volume and pressure drop table
AP.MFC — capacity, water volume and pressure drop table
Dimensional drawing
AP.MFC dimensional drawing
AP.MFC dimensional drawing

Materials, connections and control options

The natural-convection series is available with 85 and 115 mm casing heights, in single lengths up to three metres; longer installations can use joined sections. Linear grilles and casings use corrosion-resistant aluminium profiles; an aluminium frame is optional. Grille options are anodised aluminium, painted aluminium and wood. The copper-tube/aluminium-fin coil has 1/2″ inlet and outlet connections, a 4 mm fin pitch and 40×35 mm geometry. Drain and air vents are on the fixed brass fitting outside the casing. The coil can be removed after disconnecting the pipework. Cooling can be provided with a drain pan to suit the project.

The electronic board provides on/off valve control and three-stage tangential fan control. Automatic speed selection follows the difference between room temperature and setpoint. Supply is 230 V; one room panel can manage up to eight convector control boards. Optional five-stage control, weekly scheduling and central-system connection are listed in the catalogue. The two-way electrothermal valve is specified for maximum 95°C water temperature, 16 bar and 230 V / 50 Hz / 2.5 W.

Installation details

Nine installation steps
  1. Position according to the finished floor height.
  2. Place the convector as designed and adjust the levelling bolts.
  3. Check alignment using a spirit level.
  4. Connect the water circuit and, for fan models, the electricity; check before screeding.
  5. Use two spanners and PTFE tape when connecting the coil pipework.
  6. Space the temporary supports evenly in the casing.
  7. Fit a separator to keep construction debris out and screed around the casing.
  8. Fill the system with water, start it and vent air at the coil inlet.
  9. After the concrete dries, remove the temporary supports and fit the linear grille.
Catalogue installation drawings
Catalogue installation drawings
