High efficiency, low energy consumption — comfort powered by the water source.

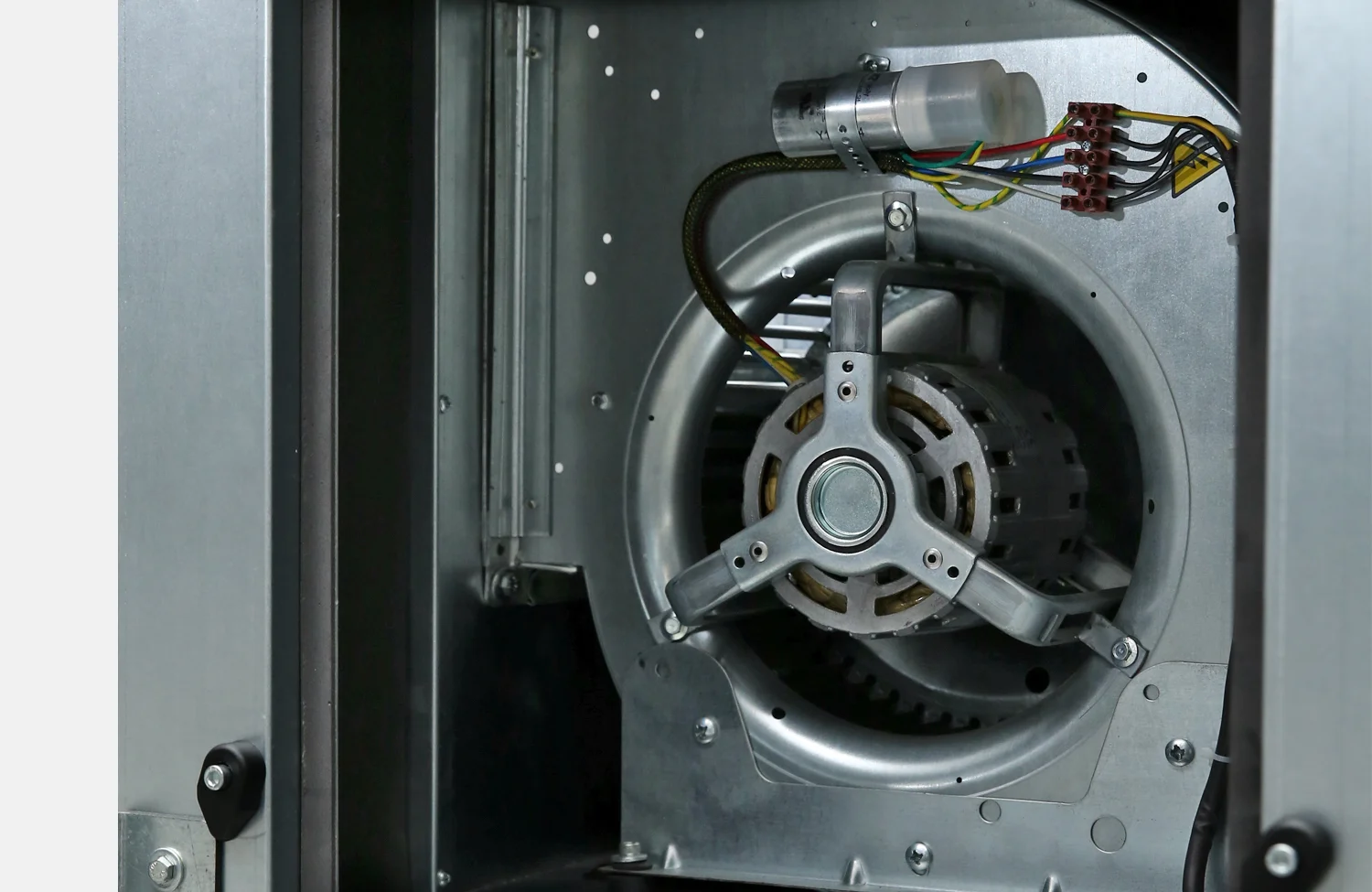

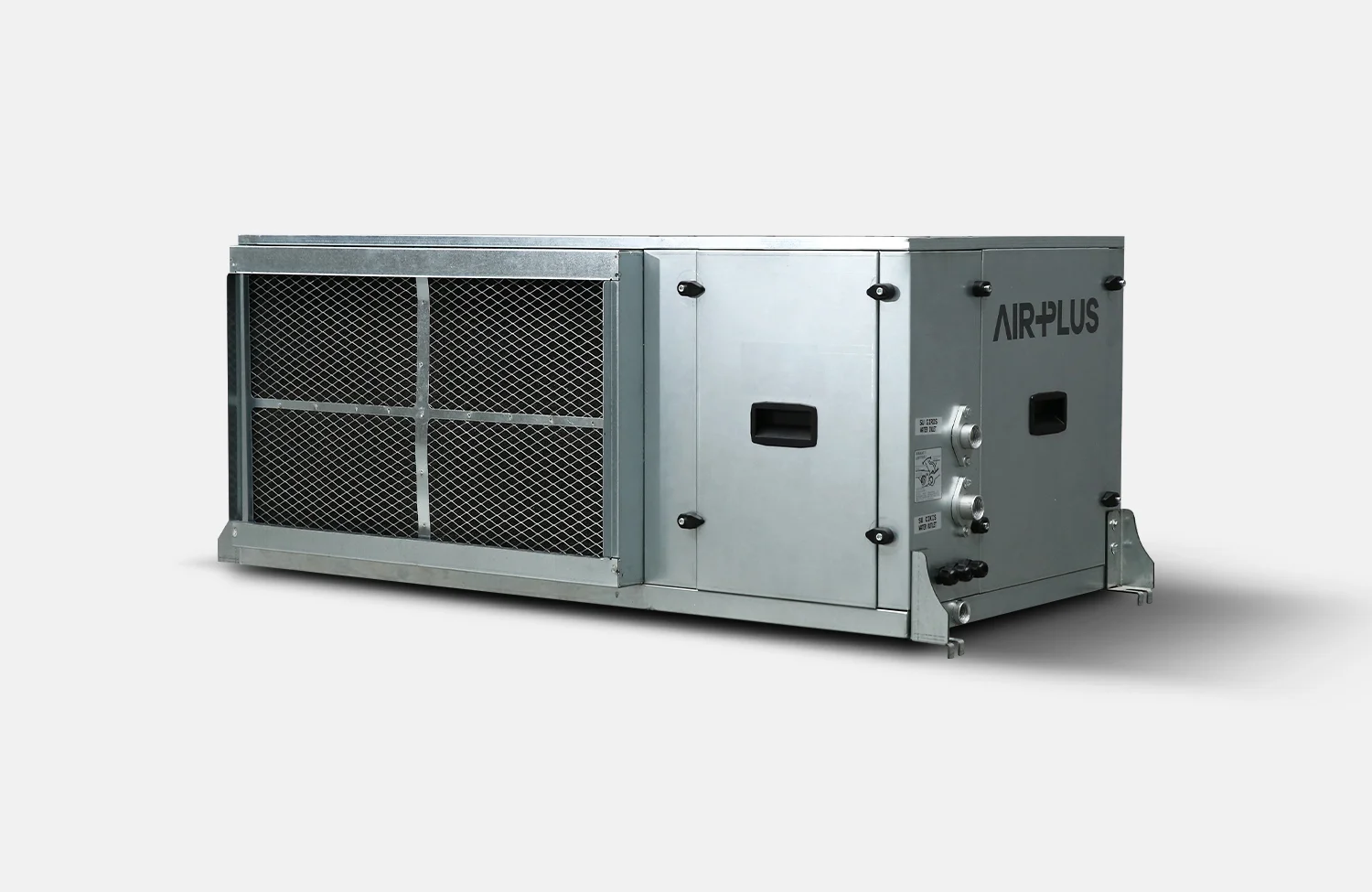

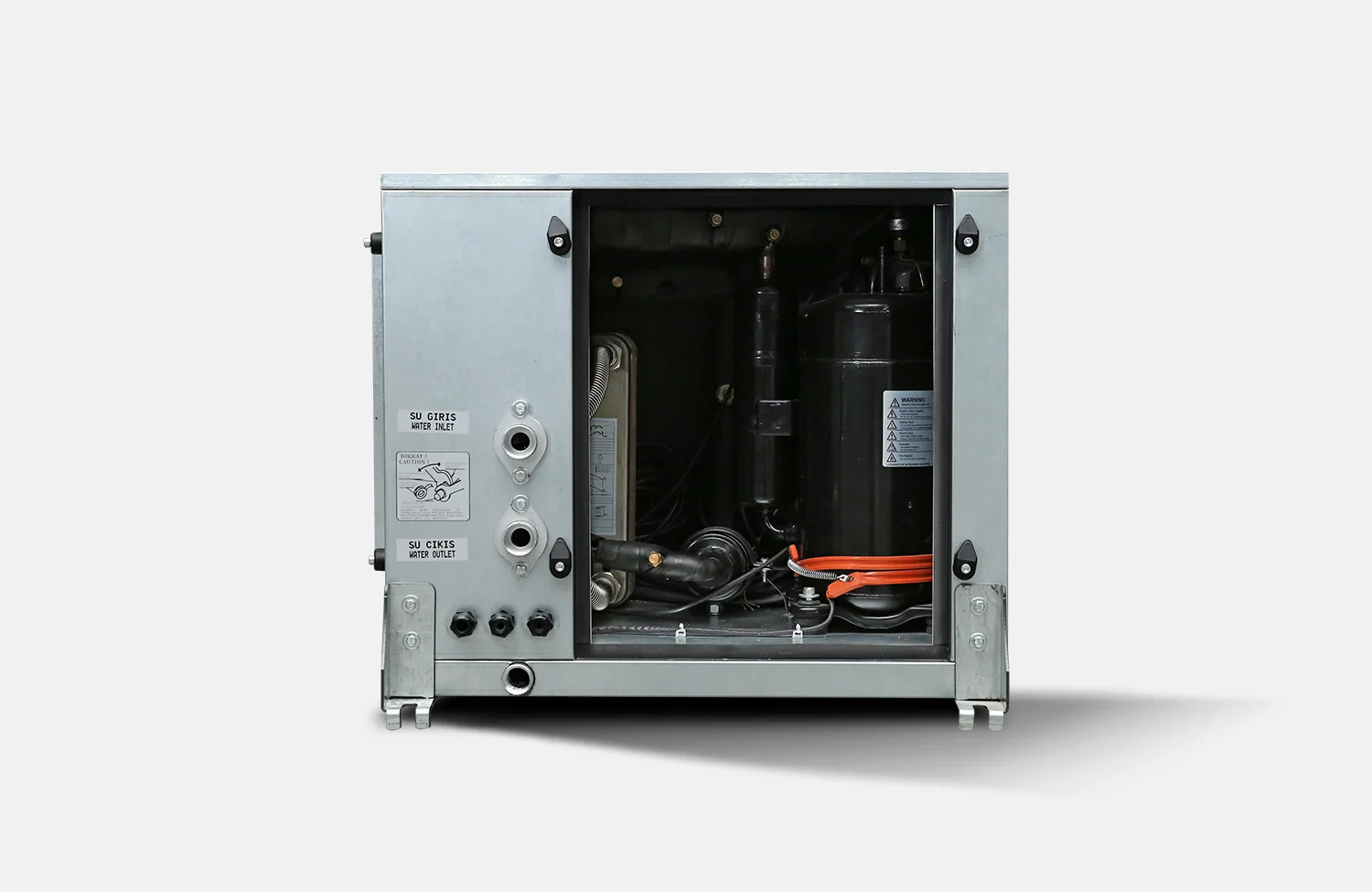

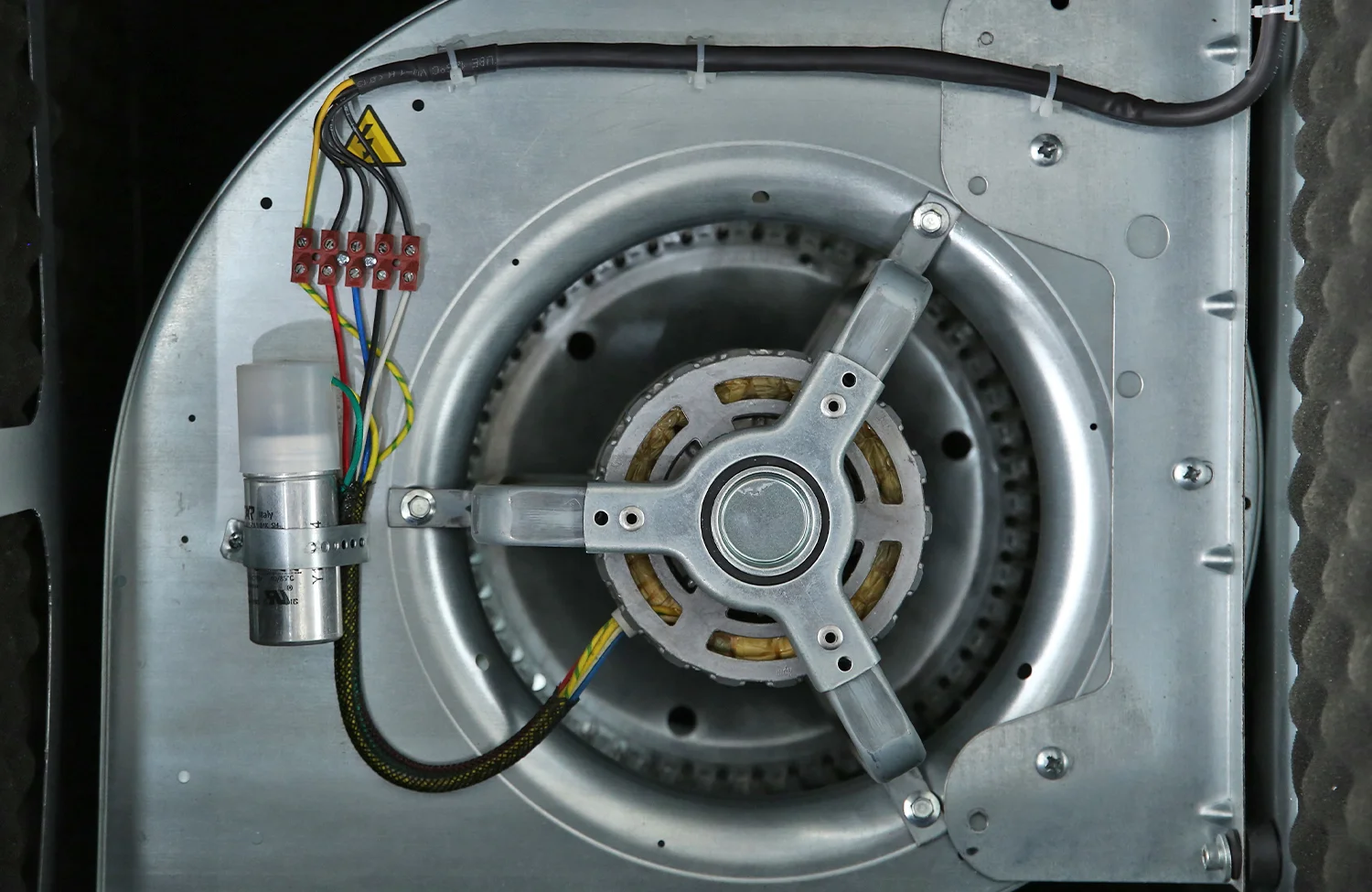

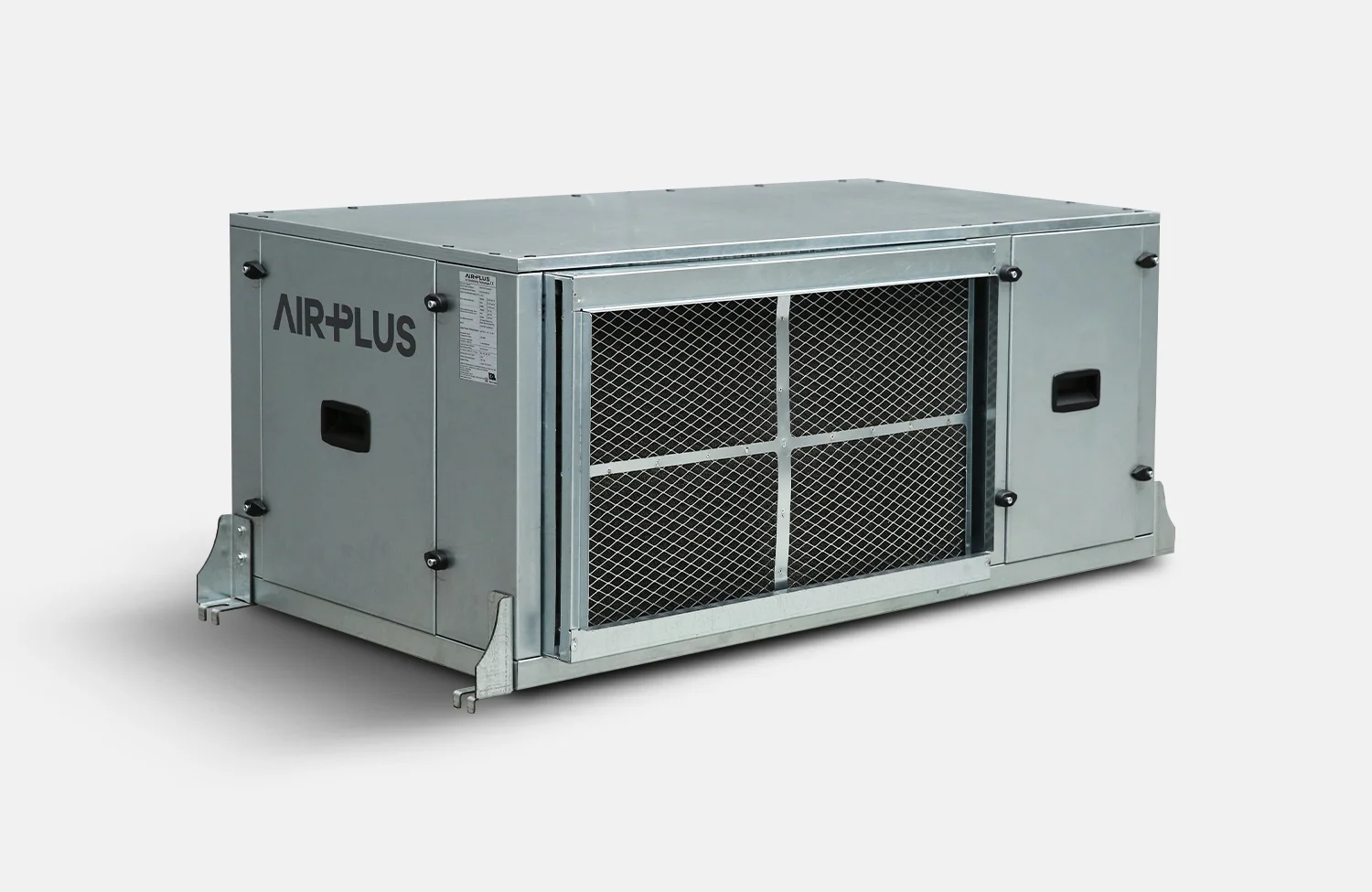

The WSHP is a packaged DX air conditioning system that both heats and cools the air, with its condenser cooled by water.
Operating within a closed-loop circuit, it ensures high energy efficiency and low operating costs throughout the year. Its compact design and durable components deliver a sustainable comfort solution built for long-term performance.
Additional Features
Energy Efficiency
Ergonomic Design
Low Operating Cost

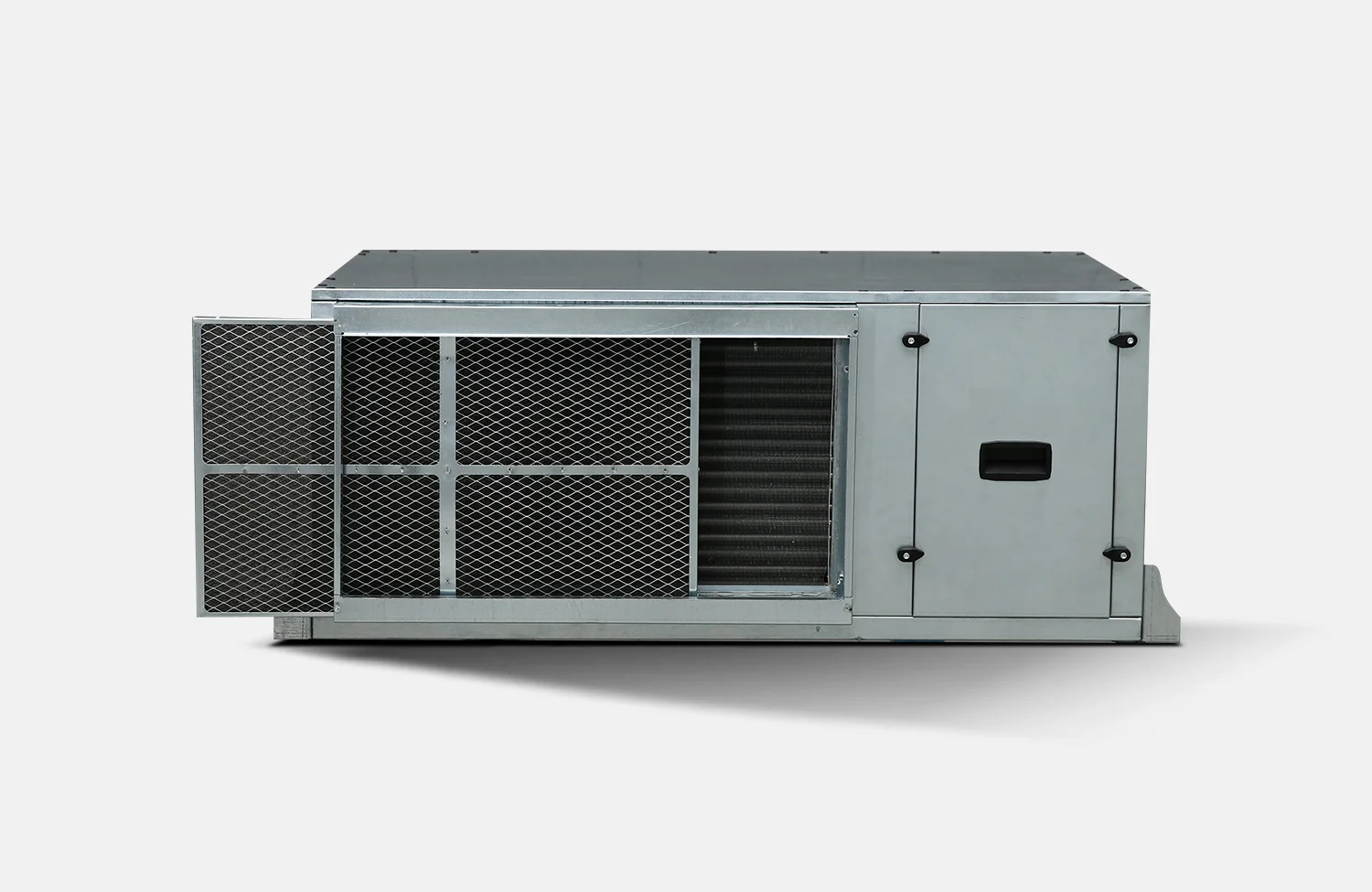

Filtration & Air Quality Control
Easy Installation & Compact Structure
Easy Maintenance & Service Access
User-Friendly Interface
High Sealing Performance & Durable Housing
Advanced Technology
Technical data — Models and specifications
Models and technical data
| Feature / condition | AP-WSHP-TT-6 | AP-WSHP-TT-8 | AP-WSHP-TT-10 | AP-WSHP-TT-12 | AP-WSHP-TT-16 | AP-WSHP-TT-24 | AP-WSHP-TT-32 |
|---|---|---|---|---|---|---|---|
| Unit airflow — m³/h - High m³/h - Medium m³/h - Low | 1.000 930 875 | 1.320 1.180 1.025 | 1.800 1.680 1.545 | 2.350 2.100 1.925 | 2.850 2.600 2.520 | 4.700 4.200 3.850 | 5.700 5.200 5.400 |
| External pressure loss — Pa - High Pa - Medium Pa - Low | 150 120 100 | 150 120 100 | 150 120 100 | 150 120 100 | 150 120 100 | 150 120 100 | 150 120 100 |
| Fan speed — Steps | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Maximum fresh-air ratio (%) — | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| T_d (°C-RH) — T_m (°C-RH) | COOLING CAPACITY (kW) | None | None | None | None | None | None |
| Cooling (kW), Td 34°C/50% — Tm 27°C/50% | 5,76 | 8,00 | 10,00 | 11,8 | 15,45 | 23,60 | 30,90 |
| Operating water temperature — °C | 30 - 35 | 30 - 35 | 30 - 35 | 30 - 35 | 30 - 35 | 30 - 35 | 30 - 35 |
| T_d (°C-RH) — T_m (°C-RH) | HEATING CAPACITY (kW) | None | None | None | None | None | None |
| Heating (kW), Td 7°C/80% — Tm 22°C/50% | 7,10 | 9,30 | 11,28 | 13,70 | 19,08 | 27,40 | 38,16 |
| Operating water temperature — °C | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Fan motor power — kW | 0,15 | 0,15 | 0,42 | 0,25 | 0,37 | 0,50 | 0,74 |
| Compressor power — kW | 1,58 | 2,66 | 3,16 | 3,43 | 3,83 | 6,86 | 7,66 |
| Compressor type / quantity — Rotary | 1 | 1 | 1 | 1 | 1 | 2 | 2 |
| Installed unit power — kW | 1,85 | 2,93 | 3,70 | 4,00 | 4,35 | 8,00 | 8,70 |
| Refrigerant — | R410A | R410A | R410A | R410A | R410A | R410A | R410A |
| Filter type / class — Cassette | G2 - Pol | G2 - Pol | G2 - Pol | G2 - Pol | G2 - Pol | G2 - Pol | G2 - Pol |
| Operating water flow — L/s | 0,30 | 0,40 | 0,60 | 0,60 | 0,8 | 1,2 | 1,6 |
| Operating water pressure loss — kPa | 41,5 | 36,3 | 29,7 | 29,3 | 56,1 | 36,1 | 51,2 |
| Water connection diameter — Inch | 3/4 '' | 3/4 '' | 3/4 '' | 1 '' | 1 '' | 1 1/4 '' | 1 1/4 '' |
| Operating voltage — Volt | 230 - 1 P - 50 Hz | 230 - 1 P - 50 Hz | 230 - 1 P - 50 Hz | 230 - 1 P - 50 Hz | 230 - 1 P - 50 Hz | 380 - 3 P - 50 Hz | 380 - 3 P - 50 Hz |
| Applicable fuse — Amp - time-delay | 6 A. | 8 A. | 12 A. | 16 A. | 20 A. | 16 A. | 16 A. |
| Unit width — W - mm | 730 | 730 | 730 | 730 | 730 | 950 | 1000 |
| Unit height — H - mm | 520 | 570 | 570 | 570 | 570 | 570 | 570 |
| Unit length — L - mm | 1070 | 1320 | 1370 | 1420 | 1520 | 1520 | 1520 |
| Air-duct connection dimensions (mm) — Air intake inlet | 466*367 | 686*417 | 716*417 | 766*417 | 866*417 | 866*417 | 866*417 |
| — Air discharge | 230*210 | 230*210 | 300*260 | 265*290 | 300*260 | 650*290 | 700*260 |

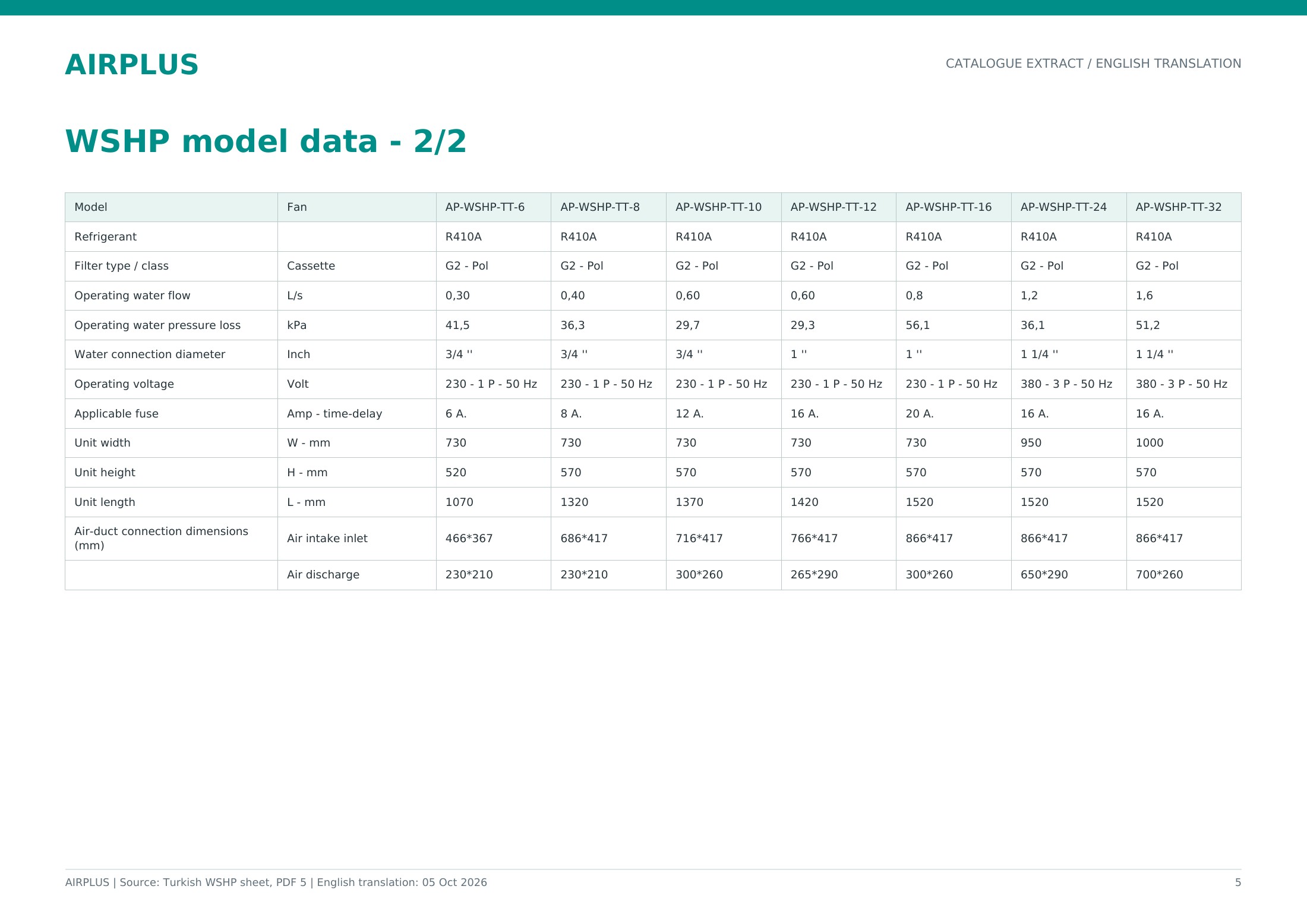

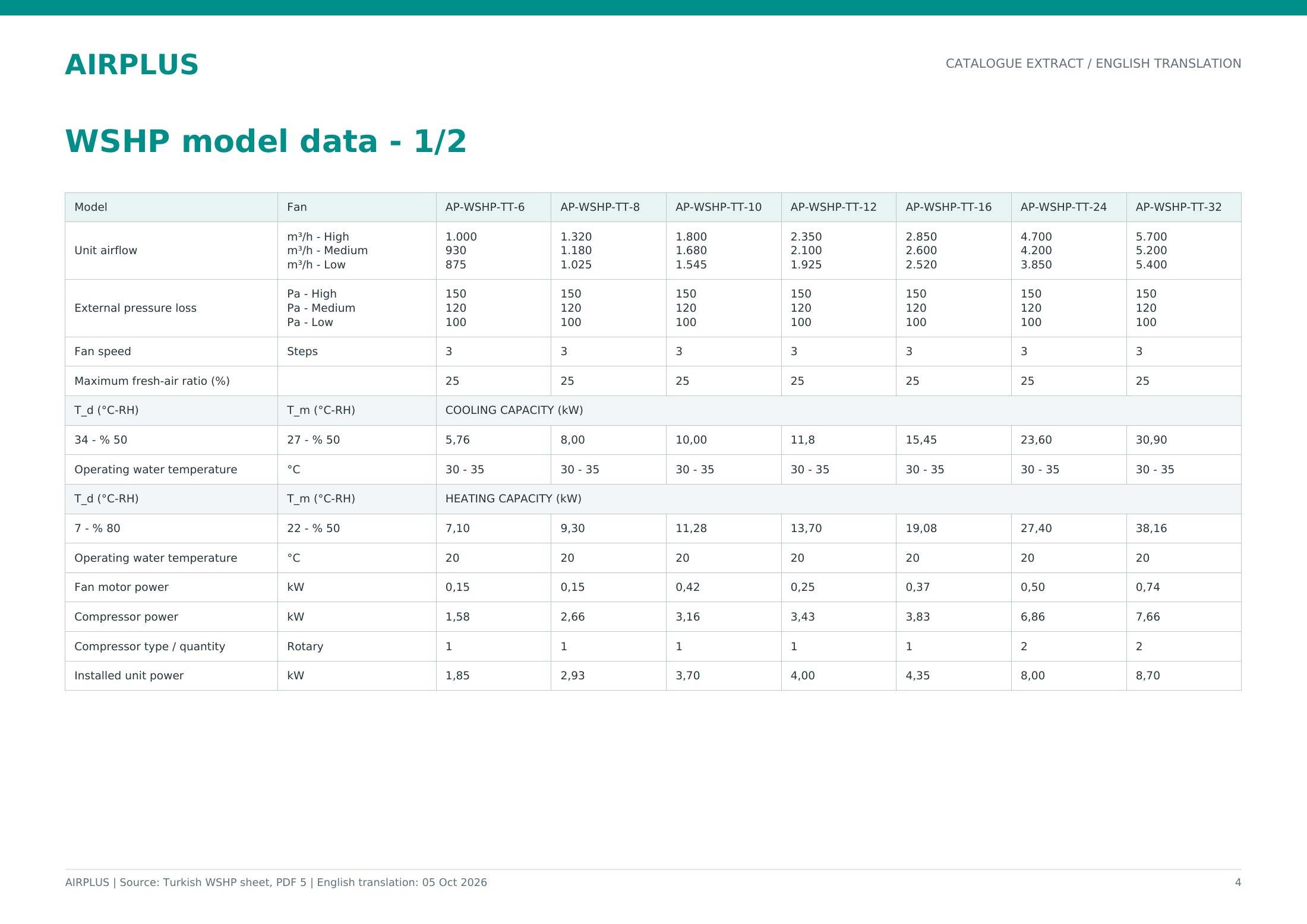

Technical drawings and catalogue data 1
Technical drawings and catalogue data 2
