AirPlus Rooftop Packaged Air Conditioner combines fresh air, mixed air, cooling and heat-pump heating in a single packaged rooftop unit for flat roof and terrace applications.
According to the AP-RT catalog data, the series provides 43.7 - 203.9 kW cooling capacity and 7,000 - 31,000 m³/h air flow rate, with EC fans, R410A refrigerant, smart defrost, free-cooling and BMS integration for professional HVAC projects.
Cooling, heat-pump heating and fresh-air control in one rooftop packaged unit
The AirPlus AP-RT series is a factory-assembled rooftop packaged air-conditioning solution designed for flat roof and terrace applications and shipped charged with R410A refrigerant. According to the catalog data, AP-RT models provide 43.7 kW to 203.9 kW cooling capacity and 7,000 - 31,000 m³/h air flow rate.
Plug & PlayR410AEC Plug FanBMS / Modbus / BACnet
- AP-RT cooling capacity
- 43.7 - 203.9 kW
- Unit air flow rate
- 7,000 - 31,000 m³/h
- External static pressure in catalog
- 500 Pa
- Refrigerant
- R410A
Product construction and application features
AP-RT rooftop units are used in large-volume buildings such as shopping malls, hypermarkets, theatres, cinemas, social facilities, airports, restaurants, conference halls and factories to meet fresh-air, mixed-air and air-conditioning requirements.
Energy-efficient fan and compressor architecture
The catalog highlights EC fans, tandem scroll compressors, EC axial condenser fans and electronic expansion valve technology.
Fresh air and free-cooling
The fresh-air ratio can be automatically adjusted between 0% and 100%. When outdoor-air conditions are suitable, the economizer/free-cooling function targets energy savings.
Multiple heating options
Heat-pump heating is standard; depending on the project, electric pre-heater, hot-water coil, steam coil or natural-gas hot-air generator options can be used.
AP-RT rooftop catalog features
Smart Defrost - uninterrupted heating
A smart defrost approach developed to reduce comfort loss during heat-pump operation in winter mode.
Automatic condenser cleaning
Automatic cleaning function designed to reduce capacity loss caused by dirt accumulation between condenser fins.
Alternative fire scenario
Selectable rooftop fire scenarios via the service menu using a dry-contact signal from the fire automation system.
Condenser fan snow-cleaning and ice-breaking mode
Preventive operating logic against snow/ice accumulation on the condenser fan under winter conditions.
Built-in web server
Access to control devices and unit data over the local network via IP address without an additional fee.
SCADA monitoring and detailed fault tracking
With optional SCADA packages, multiple rooftop units, operating values and alarms can be monitored from a single PC.
Control system, sections and options
BMS integration
Modbus TCP/IP is standard; with a communication card, Modbus RTU, BACnet-IP, BACnet-MS/TP, LonWorks and M-Bus communication can be supported.
Condenser section
Copper-tube, hydrophilic-coated aluminum-fin condenser coil; EC-motor axial fan; tandem scroll compressor operating with R410A.
Evaporator section
Copper-tube aluminum-fin evaporator coil, expansion valve, droplet eliminator, drain pan and efficient section design.
Electrical panel and microprocessor control
Microprocessor-controlled architecture for project-based scenarios, remote access and automation integration.
Optional equipment
AC motor-frequency inverter options for evaporator/condenser fans, snow sensor, winter kit, smoke detector, hot-water/steam coil and electric heater options.
Filtration
G4 filter for the AP-RT series; G4 + F7 filter information for the AP-RRT heat-recovery series is included in the catalog technical tables.

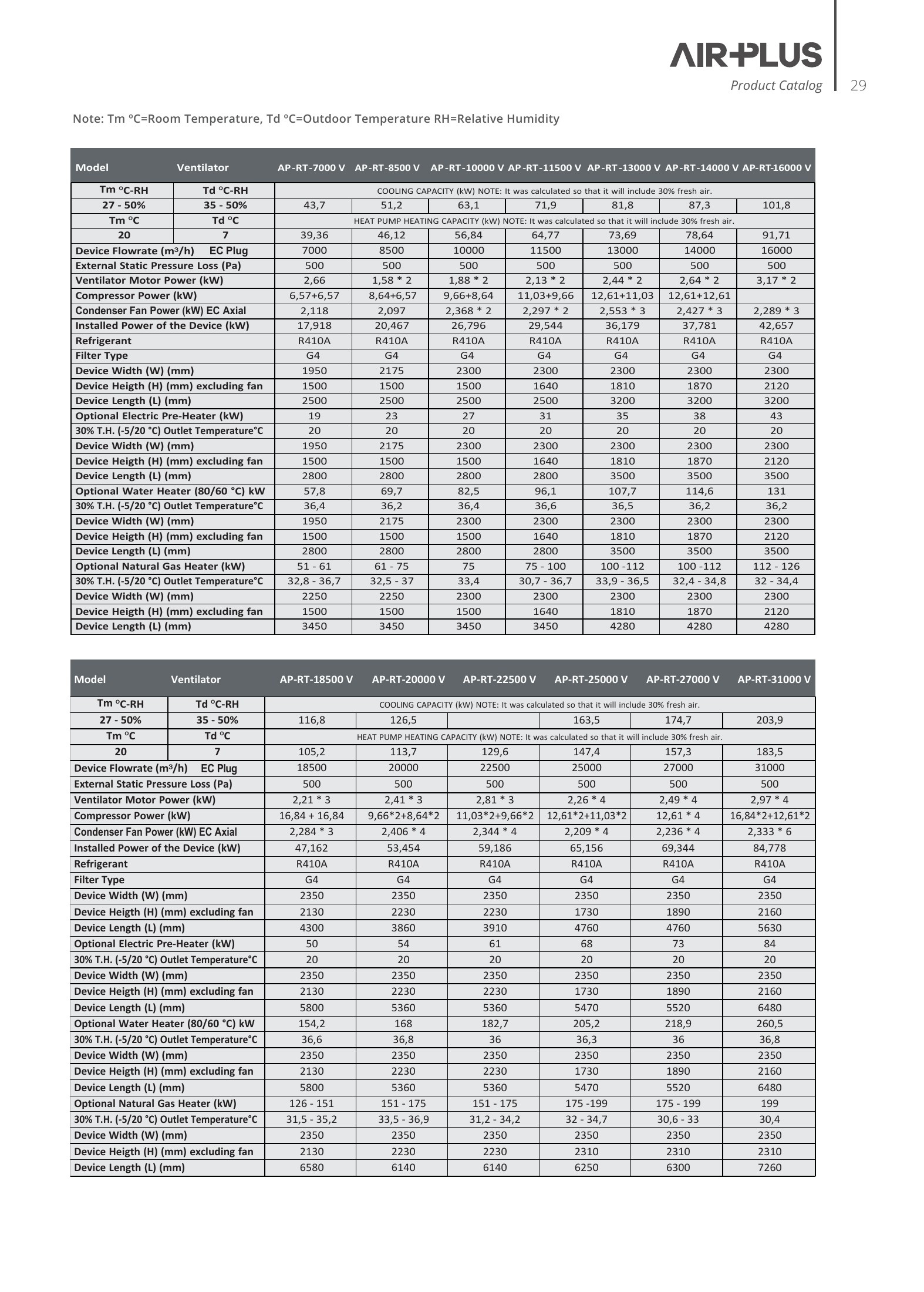

AP-RT Series - Supply-fan models
Note: Catalog conditions; Tm = room temperature, Td = outdoor ambient temperature, RH = relative humidity. Cooling values are given for 27°C/50% RH room and 35°C/50% RH outdoor ambient. Heat-pump heating values are given for 20°C room and 7°C outdoor ambient. 30% fresh air is taken as the basis.
AP-RT 7000 V - 16000 V technical performance
| Parameter | AP-RT-7000 V | AP-RT-8500 V | AP-RT-10000 V | AP-RT-11500 V | AP-RT-13000 V | AP-RT-14000 V | AP-RT-16000 V |
|---|---|---|---|---|---|---|---|
| Cooling Capacity (kW) - 27°C/%50 room, 35°C/%50 outdoor ambient | 43.7 | 51.2 | 63.1 | 71.9 | 81.8 | 87.3 | 101.8 |
| Heat Pump Heating Capacity (kW) - 20°C room, 7°C outdoor ambient | 39.36 | 46.12 | 56.84 | 64.77 | 73.69 | 78.64 | 91.71 |
| Unit Air Flow Rate (m³/h) | 7000 | 8500 | 10000 | 11500 | 13000 | 14000 | 16000 |
| External Static Pressure (Pa) | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Supply Fan Motor Power (kW) | 2.66 | 1.58 × 2 | 1.88 × 2 | 2.13 × 2 | 2.44 × 2 | 2.64 × 2 | 3.17 × 2 |
| Compressor Power (kW) | 6.57+6.57 | 8.64+6.57 | 9.66+8.64 | 11.03+9.66 | 12.61+11.03 | 12.61+12.61 | — |
| Condenser Fan Power (kW) - EC Axial | 2.118 | 2.097 | 2.368 × 2 | 2.297 × 2 | 2.553 × 3 | 2.427 × 3 | 2.289 × 3 |
| Installed Power (kW) | 17.918 | 20.467 | 26.796 | 29.544 | 36.179 | 37.781 | 42.657 |
| Refrigerant | R410A | R410A | R410A | R410A | R410A | R410A | R410A |
| Filter Type | G4 | G4 | G4 | G4 | G4 | G4 | G4 |

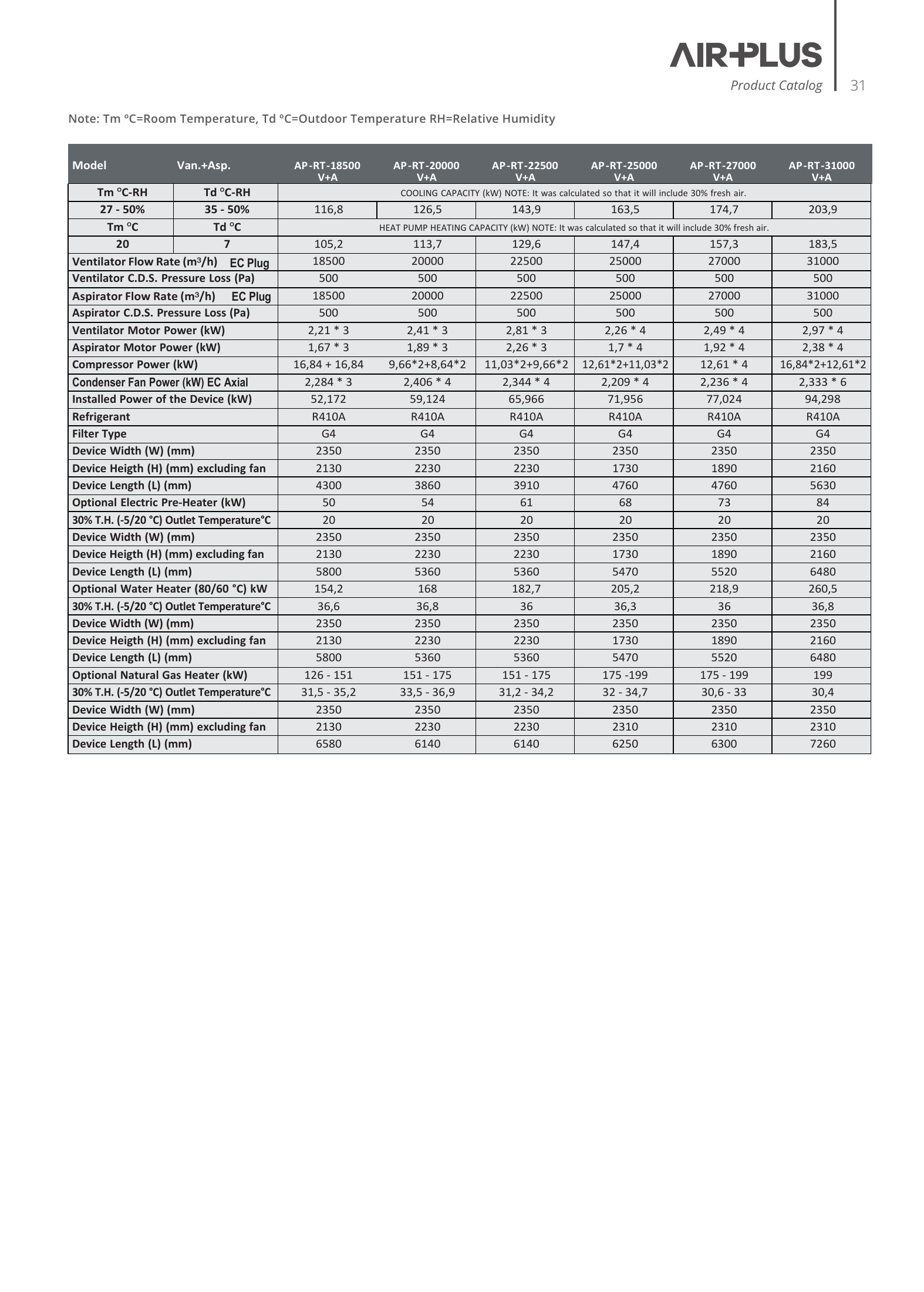

AP-RT 18500 V - 31000 V technical performance
| Parameter | AP-RT-18500 V | AP-RT-20000 V | AP-RT-22500 V | AP-RT-25000 V | AP-RT-27000 V | AP-RT-31000 V |
|---|---|---|---|---|---|---|
| Cooling Capacity (kW) - 27°C/%50 room, 35°C/%50 outdoor ambient | 116.8 | 126.5 | — | 163.5 | 174.7 | 203.9 |
| Heat Pump Heating Capacity (kW) - 20°C room, 7°C outdoor ambient | 105.2 | 113.7 | 129.6 | 147.4 | 157.3 | 183.5 |
| Unit Air Flow Rate (m³/h) | 18500 | 20000 | 22500 | 25000 | 27000 | 31000 |
| External Static Pressure (Pa) | 500 | 500 | 500 | 500 | 500 | 500 |
| Supply Fan Motor Power (kW) | 2.21 × 3 | 2.41 × 3 | 2.81 × 3 | 2.26 × 4 | 2.49 × 4 | 2.97 × 4 |
| Compressor Power (kW) | 16.84+16.84 | 9.66×2+8.64×2 | 11.03×2+9.66×2 | 12.61×2+11.03×2 | 12.61×4 | 16.84×2+12.61×2 |
| Condenser Fan Power (kW) - EC Axial | 2.284 × 3 | 2.406 × 4 | 2.344 × 4 | 2.209 × 4 | 2.236 × 4 | 2.333 × 6 |
| Installed Power (kW) | 47.162 | 53.454 | 59.186 | 65.156 | 69.344 | 84.778 |
| Refrigerant | R410A | R410A | R410A | R410A | R410A | R410A |
| Filter Type | G4 | G4 | G4 | G4 | G4 | G4 |
AP-RT 7000 V - 16000 V dimensions and heater options
| Parameter | AP-RT-7000 V | AP-RT-8500 V | AP-RT-10000 V | AP-RT-11500 V | AP-RT-13000 V | AP-RT-14000 V | AP-RT-16000 V |
|---|---|---|---|---|---|---|---|
| Standard unit W/H/L (mm) | 1950 / 1500 / 2500 | 2175 / 1500 / 2500 | 2300 / 1500 / 2500 | 2300 / 1640 / 2500 | 2300 / 1810 / 3200 | 2300 / 1870 / 3200 | 2300 / 2120 / 3200 |
| Electric pre-heater (kW) | 19 | 23 | 27 | 31 | 35 | 38 | 43 |
| Hot-water heater 80/60°C (kW) | 57.8 | 69.7 | 82.5 | 96.1 | 107.7 | 114.6 | 131 |
| Natural-gas heater (kW) | 51-61 | 61-75 | 75 | 75-100 | 100-112 | 100-112 | 112-126 |
| Natural-gas unit W/H/L (mm) | 2250 / 1500 / 3450 | 2250 / 1500 / 3450 | 2300 / 1500 / 3450 | 2300 / 1640 / 3450 | 2300 / 1810 / 4280 | 2300 / 1870 / 4280 | 2300 / 2120 / 4280 |
AP-RT Supply + Exhaust fan series general technical data
| Parameter | AP-RT-7000 V | AP-RT-8500 V | AP-RT-10000 V | AP-RT-11500 V | AP-RT-13000 V | AP-RT-14000 V | AP-RT-16000 V |
|---|---|---|---|---|---|---|---|
| Cooling Capacity (kW) | 43.7 | 51.2 | 63.1 | 71.9 | 81.8 | 87.3 | 101.8 |
| Heating Capacity (kW) | 39.36 | 46.12 | 56.84 | 64.77 | 73.69 | 78.64 | 91.71 |
| Supply Fan Air Flow (m³/h) | 7000 | 8500 | 10000 | 11500 | 13000 | 14000 | 16000 |
| Exhaust Fan Air Flow (m³/h) | 7000 | 8500 | 10000 | 11500 | 13000 | 14000 | 16000 |
| Supply Fan Motor Power (kW) | 2.66 | 1.58 × 2 | 1.88 × 2 | 2.13 × 2 | 2.44 × 2 | 2.64 × 2 | 3.17 × 2 |
| Exhaust Fan Motor Power (kW) | 2.04 | 1.12 × 2 | 1.3 × 2 | 1.54 × 2 | 1.81 × 2 | 2.04 × 2 | 2.53 × 2 |
| Installed Power (kW) | 20.036 | 22.707 | 29.396 | 32.624 | 39.799 | 41.861 | 47.717 |
AP-RRT Rotary Heat Recovery series technical summary
| Parameter | AP-RRT-7000 | AP-RRT-8500 | AP-RRT-10000 | AP-RRT-11500 | AP-RRT-13000 | AP-RRT-14000 |
|---|---|---|---|---|---|---|
| Rotary Heat Recovery Cooling Capacity (kW) | 17.56 | 21.8 | 26.34 | 31.15 | 36.22 | 37.29 |
| Evaporatör Cooling Capacity (kW) | 63.21 | 71.94 | 87.32 | 101.93 | 116.76 | 126.42 |
| Total Cooling Capacity (kW) | 80.77 | 93.74 | 113.66 | 133.08 | 152.98 | 163.71 |
| Rotary Heat Recovery Heating Capacity (kW) | 54.95 | 67.45 | 80.4 | 93.74 | 107.42 | 113.18 |
| Heat Pump Heating Capacity (kW) | 56.84 | 64.77 | 78.64 | 91.71 | 105.2 | 113.7 |
| Total Heating Capacity (kW) | 111.79 | 132.22 | 159.04 | 185.45 | 212.62 | 226.88 |
| Supply Fan Air Flow (m³/h) | 7000 | 8500 | 10000 | 11500 | 13000 | 14000 |
| Exhaust Fan Air Flow (m³/h) | 7000 | 8500 | 10000 | 11500 | 13000 | 14000 |
| Filter Type | G4 + F7 | G4 + F7 | G4 + F7 | G4 + F7 | G4 + F7 | G4 + F7 |
The table values are reproduced from the AirPlus AP-RT Rooftop Packaged Air Conditioner catalog. Final model selection must be confirmed using AirPlus selection software and technical assessment for the project and outdoor operating conditions.
