Comfort Air Handling Unit

Project-configurable AHUPlus comfort air handling unit with DX and water-cooled coil options.

AHUPlus Comfort Air Handling Unit is a project-configurable industrial-grade air handling unit offering DX and water-cooled coil options. It features hygienic internal surfaces, high-efficiency heat recovery and advanced filtration.

With 42 mm and 50 mm panel thickness, 70 kg/m³ rock wool insulation, MCC and DDC control options, it delivers energy efficiency and quiet operation.

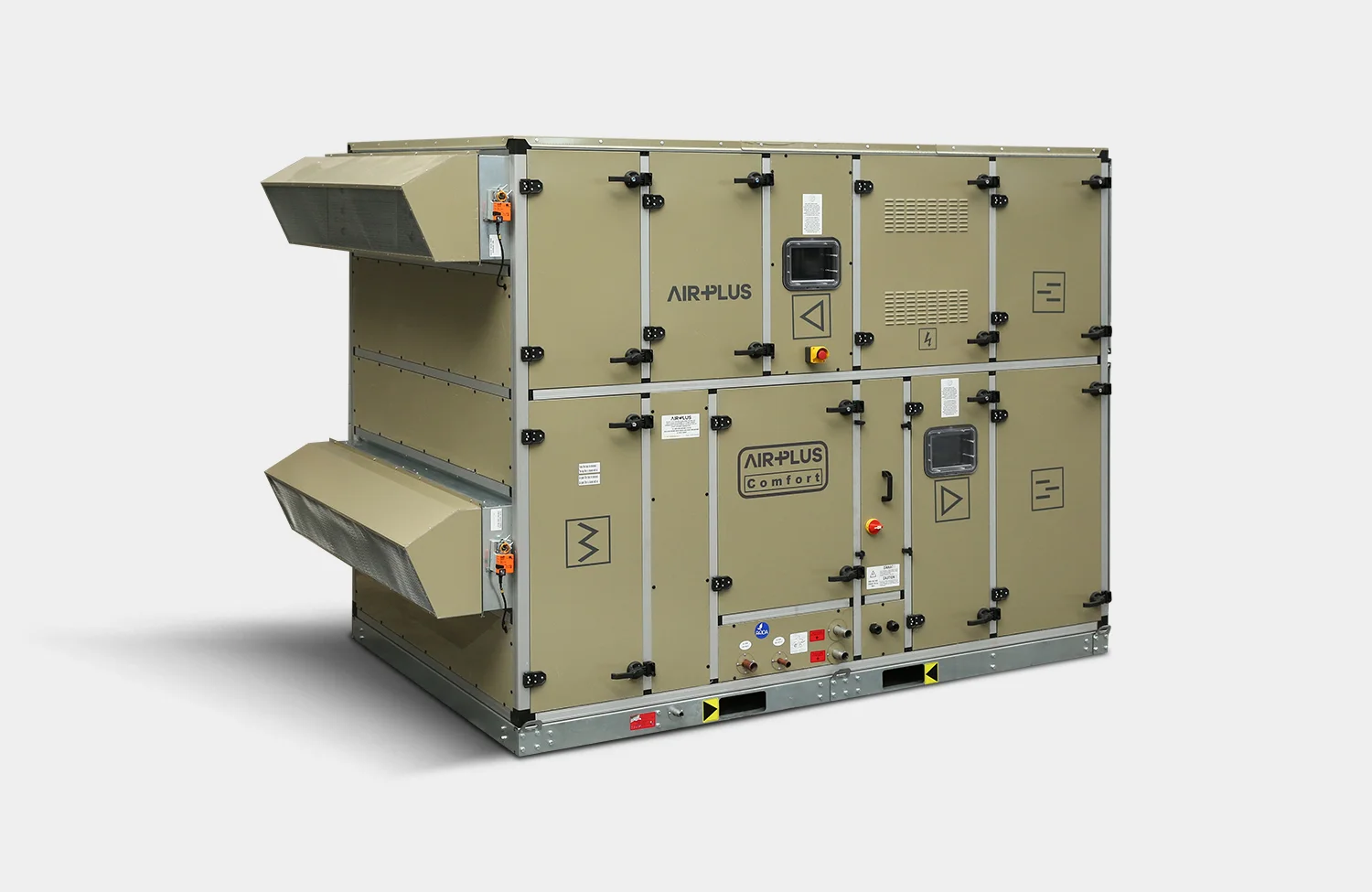

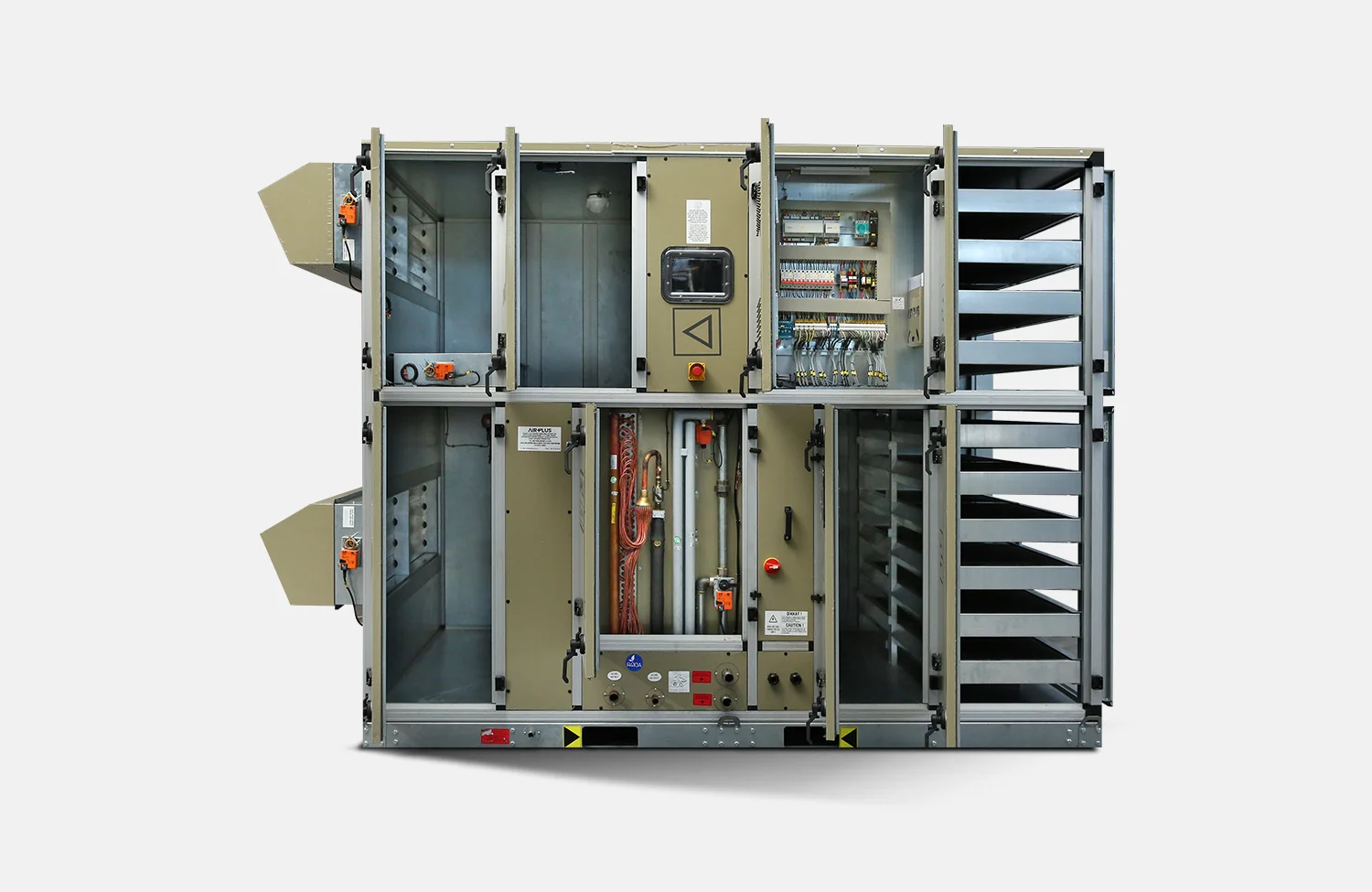

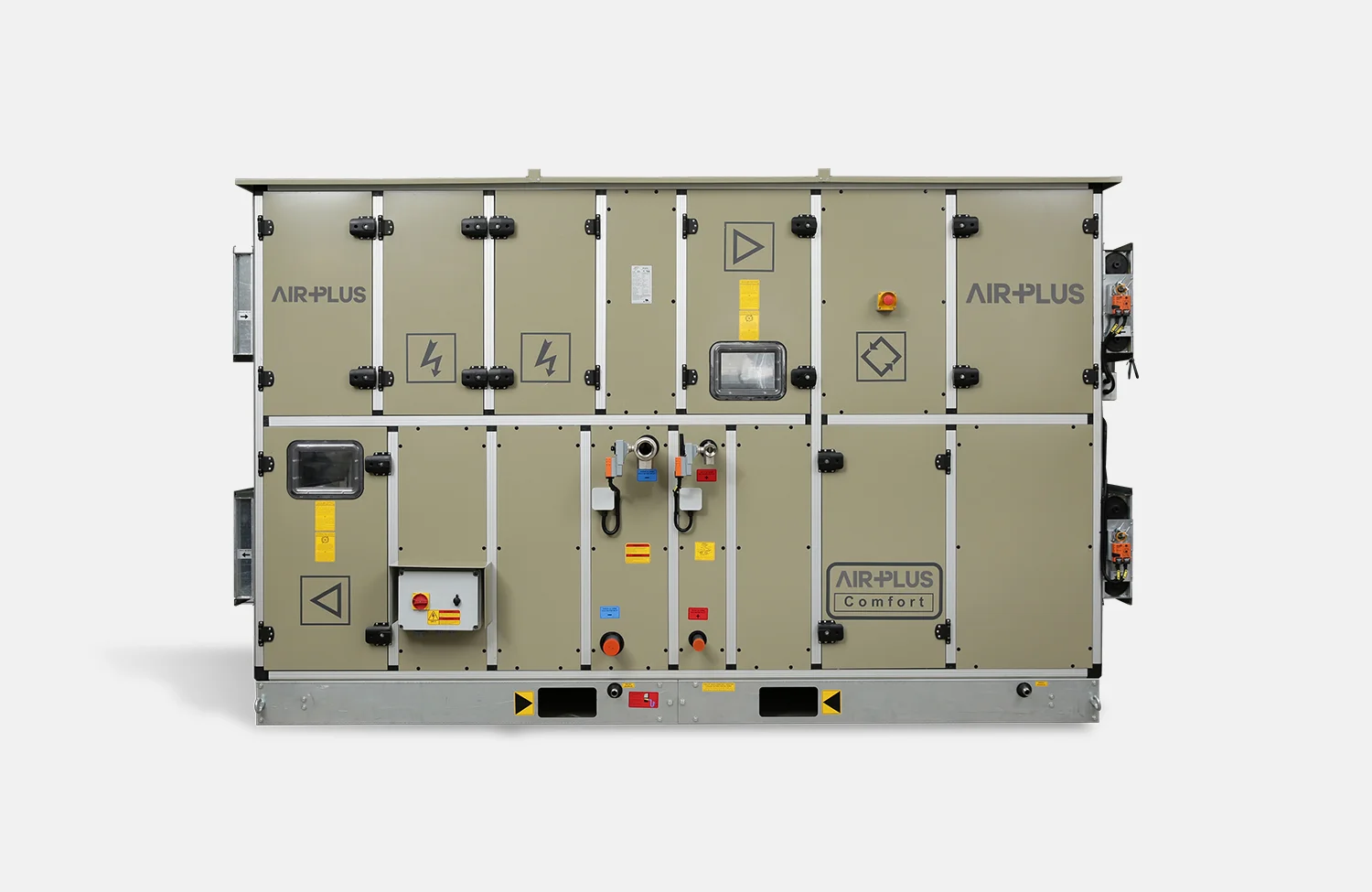

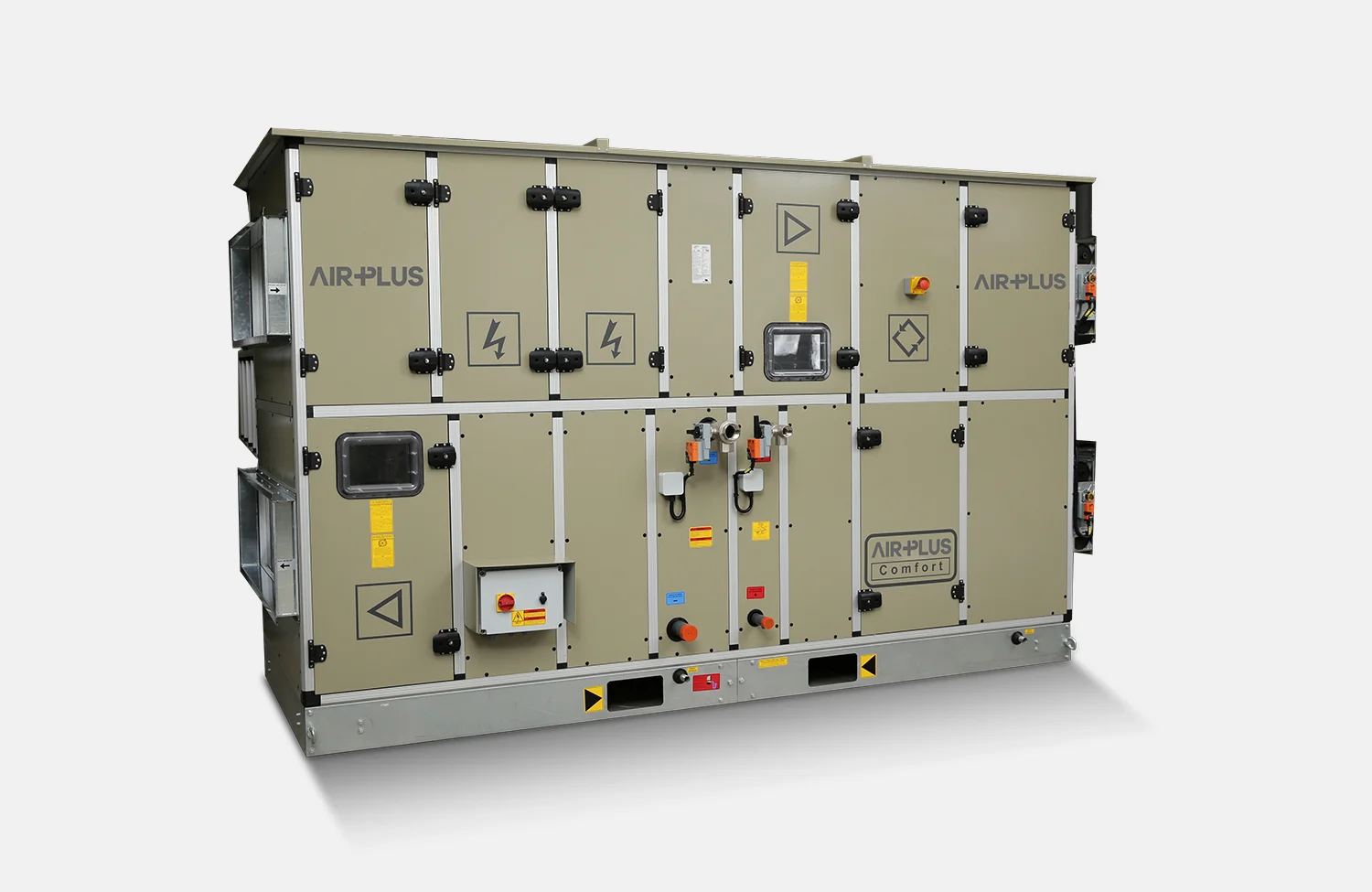

Comfort Air Handling Unit (DX / Water-Cooled)

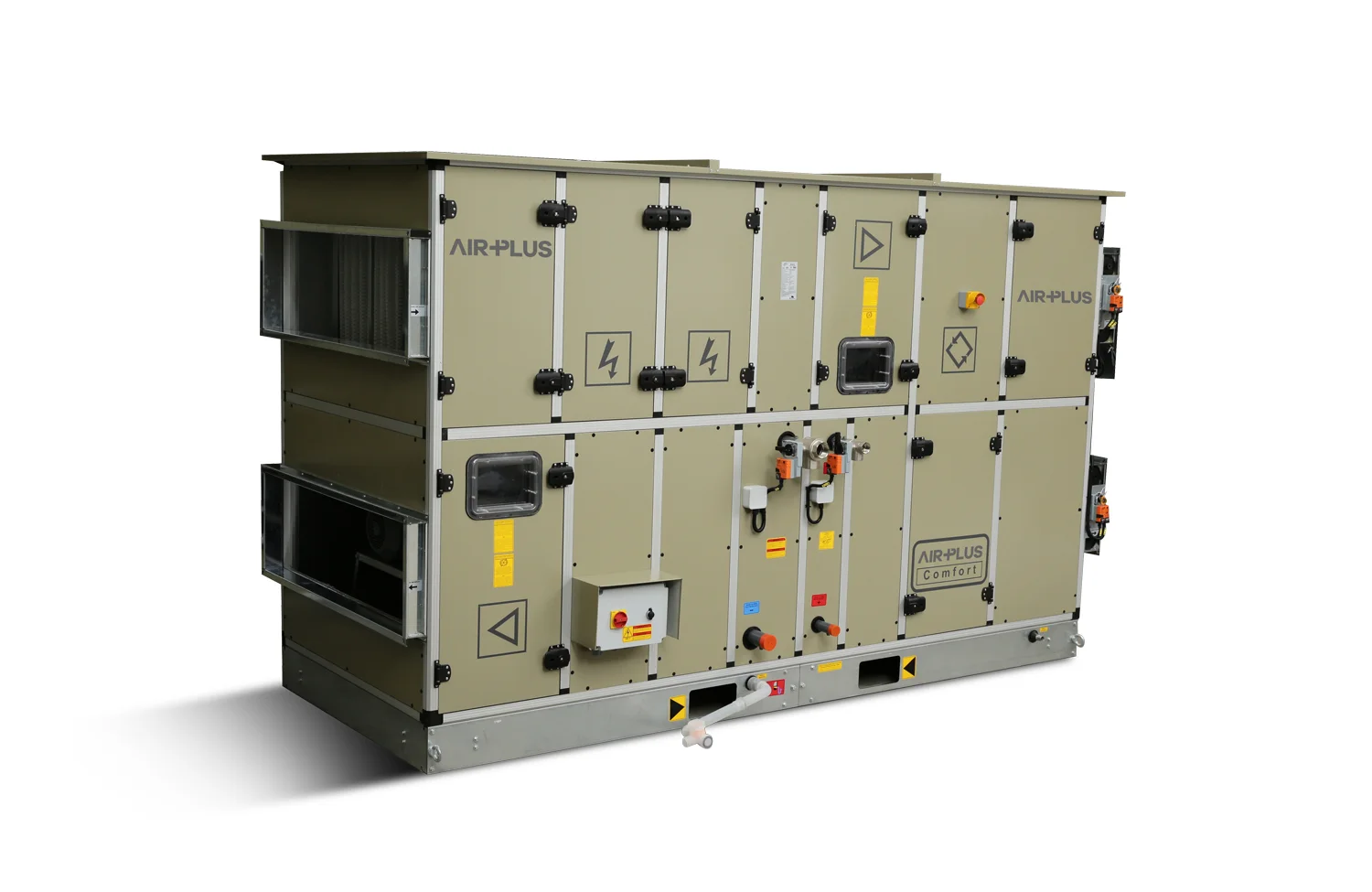

Comfort Air Handling Unit (DX / Water-Cooled) (2)

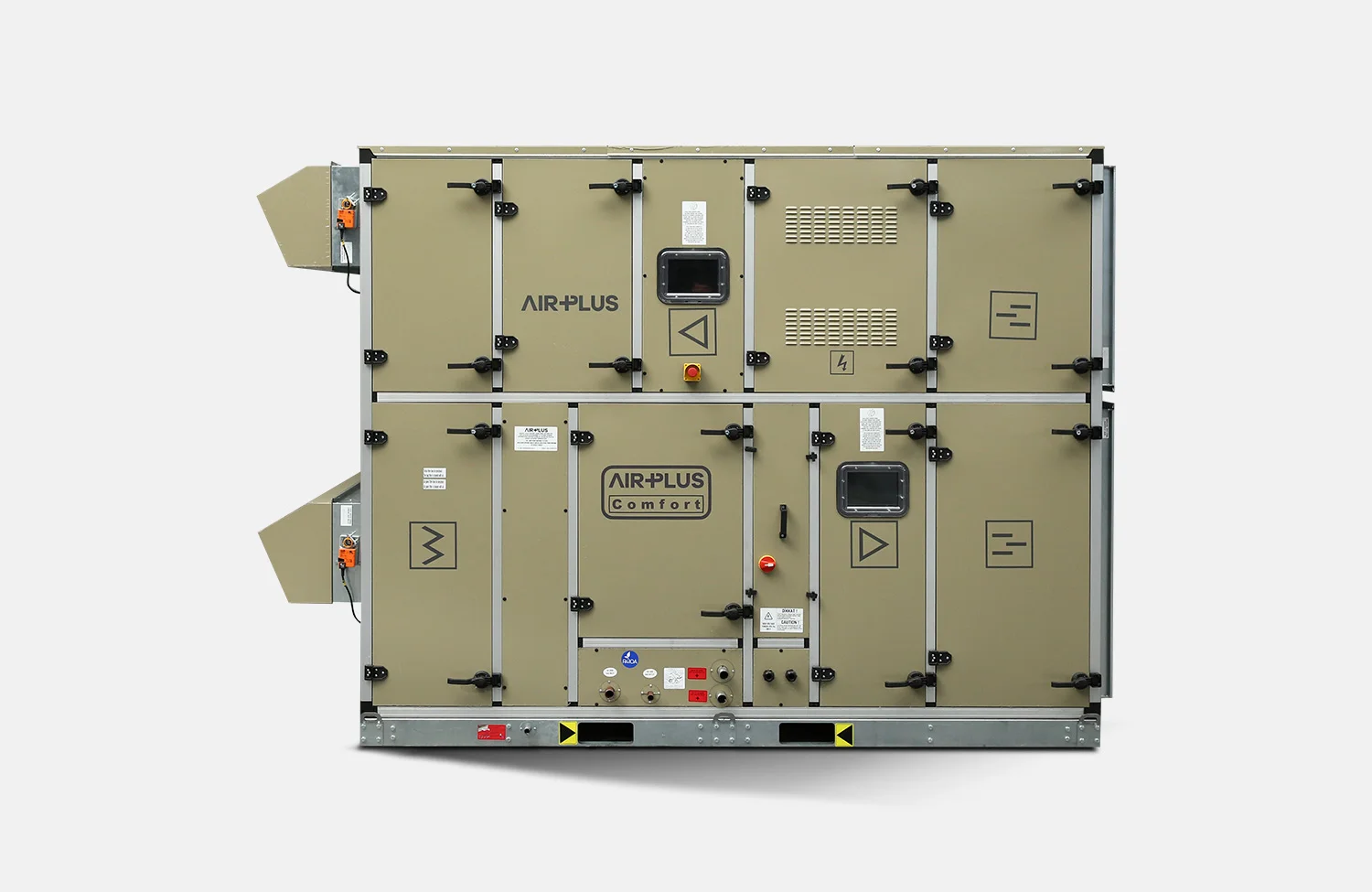

Comfort Air Handling Unit (DX / Water-Cooled) (3)

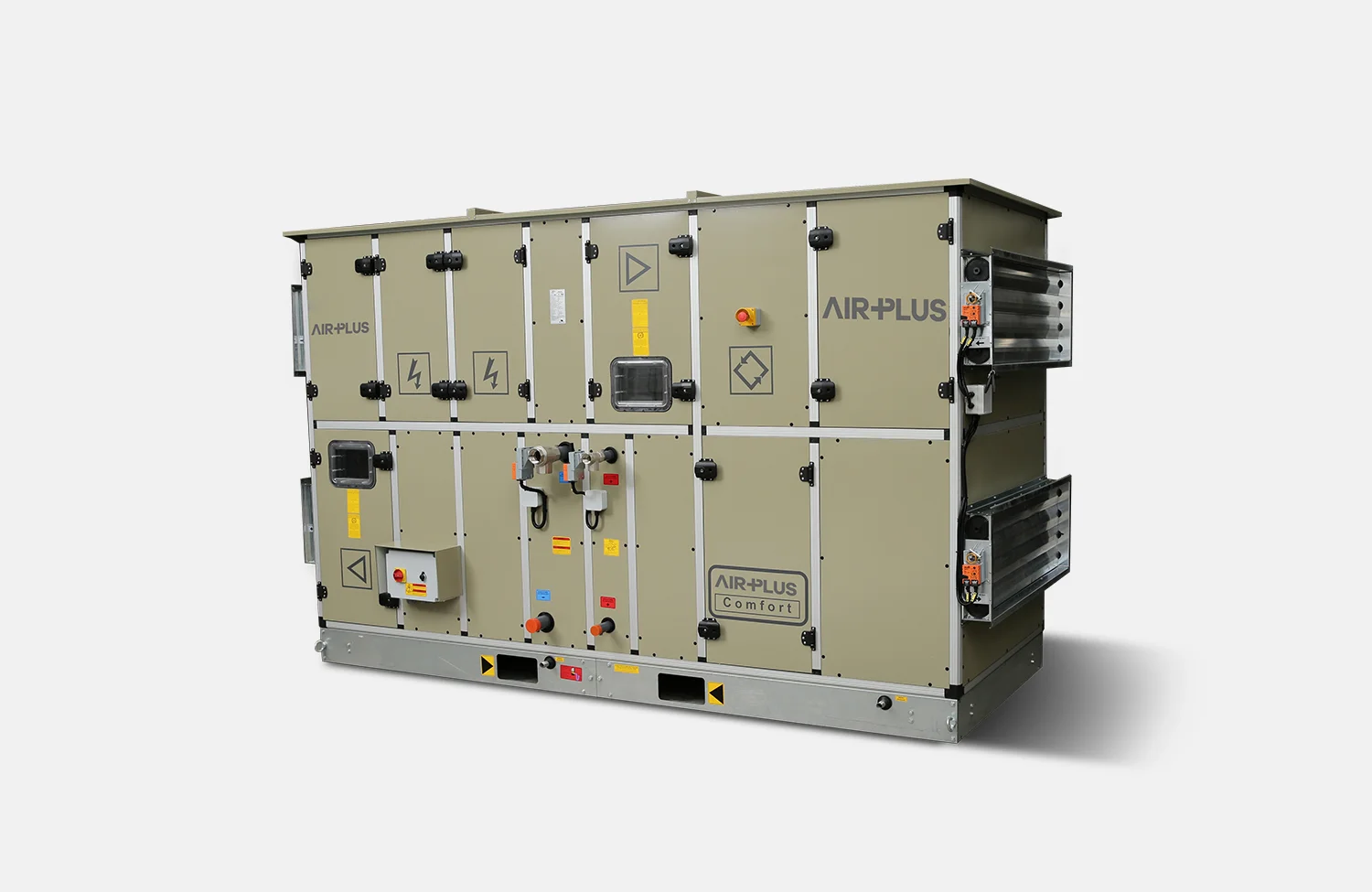

Comfort Air Handling Unit (DX / Water-Cooled) (4)

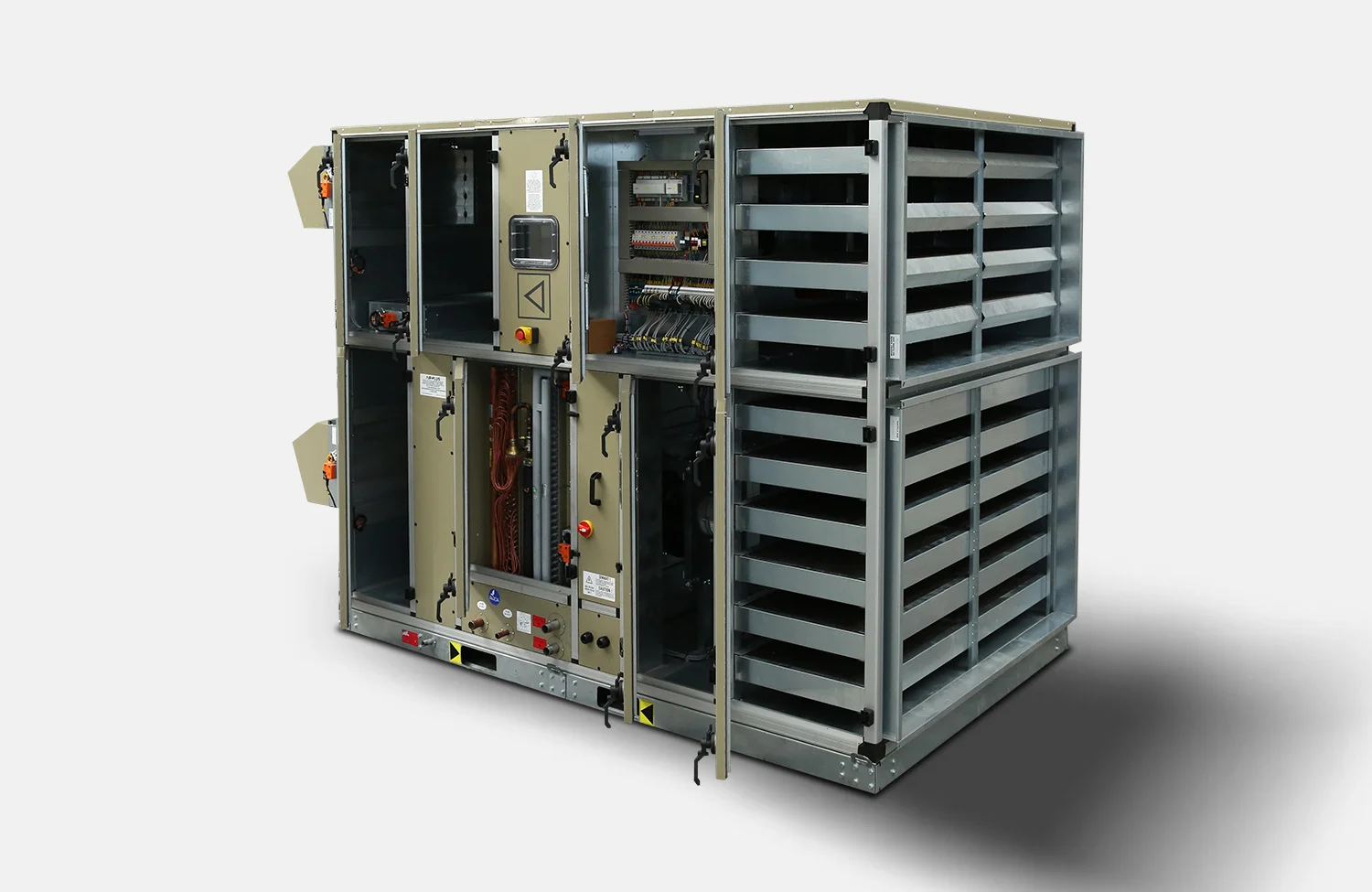

Comfort Air Handling Unit (DX / Water-Cooled) (5)

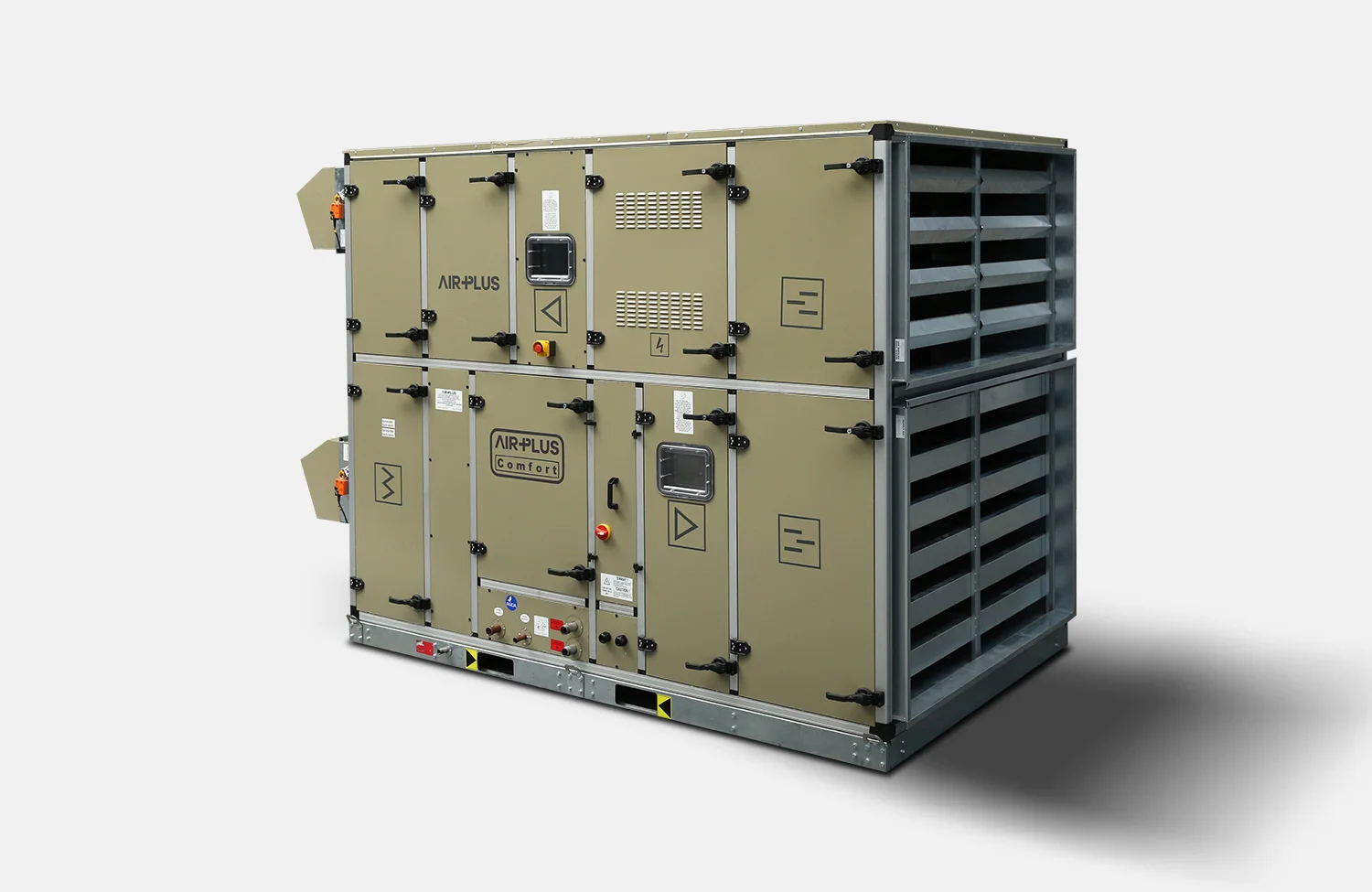

Comfort Air Handling Unit (DX / Water-Cooled) (6)

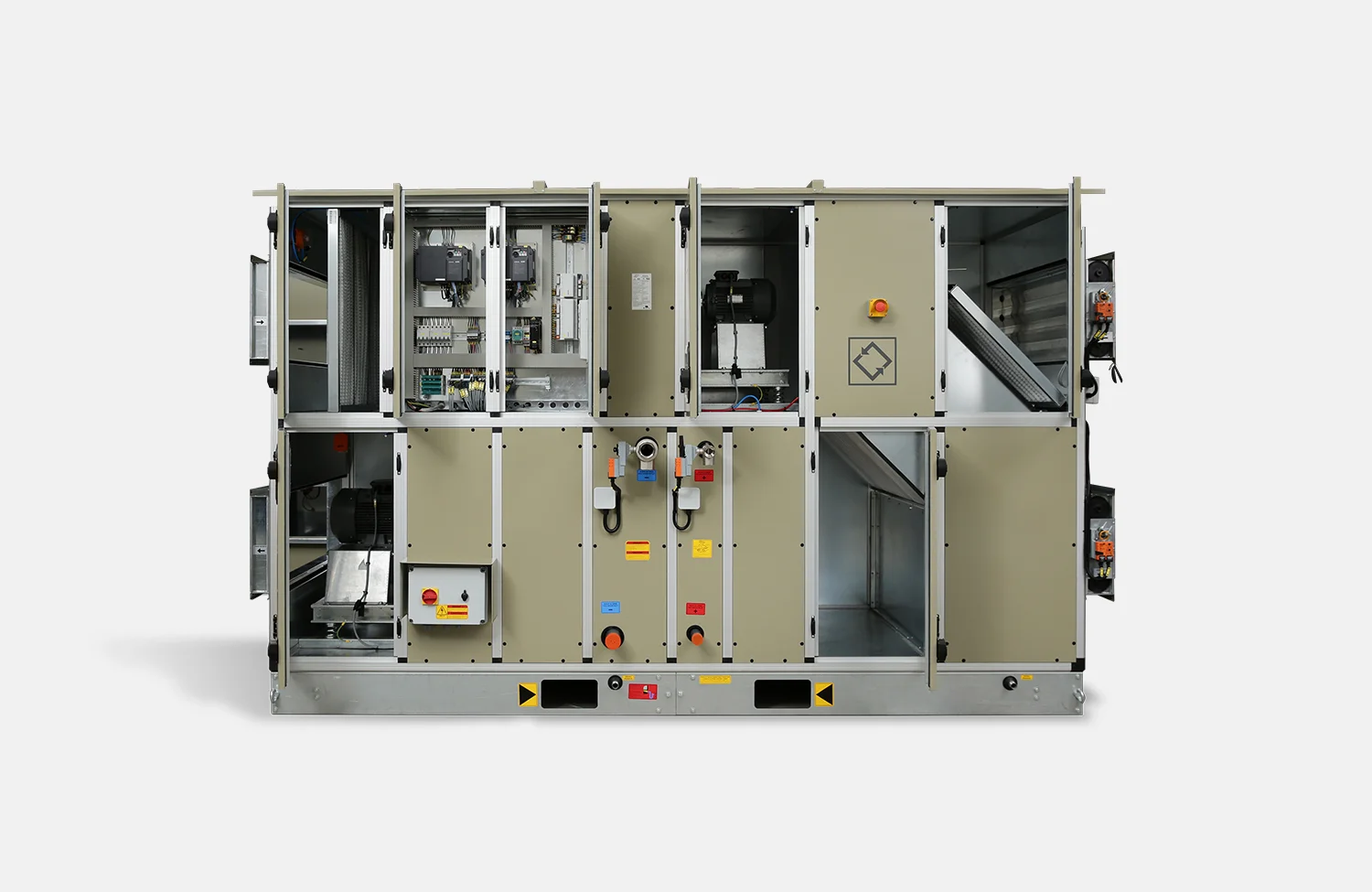

Comfort Air Handling Unit (DX / Water-Cooled) (7)

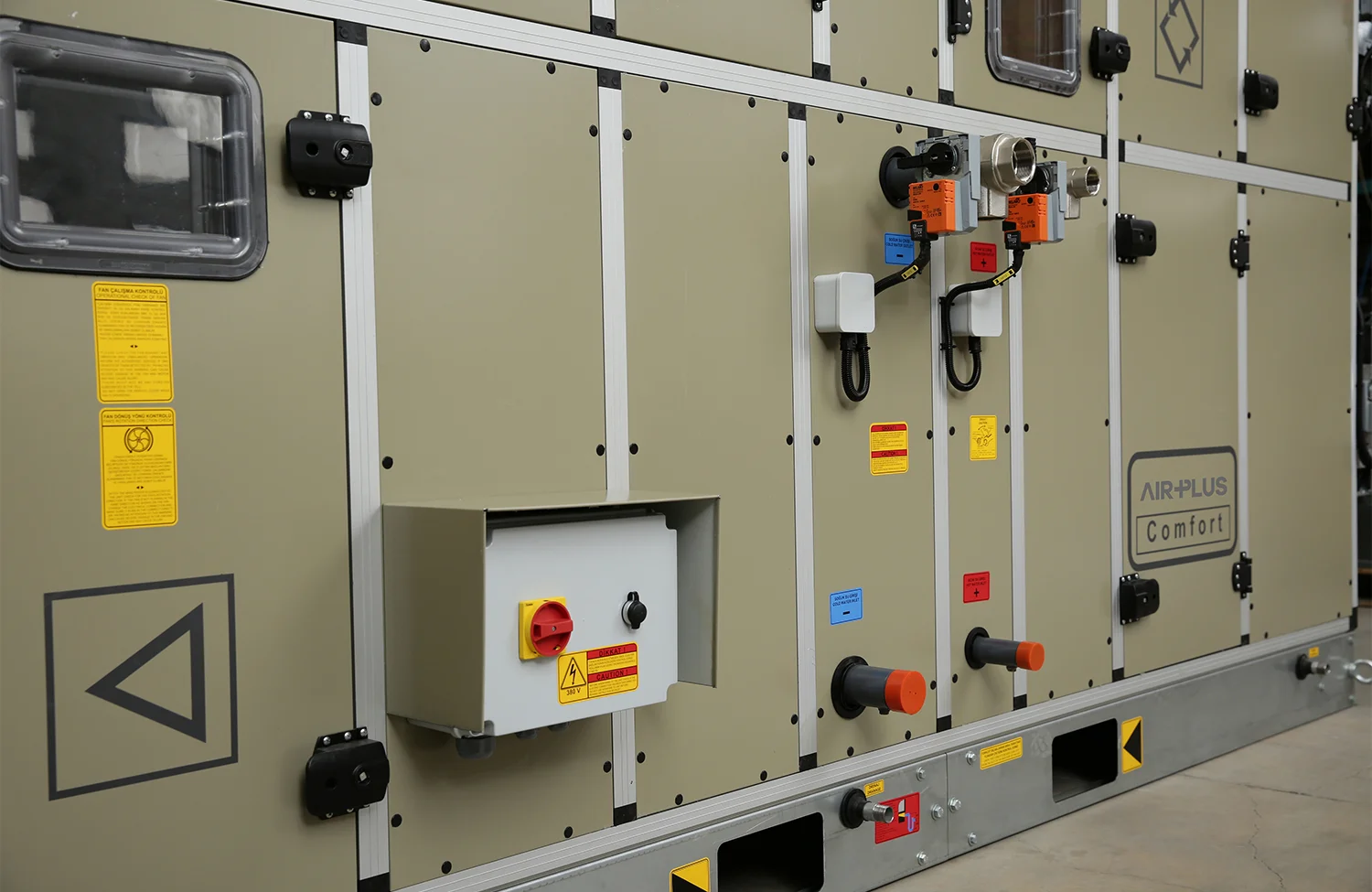

Comfort Air Handling Unit (DX / Water-Cooled) (8)
Comfort Air Handling Unit (DX / Water-Cooled) (9)
Comfort Air Handling Unit (DX / Water-Cooled) (10)
Comfort Air Handling Unit (DX / Water-Cooled) (11)
DX Outdoor Units
DX Outdoor Units (2)
DX Outdoor Units (3)
DX Outdoor Units (4)
DX Outdoor Units (5)
DX Outdoor Units (6)
DX Outdoor Units (7)
DX Outdoor Units (8)
DX Outdoor Units (9)
DX Outdoor Units (10)
DX Outdoor Units (11)

Air Handling Unit Technical Features

AHUPlus Comfort Air Handling Unit is an industrial-grade air handling unit configured per project requirements, offering hygienic internal surfaces, high-efficiency heat recovery and advanced filtration with DX and water-cooled coil options.

Air Flow Rate
1.339 - 134.991 m3/h
Panel Thickness
42 / 50 mm
Insulation
70 kg/m3 Rock Wool
Coil
DX / Water

Panel Structure

Hygienic internal surfaces with 42 mm standard and 50 mm optional panel thickness provide superior structural strength.

42 mm and 50 mm optional galvanized steel panels with hygienic coating prevent bacteria formation on internal surfaces.

70 kg/m3 Rock Wool Insulation

High-density rock wool used for thermal and acoustic insulation ensures energy efficiency and quiet operation.

High-density rock wool insulation minimizes heat loss and ensures quiet operation.

Heating and Cooling Coils

Offers flexible configuration with DX cooling or water-cooled coil options according to project requirements.

Fresh air heating/cooling, water-cooled, DX, electric and steam coil options.

Various Filter Options

Meets different hygiene and air quality requirements with coarse, bag, compact, carbon and HEPA filter options.

Coarse, bag (F5-F9), compact, activated carbon and HEPA filter options are available.

Damper and Blade System

Aerofoil design with high-strength dampers and service door provides easy maintenance.

Electrical and Automation

MCC and DDC panel options with automation integration and remote control capability.

Control and automation options

MCC Panel

DDC Control

Automation Integration

RS485 Modbus Communication

Precise Temperature Control

24/7 Monitoring and Alarm

Model-based body and dimension information

ModelExternal Width (mm)External Height (mm)Internal Width (mm)
AHUPlus-20750450670
AHUPlus-40750750670
AHUPlus-601050750970
AHUPlus-8013507501270
AHUPlus-9010501050970
AHUPlus-120135010501270
AHUPlus-150165010501570
AHUPlus-160135013501270
AHUPlus-200165013501570
AHUPlus-240195013501870

AHUPlus Comfort Air Handling Unit model technical data

Table fully expands on wide screens, scrolls horizontally on narrow screens.

Model1.5 m/s2 m/s2.5 m/s3 m/s3.5 m/s4 m/s
AHUPlus-20133917852231267731243570
AHUPlus-40242432324040484856566464
AHUPlus-60350946795849701981899359
AHUPlus-8045956126765891901072112253
AHUPlus-90508167748468101621185513549
AHUPlus-1206652887011087133051552217739
AHUPlus-15082241096513706164471918921930
AHUPlus-16087101161314516174192032323226
AHUPlus-200107671435617945215342512328712
AHUPlus-240128241709921374256492992434199

Values are air flow rate data in m3/h. Model flow capacity at different air velocities is shown in the table.

The tables show cross-section dimensions and airflow at different air velocities for the first ten models in the 08/2019 general catalog. Internal width is not unit depth; unit length depends on the project configuration.

Additional Features

Preventive Maintenance

Energy Efficiency

Ergonomic Design

Low Operating Cost

Filtration & Air Quality Control

Hygienic Design

Easy Installation & Compact Structure

Heat Recovery

Easy Maintenance & Service Access

User-Friendly Interface

High Sealing Performance & Durable Housing

Technical data — Models and specifications

Models and technical data
AHUPlus model dimensions and airflow by air velocity
ModelW (mm)H (mm)Internal W (mm)1.5 m/s (m³/h)2 m/s (m³/h)2.5 m/s (m³/h)3 m/s (m³/h)3.5 m/s (m³/h)4 m/s (m³/h)
AHUPlus-20750450670133917852231267731243570
AHUPlus-40750750670242432324040484856566464
AHUPlus-601050750970350946795849701981899359
AHUPlus-801350750127045956126765891901072112253
AHUPlus-9010501050970508167748468101621185513549
AHUPlus-1201350105012706652887011087133051552217739
AHUPlus-15016501050157082241096513706164471918921930
AHUPlus-16013501350127087101161314516174192032323226
AHUPlus-200165013501570107671435617945215342512328712
AHUPlus-240195013501870128241709921374256492992434199
AHUPlus-250165016501570133101774722184266213105835495
AHUPlus-280230013502220152252030025375304503552440599
AHUPlus-300195016501870158542113826423317083699242277
AHUPlus-360195019501870188832517831472377674406150355
AHUPlus-420230019502220224182989037363448355230859780
AHUPlus-480260019502520254473392942412508945937667859
AHUPlus-490230023002220266133548444356532276209870969
AHUPlus-560260023002520302104028050350604207048980559
AHUPlus-600320019503120315064200852510630127351384015
AHUPlus-640260026002520342924572357154685848001591446
AHUPlus-700320023003120374034987062338748058727399740
AHUPlus-8003200260031204245756609707628491499066113219
AHUPlus-960380026003720506226749684370101244118117134991

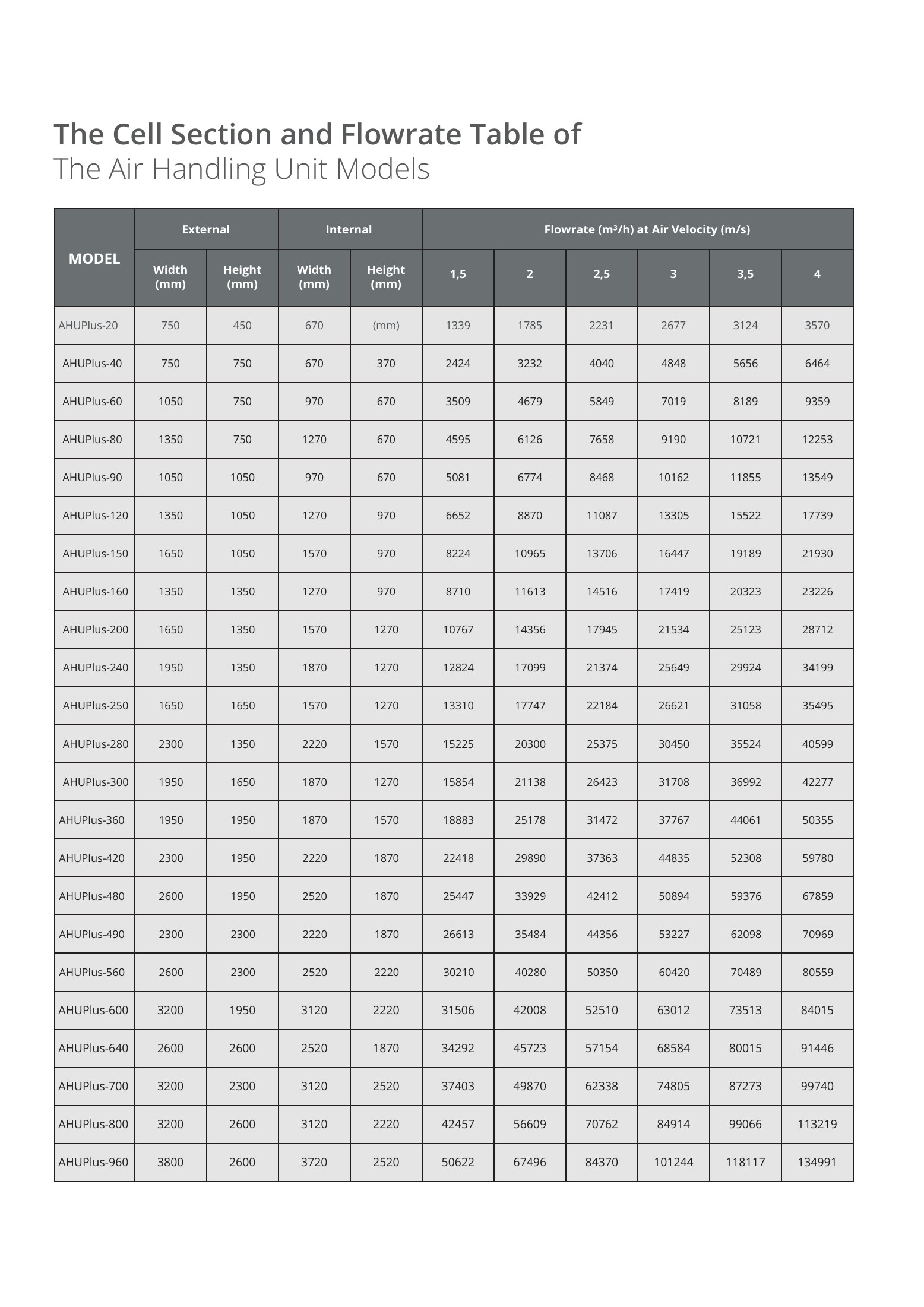

Technical drawings and catalogue data 1
Technical drawings and catalogue data 1
