DX BATTERY CEILING TYPE HEAT RECOVERY DEVICE
  • DX BATTERY CEILING TYPE HEAT RECOVERY DEVICE
  • DX BATTERY CEILING TYPE HEAT RECOVERY DEVICE
  • DX BATTERY CEILING TYPE HEAT RECOVERY DEVICE

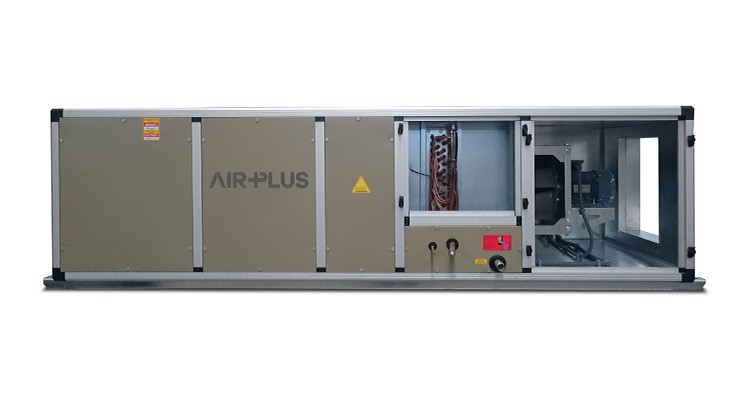

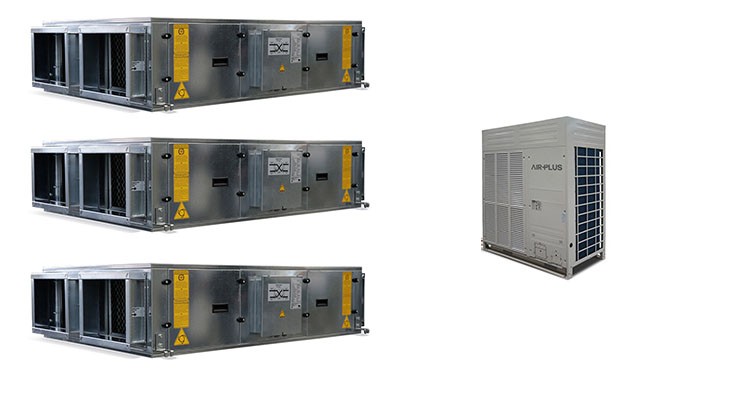

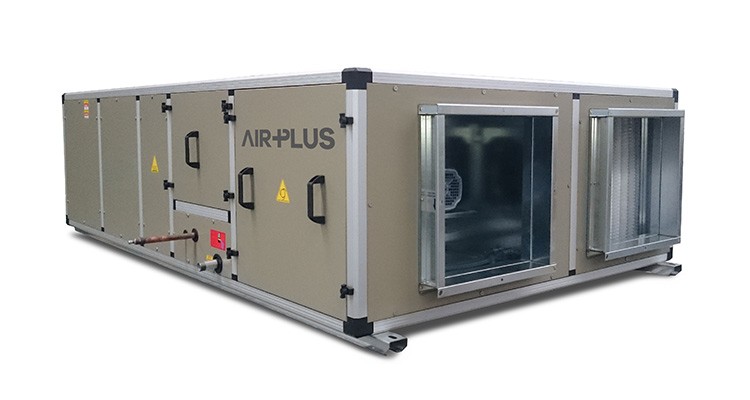

DX Coil Ceiling Type Heat Recovery Devices are devices designed to meet the exhaust and fresh air needs in indoor spaces, providing energy saving by recovering heat energy without mixing the exhaust air with the fresh air, thanks to its special plate heat exchanger and with the help of the fans inside. It is designed to meet the need for 100% fresh air. This device works with high COP and EER values ​​thanks to its VRF outdoor units.

An efficient heat transfer is provided between warm and cold air currents with aluminum plate heat exchangers with high performance and thermal conductivity.

They are devices that provide the need for fresh air in addition to the energy saving advantage in workplaces, banks, offices, hotels, houses, cinemas, fair-exhibition areas, hospitals, restaurants and places where such high-density exhaust is required.

It is produced as 9 standard models in the range of 500 m³/h - 5000 m³/h air flow. The produced models are designed in such a way that they can be easily installed and maintained at a height that can be placed in the suspended ceiling.


Technical Values and Dimensions of HRV-DX Plus Heat Recovery Fresh Air Device

Air Flow

m³/h

750

1000

1500

2000

3000

3500

5000

External Static Pressure

Pa

100

120

200

100

100

130

100

voltage

V

230

230

230

230

230

230

230

Power

w

260

370

1030

1030

1360

1360

2600

Current

A

1,2

1,7

4,5

4,5

6,0

6,0

11,4

Cooling Capacity

kW

5,6

9,0

11,2

14,0

22,4

25,0

28,0

Heating Capacity

kW

6,3

10,0

12,5

15,5

25,0

28,0

31,4

Noise Volume

dB(A)

46

46

51

50

47

47

52

Length (L)

mm

1430

1430

1620

1620

1950

2050

2100

Width (W)

mm

800

800

1000

1000

1150

1200

1400

Heigth (H)

mm

370

370

370

370

560

600

750

Channel Connetion

mm

280x250

280x250

350x250

350x250

400x350

450x400

450x400

Weight

Kg

80

85

105

125

190

215

305
