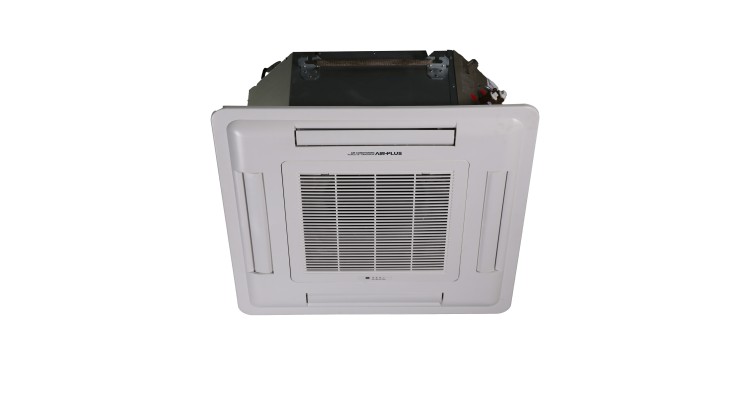

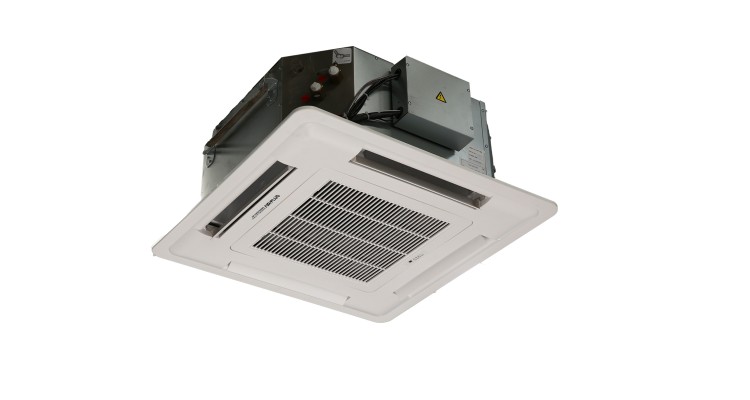

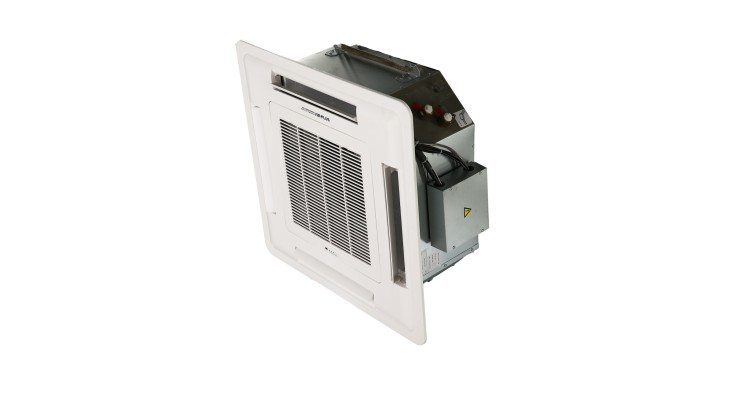

FOUR-WAY BLOWING CASSETTE TYPE

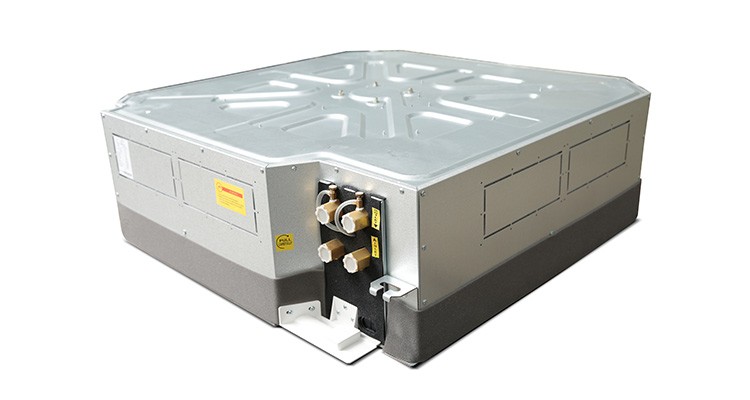

The body is made of high quality galvanized steel. Thanks to the integrated blister process, no water leakage is ensured as there is no unwelded spot. It is fully foamed using EPS material and adhered to the drain pan. It looks elegant and is light, mostly thanks to the use of non-metal materials.

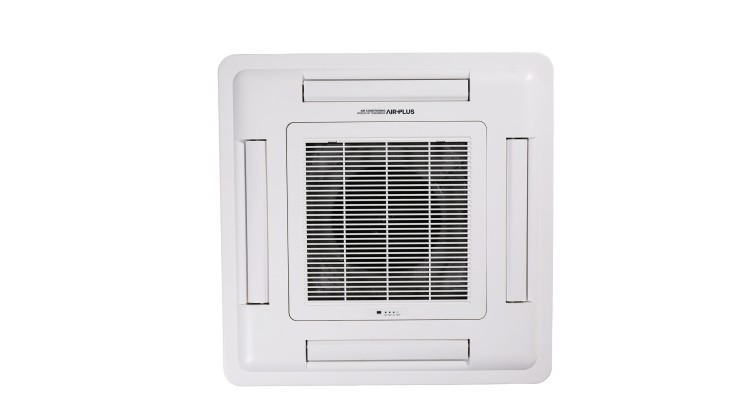

4-way air supply, suction grille, panel frame and adjustable on both sides,Multi-air supply make the room temperature much more regular and comfortable.
The battery is designed with battery selection software and tested in the factory performance testing lab to ensure performance. A continuous high-density Integral type "C" shaped heat exchanger is used, driven by the double bent coil design, preventing the space temperature difference caused by the double uneven internal air mixture, making the indoor air temperature uniform. The battery design is counter flow, which provides higher efficiency.
The battery is made of high quality 9.52 mm (diameter) copper tube and aluminum fin with high-impact hydrophilic coating. Advanced pipe expansion process is used, which makes the copper tube and fins touch each other best, and also adopts large diameter and low noise fan blower to make sure the best heat transfer efficiency. The head is made of brass, and thanks to its design, the water flow is evenly distributed and less head loss, which improves the heat exchange performance. Due to the good matching of the fan blower and the newly designed air deflector, the performance is improved by 15%.

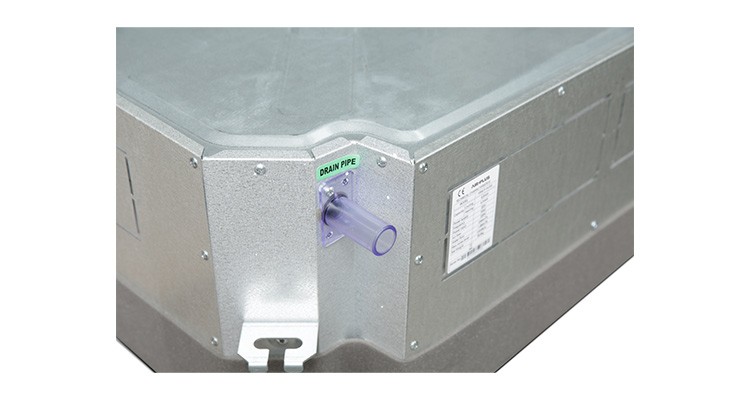

Condensate drain pan: The bubble process is used, and after heating, it is connected with the high-density E foam drain pan into an organic whole. Drain pan and EPS foam are made of fire resistant material.
Condensate drainage pump: Intelligent high-lift condensate drainage pump can provide 750mm water height, which makes the drainage pipe laying more convenient and ensures good drainage performance.
After the water rises to a certain position, the float switch will actuate and alarm, then the unit will shut off the water valve or stop the fan motor.
Motor: Using large diameter vortex centrifugal fan ensures low noise operation and energy saving. Three-dimensional large inclination angle spiral blades and bearing motor are used. It uses hardened and tempered steel on the motor shaft with anti-corrosion, which ensures longer service life, high efficiency and low noise. Also good EPS foam helps absorb noise
