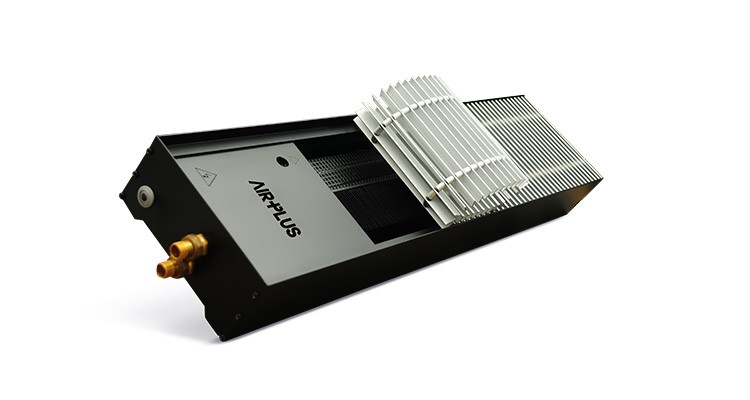

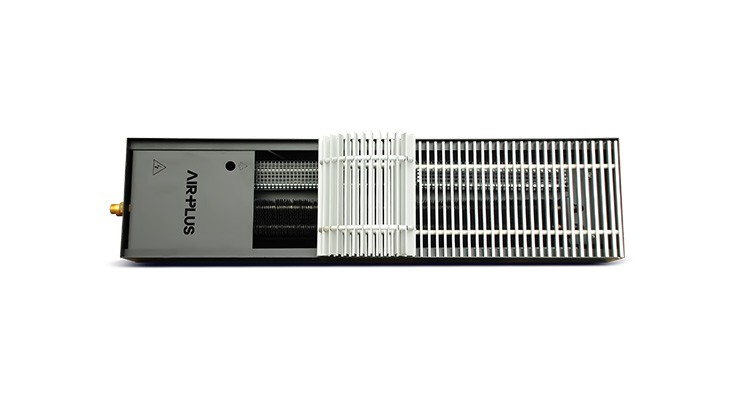

IN-FLOOR FANLESS FLOOR CONVECTOR
The linear grille and convector casing of the product are manufactured from aluminum profiles with high corrosion resistance. Optional aluminum frame is available.
Heating coils are as standard with copper tube and aluminum fin type, with mirror made of galvanized steel sheet and with a fixed brass union 1/2” internal threaded outlet outside the case. Coils, 1/2” diameter copper pipes are mechanically inflated and produced in such a way that tight contact with the lamella collars is provided.
Coils are manufactured in 40x35 mm geometric molds with a pitch range of 6 mm. Discharge and air vent valves in the coils are located on the fixed brass union outside the casing. Thus, the water contact inside the case is cut off and it is prevented from damaging the electrical components. The coils are mounted on steel legs so that they can be removed after the pipe connections are removed.
The fans used in convectors are single speed tangential fans with low noise level, 30 mm rotor diameter and 230V voltage. It can optionally be used in tangential fans with 24V voltage. Fan power cable ends are located inside the case by connecting to the terminal block. Thermal relay and fuse-protected city line electricity is attached to the terminal block by means of the connector on the case, and the electricity required for the fan is supplied. Optional room panel and electronic controller can be used. Thus, the motorized valve (on/off) in the battery and the speed of the tangential fan (3 stages) can be controlled.
AP.MFC series floor convectors are modern heating equipments that supplement the underfloor heating system. Radiator, floor heating, air handling unit etc. can work with. No wall space is required during assembly. Thanks to the fan, the heating capacity and blowing distance have been increased. It is placed in the flooring slot, it is covered with a stylish and foldable linear grille by means of a special spring inside. Especially with the mechanical strength of the linear grille parallel to the short side, it can be used comfortably in every area of your application and you can move on it safely. In all convector cases, there are leveling set screw bolts inside the case for ease of application.
Floor convectors can be used in any place with glass curtain wall such as showrooms, winter gardens, indoor sports fields, business centers, conservatories, public spaces, banks, residences.
Mini fan floor convectors can be designed as primary or secondary heating system. They are mostly used in cases where the space heat loss is from the glass surface. They form an air curtain on the glass surface with the heated air.
Mini fan floor convectors have minimum height and maximum capacity. Due to its 85 mm height, it offers perfect solutions for apartments or mezzanine floors in multi-storey buildings.
